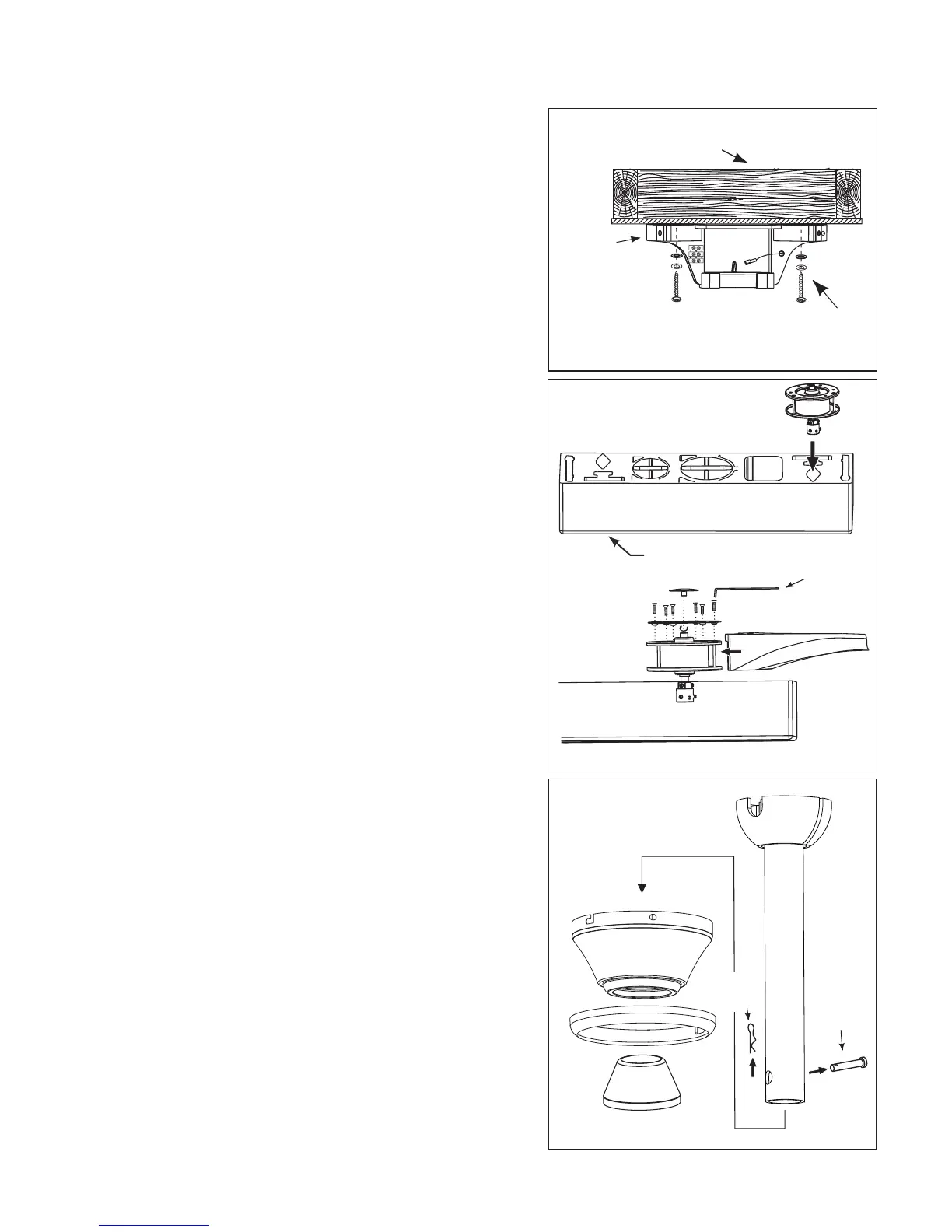

HOW TO INSTALL THE FAN
Figure 2
Lag Bolt/ Flat Washer/
Spring Washer
Ceiling joist
Hanger
Bracket
1. Securely attach the hanger bracket to the
ceiling joist using the lag bolts, flat washers and
lock washers supplied.
Pre-install two canopy screws on the opposite
sides of the hanger bracket. (Do not tighten)
(Figure 2)
Bottom Styrofoam
Hex Key
Figure 3
Clevis
pin
Hairpin
Clip
Figure 4
3
2
P
. Take out both styrofoams from box.
3. ut the fan motor assembly on the bottom
styrofoam.
4. Use hex key to install fan blades.
(Figure 3)
5. Uninstall the clevis pin from the downrod,
retain the clevis pin and hairpin clip for later.
6. Install the canopy, canopy ring and motor
coupling cover through downrod.
