VAM KOA - Assembly Drawing and Parts List; Parts Identification; Assembly Diagram Overview

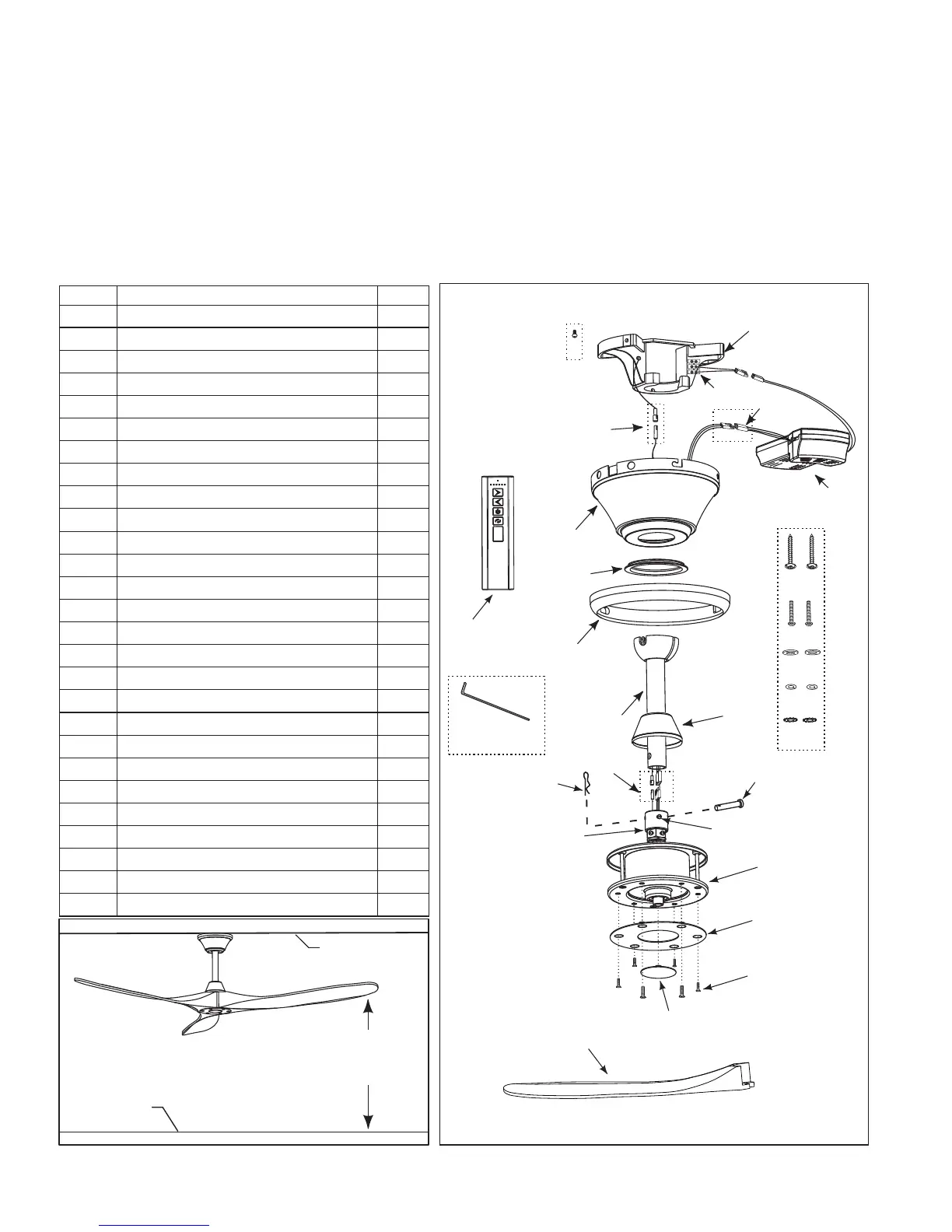

Assembly Drawing
Figure 1
Parts List
22b
22a
1
2
5
3
ASSEMBLY DRAWING & PARTS LIST
Unpacking Your Fan
Unpack your fan and check the contents. Please check each item prior to installation.
To reduce the chance of marks or possible damages, please remove the parts when
required for installation.
14
15
11
19
12
7
8
9
10
13
16
17
18
21
20
Ref.#
Description
Part#
1
Hanger Bracket
1
2
Canopy Screw
4
3
Terminal Block
1
4
Earth Wire
1
5
Fan Wire
1
6
Receiver Unit
1
7
Canopy
1
8
Canopy Screw Cover
1
9
Canopy Ring
1
10
Down Rod and Hanger Ball
1
11
Motor Coupling Cover
1
12
Downrod Support
1
13
Downrod Support Screw
2
14
Clevis Pin
1
15
Hairpin Clip
1
16
Motor Assembly
1
17
Blade Cover
1
18
Blade Screw
6
19
Bottom Decoration Plate
1
20
Blade
3
21
Remote Control
1
22a
Lag Bolt
2
22b
Machine Screw
2
22c
Flat Washer
2
22d
Spring Washer
2
22e
Lock Washer
2
23
Hex Key
1
4
6
22c
22d
2
5
23
Ceiling
No
less than
230cm
Floor
22e
