VAM KOA - Wiring Connections; Canopy Installation

HOW TO INSTALL THE FAN
16
Terminal Block located on the hanger bracket.

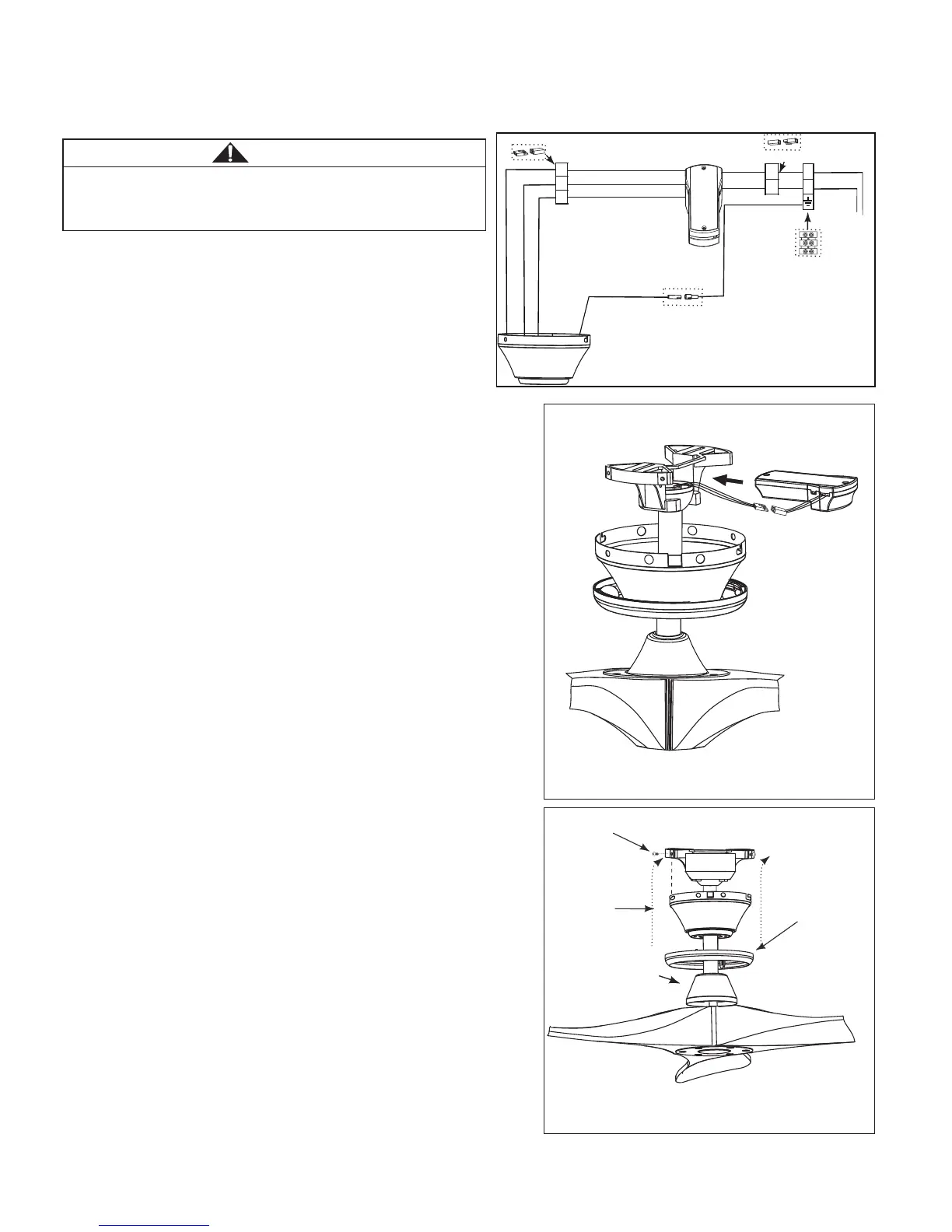

17. Connections:
- Brown fan wire is connected to the Live
supply.
- Blue fan wire is connected to the Neutral
supply.
- Green/yellow fan wire is connected to the
Earth supply.
18. Connect the Fan wires from the downrod to
the 3P plug from the Receiver.
19. Connect the 2P plug from Receiver to the
3P plug from the terminal block.
(Figure 9)
. Connect 240V main power (dwelling) to the
Figure 9
Brown
Blue
Motor V - Purple
Motor W - Brown
To Motor V - Purple
To Motor U - Red
To Motor W - Brown
220-240 Vac SUPPLY
(User Supplied)
N
L
AC IN - N
AC IN - L
Green/yellow
1P plug
3P plug
EARTH
Green/Yellow
Terminal Block
on Bracket
Motor U - Red
2P plug
5
20. Install the receiver into the hanger bracket,
above the hanger ball.
(Figure 10)
Canopy
Screw
Figure 11
Canopy
Ring
Canopy
Coupling Cover
21. Slide the canopy up to the mounting bracket
and place the key hole slots on canopy over
the two screws on the mounting bracket.
22. Rotate the canopy until the screws head locks
in place.
23. Re-tighten the 2 screws and reinstall the other
2 screws.
24. Install the canopy ring by pushing it up to the
canopy.
(Figure 11)
Figure 10
Before commencing installation, turn off electricity supply
at the main power box or disconnect power by removing
fuse or turning off circuit breaker.
WARNING
