Adjustments to be done by dealer

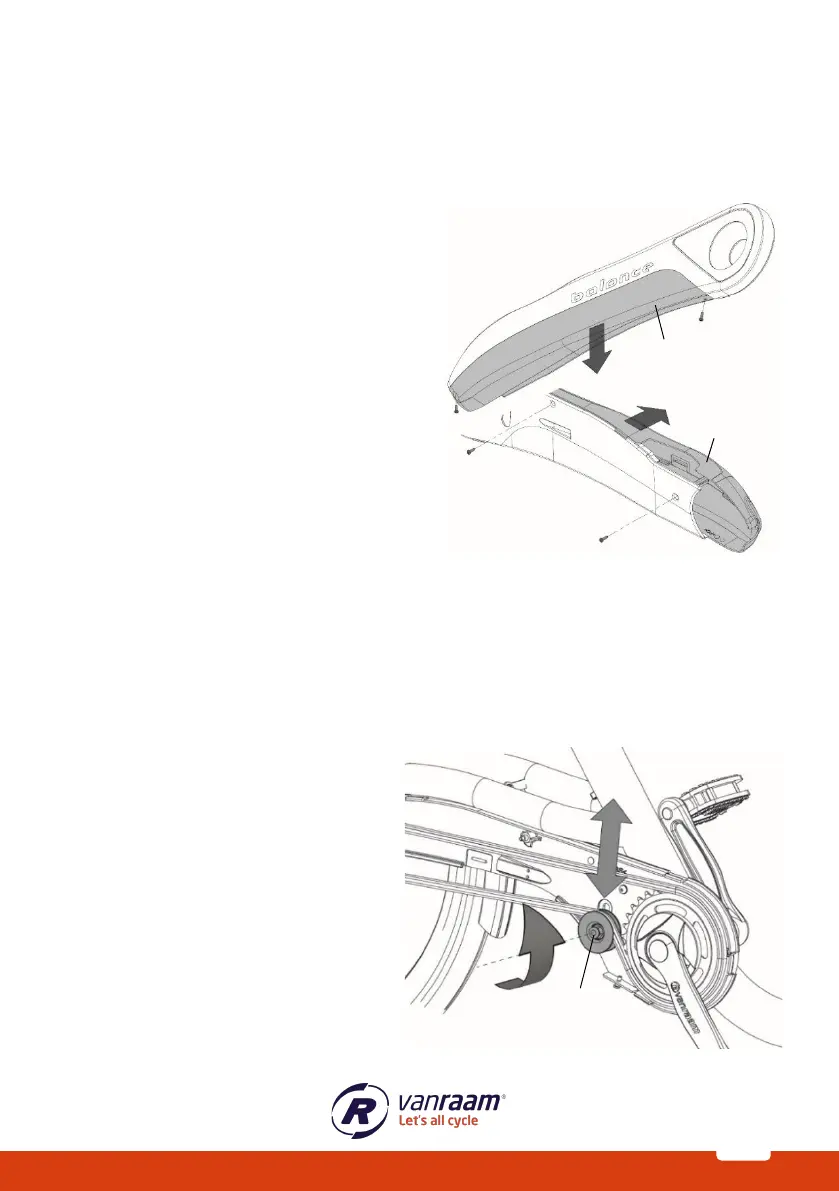

Chain guard removal
To reach the chain for maintenance, the chain guard must be removed. To do this, follow the
next steps:
1. Using a Torx screwdriver, remove the
2 screws at the bottom of the
transparent chain guard part [A].
2. Pull the transparent chain guard part
[A] downward to remove it.
3. Next, remove the Torx screws on the
back of the chain guard.
4. After this, the front of the chain guard
[B] can be removed by pulling it
forwards.
Setting chain tension
The chain should not be too tight. It should be able to have movement. Without force, the
chain should be able to move up and down about half a centimetre.
To adjust the chain to the correct tension, follow the next steps:
1. Loosen the chain tensioner
wheel nut [A] a few turns. Use a
spanner on the back to prevent
the nut from turning along with
it.
2. Bring the chain to the correct
tension by pushing the
tensioning wheel [A] up or
down.
3. When the chain has the correct
tension, retighten the nut.
