Seat depth
The seating area of the seat can be adjusted to tailor
the seat to the user's comfort. In order to adjust the
seat, follow these steps:

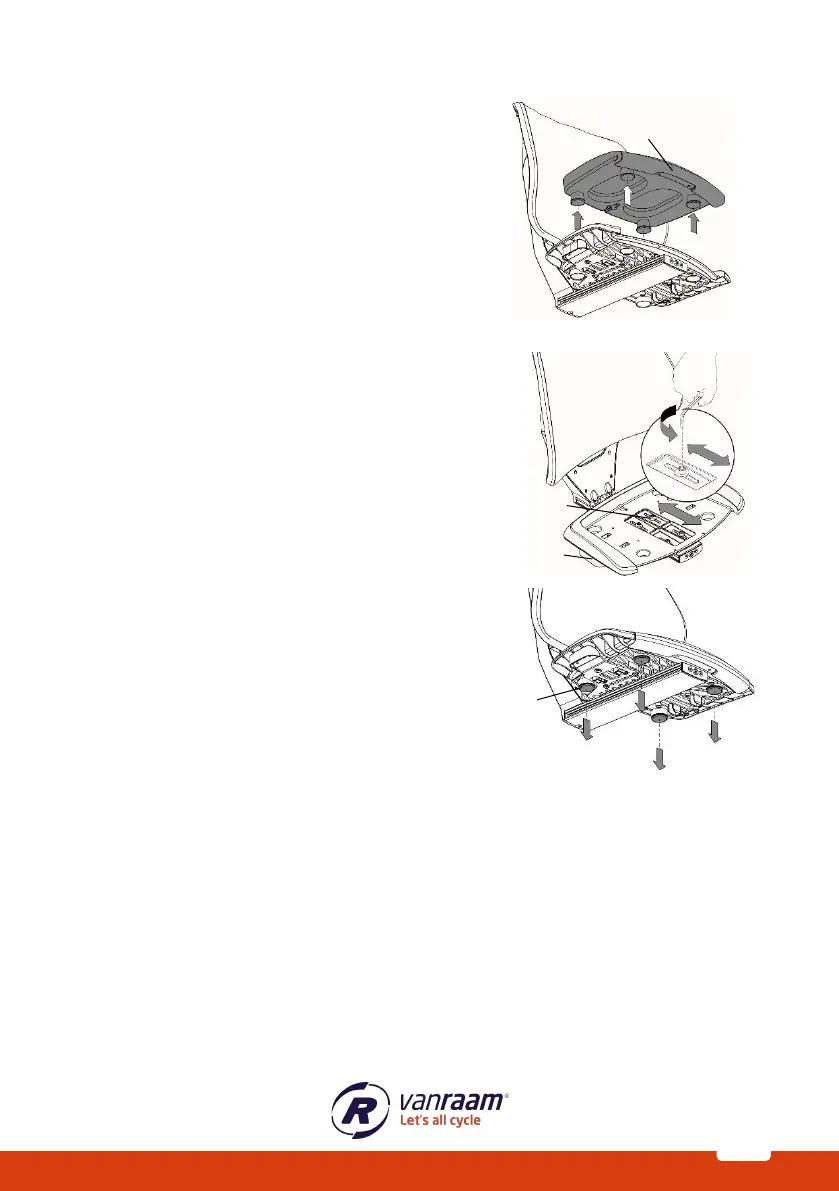

1. Remove the seat cushion [A] from the seat
frame.
2. Now that the seat cushion has been
removed, the seat frame can be adjusted in
relation to the backrest. To do this, loosen
the 4 socket head screws [B] a few turns.
3. Slide the seat frame forwards or
backwards.
4. Tighten the 4 socket-head screws [B].
5. Place the seat cushion by first sliding the
front edge over the seat frame. Then push
the 4 snap covers into the holes.
Caution! Adjusting the seat depth affects the
minimum and maximum inside leg length for the
bike.
