Version 23.05

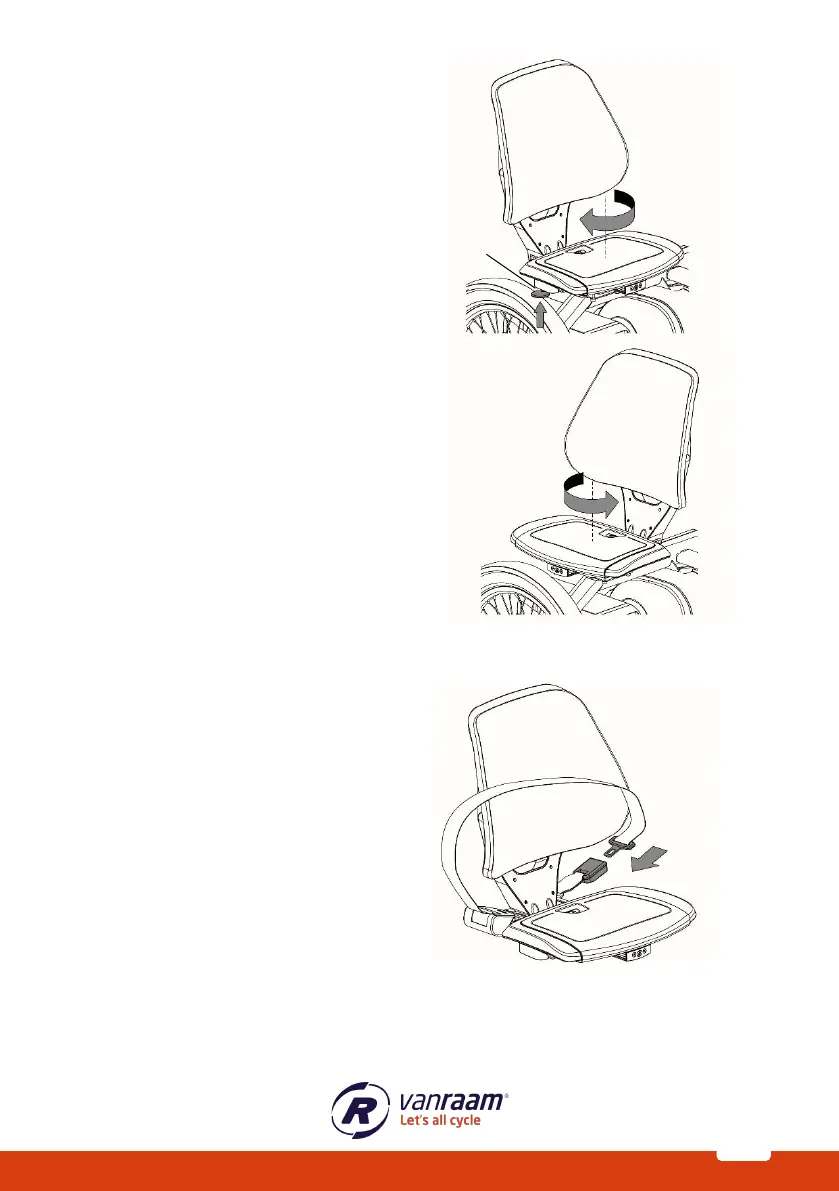

Rotatable seat
Item number: -0030
The rotatable seat can be used to be able to
get on the bike from the side.
To rotate the seat, follow these steps:
1. Pull up the lever [A].
2. Rotate the seat. When the seat is
rotated 90 degrees, the seat will lock
into place.
3. Let the co-rider get on the bike.
4. Pull up the lever [A] and rotate the
seat in the opposite direction until it
locks into place.
Hipbelt co-rider
Item number: -0070
Wrap the hipbelt around their body and click
the buckle into the lock.
Caution! When retracting the hipbelt, be sure
to feed it back in a straight direction to
prevent it from getting stuck.
[A]
