Van's Aircraft RV-12 Manual

Step 1: Cleco the F-00011 SkyView Template to the two referenced rivet holes in the F-1202B Panel Base as shown in Figure 1.
NOTE: If a tool with a small diameter rotating cutting disk is available, drill only the four corner holes of the rectangular pattern.
Step 2: Match-Drill #40 the hole pattern shown in Figures 1 and 2. Cleco after drilling the first hole to maintain alignment.
Step 3: Remove the F-00011 SkyView Template.
Step 4: Remove material from the F-1202B Panel Base in the shaded area shown in Figure 3. A small side cutters can be used to clip the
material between each hole, or cut with small cutting disk.
File the edges smooth.
Step 5: Final-Drill #30 the two holes indicated in Figure 3.

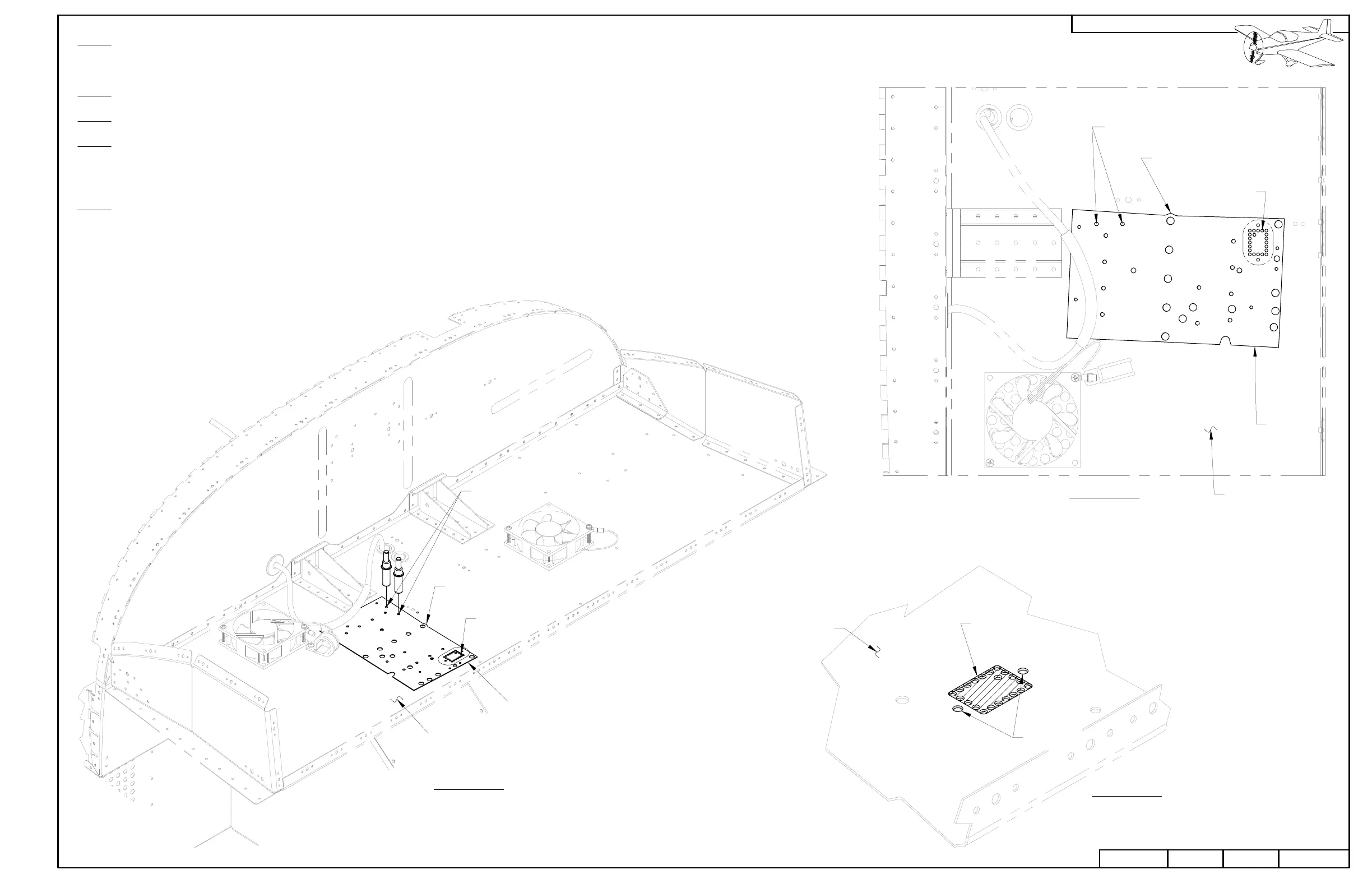

FIGURE 1:
MAKING THE USB
CONNECTOR OPENING
ISOMETRIC VIEW
F-1202B
POINT AIMS
INBOARD
CLECO HOLES
IN TEMPLATE
MATCH-DRILL
#40, 23 PL
F-00011
F-1202B
FIGURE 2:
MAKING THE BACKUP
BATTERY ATTACH HOLES
TOP VIEW
FIGURE 3:
USB CUTOUT
DETAIL
DATE:
FINAL
DRILL #30
F-1202B
REMOVE
SHADED
AREA AFTER
DRILLING
42D-05
010/03/11
REVISION:
RV-12
PAGE
POINT AIMS
INBOARD
F-00011
MATCH-DRILL
#40, 23 PL
CLECO HOLES
IN TEMPLATE
REVISION:DATE:
VAN'S AIRCRAFT, INC.
