Van's Aircraft RV-12 Manual

PAGEREVISION:DATE:
VAN'S AIRCRAFT, INC.
F-1201A

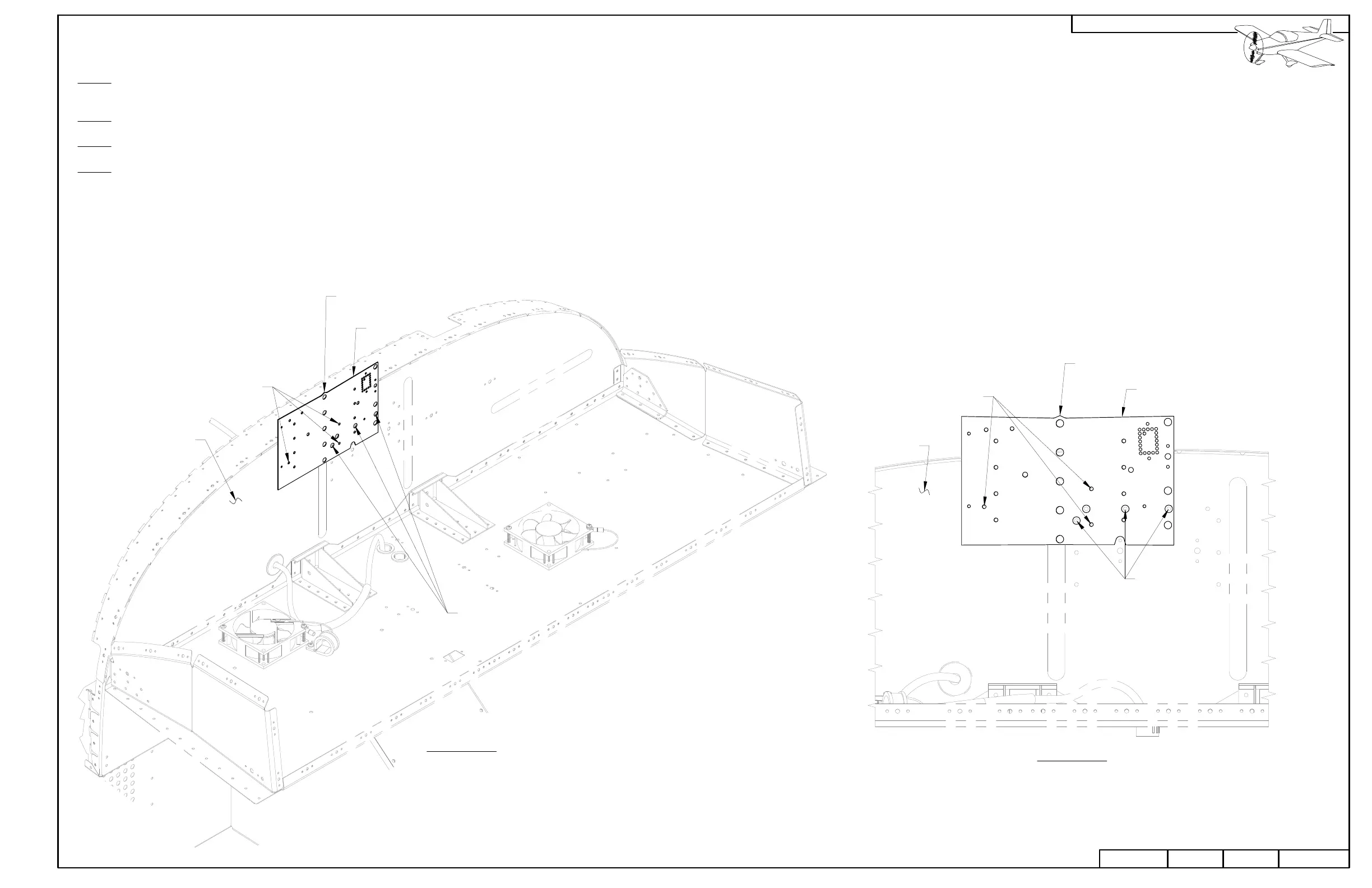

FIGURE 1:
MAKING THE
TRANSPONDER
ATTACH HOLES
ISOMETRIC VIEW
ALIGN HOLES IN
TEMPLATE WITH
RIVET HEADS
MATCH-DRILL #30
FINAL-DRILL #19
NOTE: When drilling stainless steel (F-1201A Firewall Upper) use a lubricant such as BOELUBE on bits. During the drilling
process firmly hold a block of wood on the opposite side of the Firewall Upper from the location being drilled.
Step 1: Align the F-00011 SkyView Template to the F-1201A Firewall Upper by placing the holes in the template over the rivet heads in
the firewall as shown in Figures 1 and 2.
Step 2: Match-Drill #30 the three locations indicated in Figures 1 and 2. Cleco each hole as you drill.
Step 3: Remove the F-00011 SkyView Template.
Step 4: Final-Drill #19 the three #30 holes drilled in Step 2.
POINT
AIMS UP
F-00011
MATCH-DRILL #30
FINAL-DRILL #19
ALIGN HOLES IN
TEMPLATE WITH
RIVET HEADS
10/03/11
DATE:
FIGURE 2:
MAKING THE
TRANSPONDER
ATTACH HOLES
TOP VIEW
F-1201A
RV-12
REVISION:
0
42D-07
F-00011
POINT
AIMS UP
