Vanderbilt SPC6330.320 - Wiring an Internal Sounder; Wiring Glassbreak

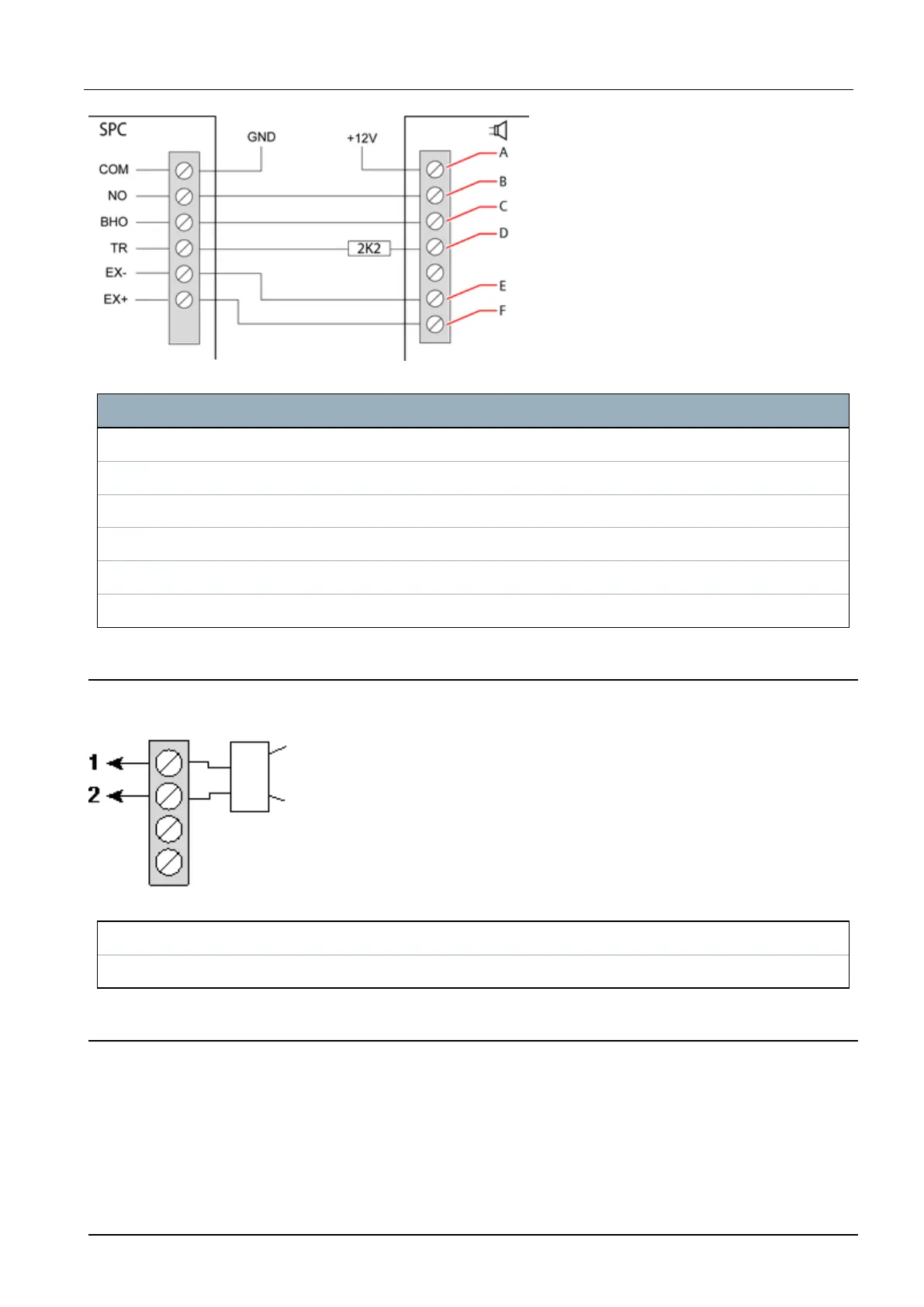

External bell wiring
Label Description
A Strobe +
B Strobe –
C Hold off
D Tamper return
E Bell -
F Bell +
10.7 Wiring an internal sounder
To wire an internal sounder to the SPC controller connect the IN+ and IN– terminals directly to the 12V
sounder input.
Internal sounder wiring (12V)
IN– IN– (SPC controller)
IN+ IN+ (SPC controller)
10.8 Wiring Glassbreak
SPC supports the RI S 10 D-RS-LED glassbreak interface in combination with GB2001 glassbreak
detectors.
