VANDERHALL VENICE 2017 - Instrument Panel Fuse Block

79

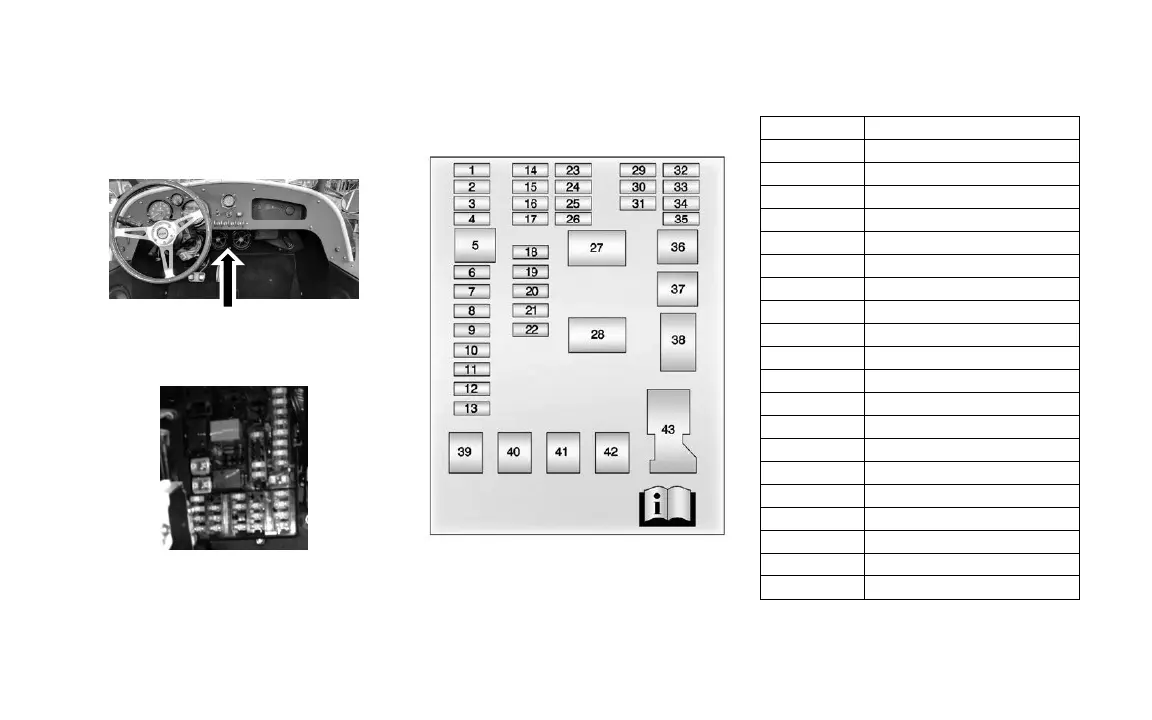

Instrument Panel Fuse Block
The instrument Panel Fuse Block is located
under the dash against the firewall
Number
Usage
1
DLIS
2
Data Link Connector
3
Not Used
4
Not Used
5
Spare
6
Body Control Module 8
7
Body Control Module 7
8
Body Control Module 6
9
Body Control Module 5
10
Body Control Module 4
11
Body Control Module 3
12
Body Control Module 2
13
Body Control Module 1
14
Instrument Cluster
15
Not Used
16
Not Used
17
Not Used
18
Audio
19
Not Used
20
Not Used
