vanEE NOVO+ 100H - Sizing; Technical Data; Air Distribution (Normal Operation ); Air Distribution (Defrost Mode )

4
2. TECHNICAL DATA

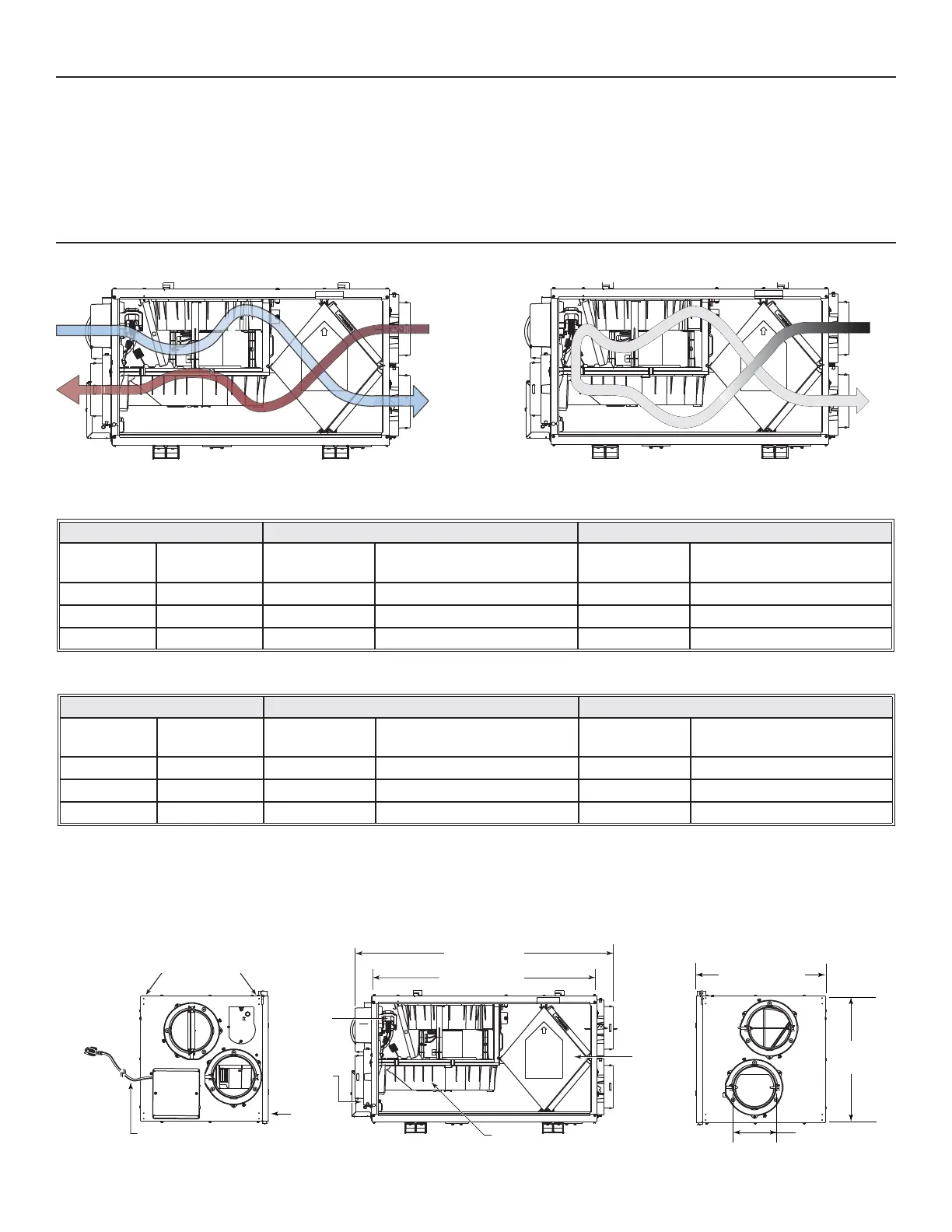

2.1 AIR DISTRIBUTION (NORMAL OPERATION)
2.3 D
EFROST CYCLES TABLES
NOVO+ 100H
OUTSIDE TEMPERATURE DEFROST CYCLES (MINUTES)EXTENDED DEFROST CYCLES (MINUTES)
C
ELCIUS (°C) FAHRENHEIT (°F) DEFROSTING
OPERATION TIME BETWEEN EACH
DEFROST CYCLES
DEFROSTING
OPERATION TIME BETWEEN EACH
DEFROST CYCLES
-5 23 7 50 10 30
-15 5 7 25 10 20
-27 -17 10 20 10 15
2.2 AIR DISTRIBUTION (DEFROST MODE)
VF0052
VF0053
NOVO+ 200H
OUTSIDE TEMPERATURE DEFROST CYCLES (MINUTES)EXTENDED DEFROST CYCLES (MINUTES)
C
ELCIUS (°C) FAHRENHEIT (°F) DEFROSTING
OPERATION TIME BETWEEN EACH
DEFROST CYCLES
DEFROSTING
OPERATION TIME BETWEEN EACH
DEFROST CYCLES
-5 23 6 50 10 30
-15 5 6 25 10 20
-27 -17 10 20 10 15
NOTE: The NOVO+ Performance Charts are listed on the specification sheets of these units.
Visit our website at www.vanee.ca to access those documents.
2.4 DIMENSIONS
17”
(432 mm)
17¼” (438 mm)
6”
(152 mm)
Power Cord
36” (914 mm)
Door
30¼” (768 mm)
35” (891 mm)
Terminal
Block
Location
Blower
Assembly
Motorized
Damper
Hooks Location
for Hanging Chains
Heat
Recovery
Core
VK0077A
1. SIZING
On high speed, the NOVO+ 100H units produce about 150 cfm, and NOVO+ 200H units produce about 192 cfm.
According to the Novoclimat Ventilation needs vs. the number of rooms chart, the NOVO+ 100H units can be installed in house having up
to 13 rooms*, and NOVO+ 200H can be installed in house having up to 16 rooms*.
*Houses with a non finished section having an area less than 2/3 of the house, or without basement. Refer to Novoclimat requirements
for more details.
