VT-MOD-CELL-B48 Hardware User Manual
7
3. Antenna Interface
3.1.1 Antenna interface Connector
There are 4 antenna interfaces in VT-MOD-CELL-B48 module respectively used for
4 antennas. U.FL-R-SMT-1 RF connector made by HRS Company is used for 4

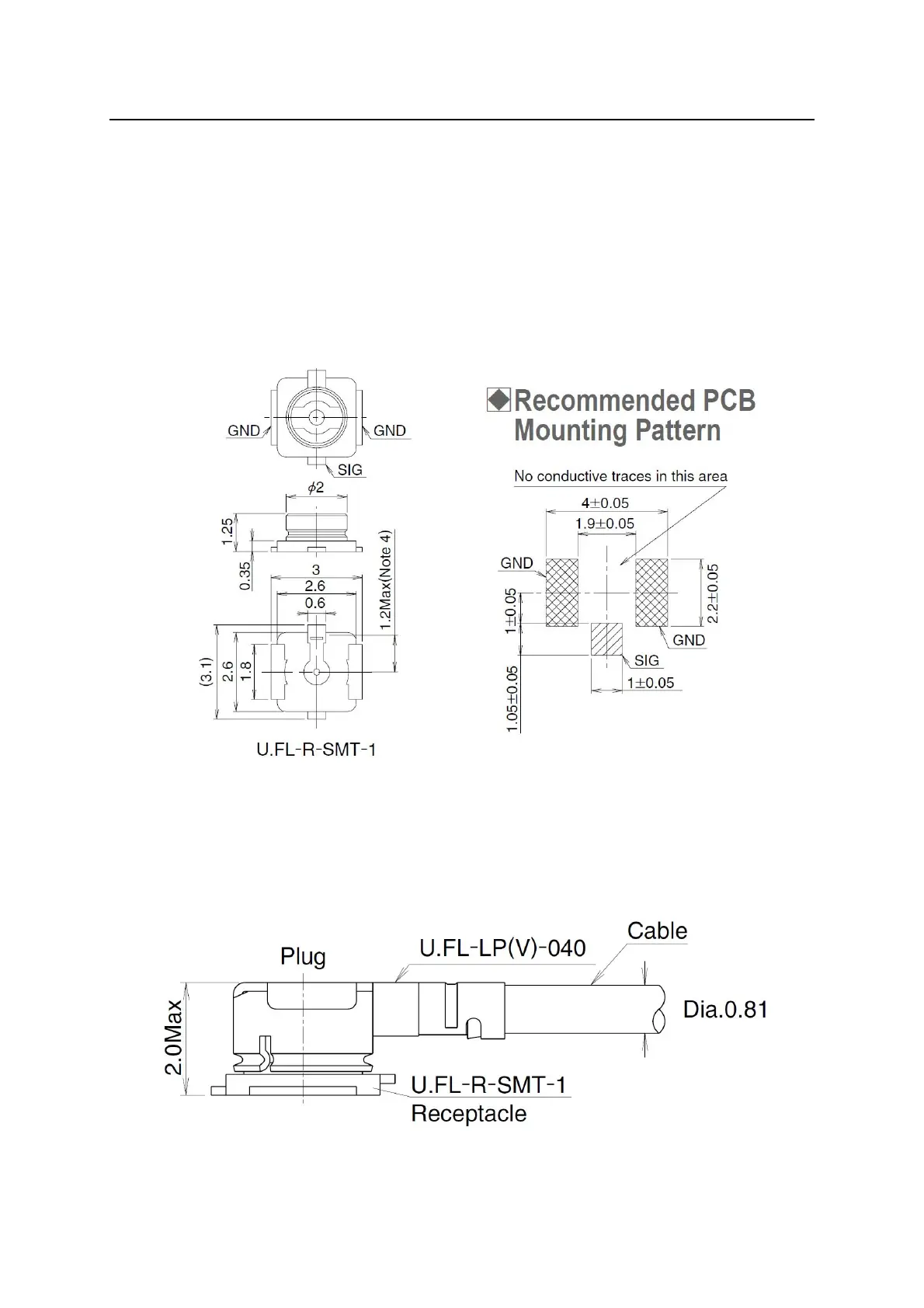

antenna interfaces in the module. The size of RF connector is shown in Figure 2-1.
Figure 2-1 RF connector size (1)
Figure 2-2 RF connector size (2)
