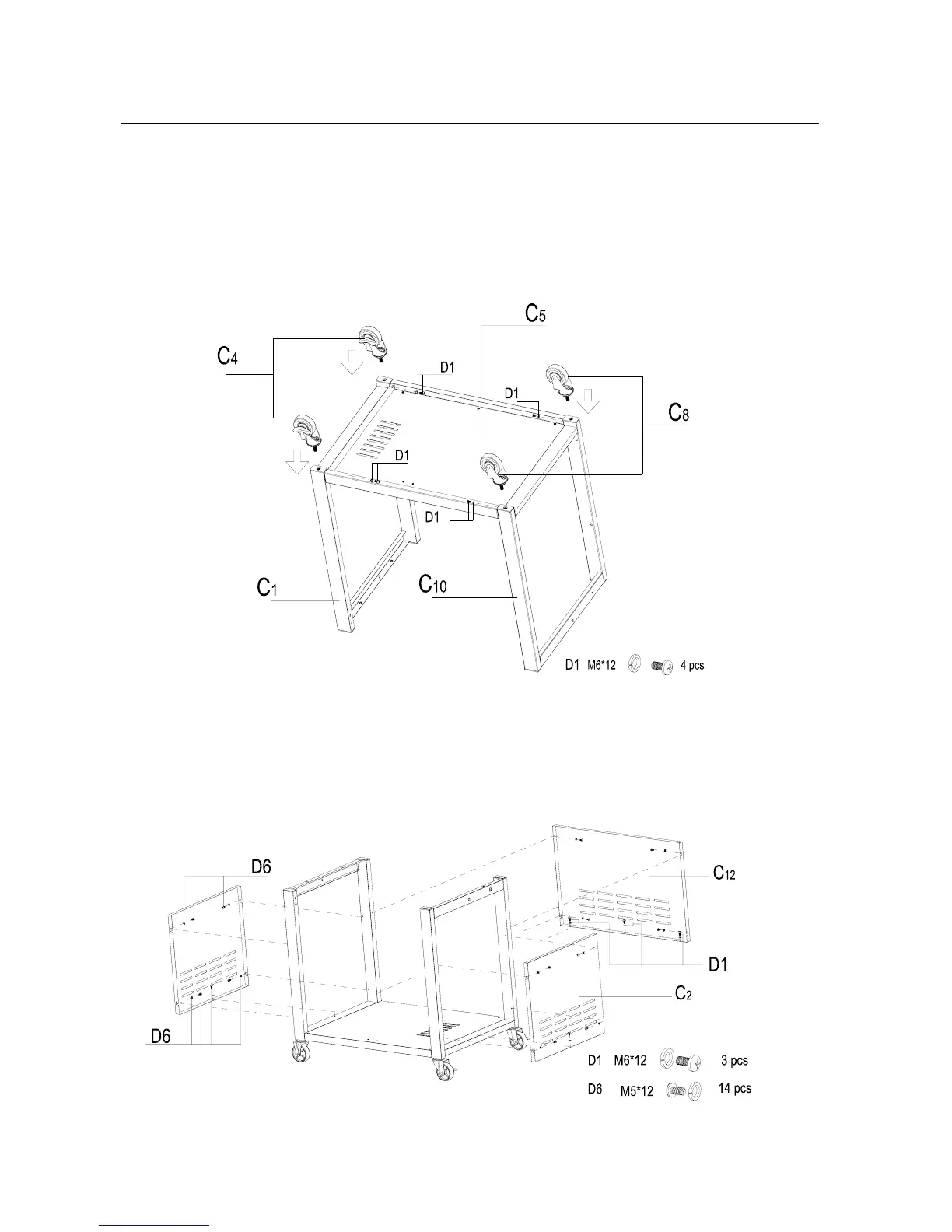

Step1: Attach the Trolley Base (C5) onto Right Side Trolley Assembly (C1) and Left Side
Trolley Assembly (C10) using M6×12 Bolt & Ø6 Spring Washer (D1) as shown.
Insert the two Lockable Castors (C4) and two standard Castors (C8) into the trolley frame
assembly as shown.
Step2: Attach the Side Panels (C2) and Rear Panel (C12) to the trolley frame using M5×12
Bolt & Ø5 Spring Washer (D6), and to the bottom panel using M6×12 Bolt & Ø6 Spring Washer
(D1) as shown.
To Next Page
