7

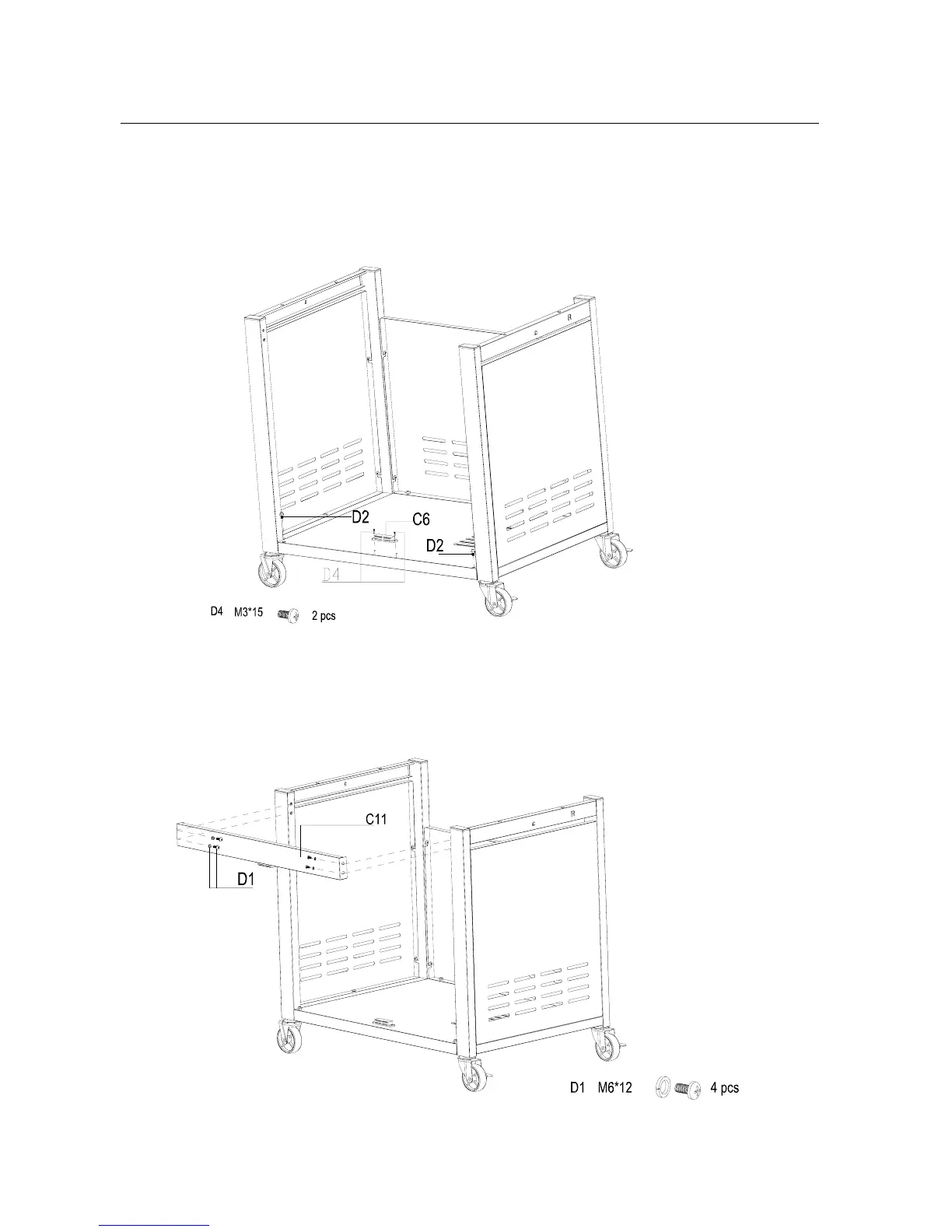

Step3:
Attach the Magnet (C6) onto bottom panel using M3×15 Bolt (D4).
Attach the Door Axes (D2) to the trolley frame in the areas as shown.
Step4: Attach the Upper Body Support (C11) onto the trolley frame assembly using M6×12
Bolt & Ø6 Spring Washer (D1) as shown.
