Vanward GD4819S - Page 9

9

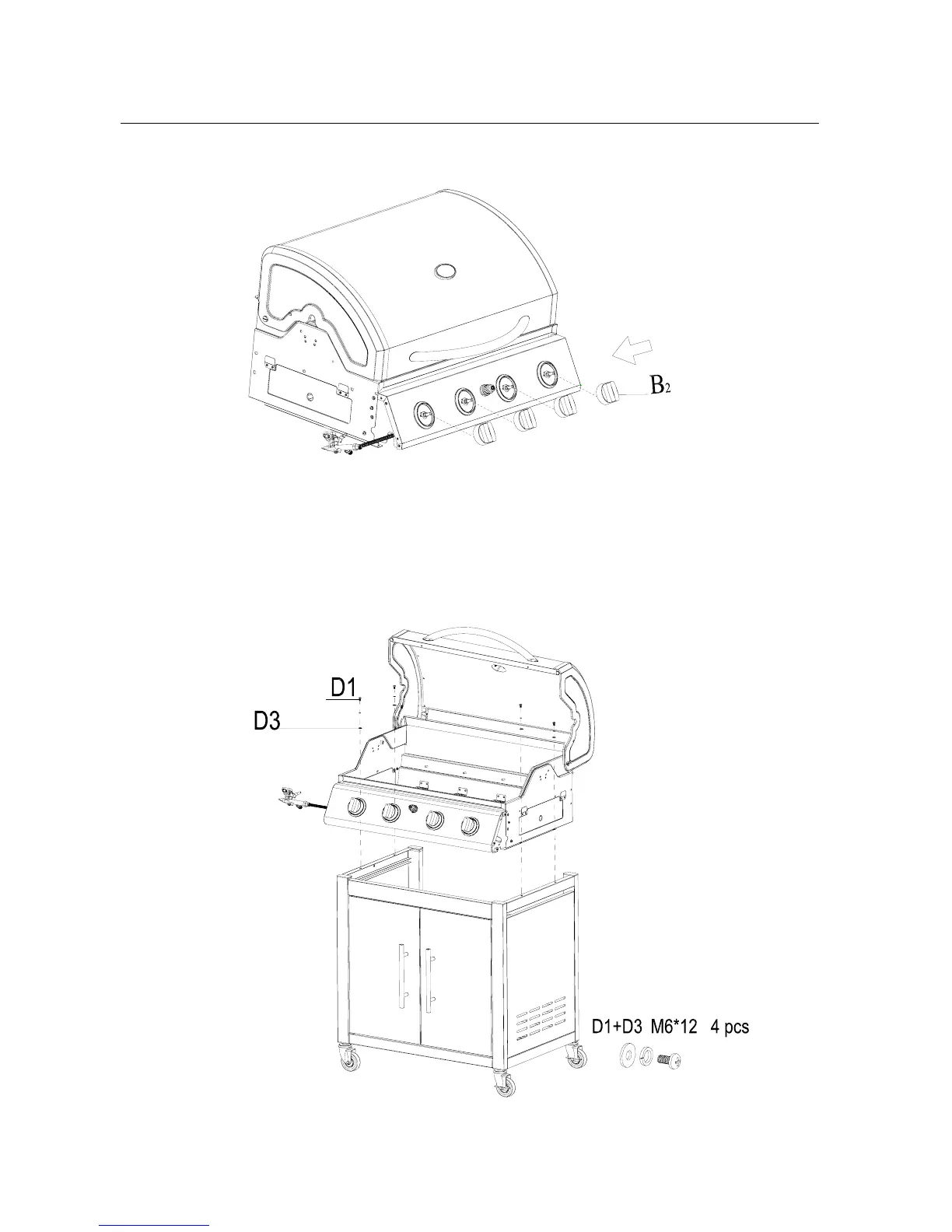

Step7： Push the control knobs (B2) onto the valve stems on the control panel.
Step8：
Carefully place the Hood and Barbecue Body (A1) onto the trolley assembly.
WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS
NOT BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR
BARBECUE.
Attach the barbecue body to the trolley assembly using the M6x12 Bolt & Ø6 Spring Washer
(D1) and Ø6 Washer (D3).
