Vaper HVLP - Page 10

18 19

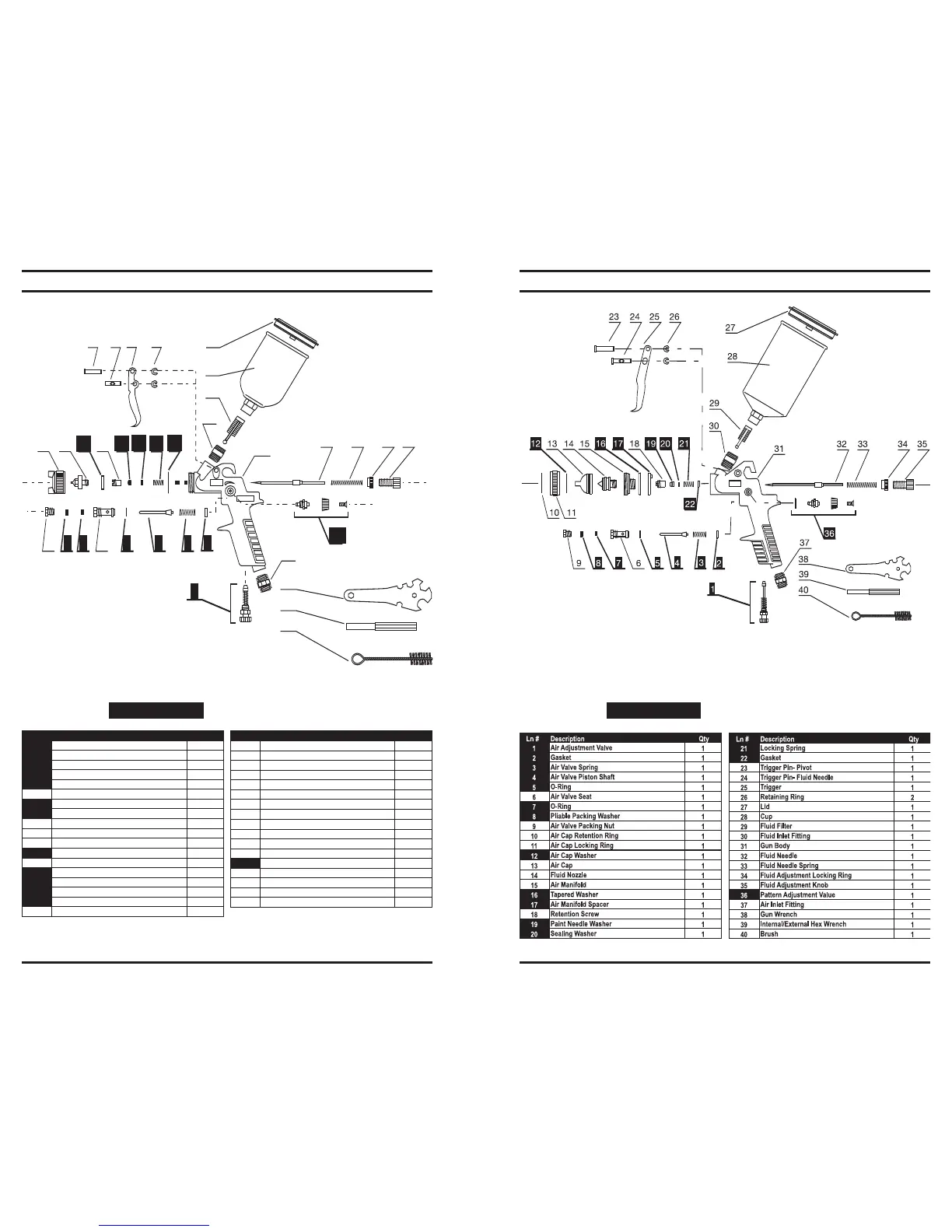

PRODUCTION GUN PARTS BREAKDOWNTOUCH UP GUN PARTS BREAKDOWN
1 1
Air Adjustment Valve
2 1
Gasket
3 1
Air Valve Spring
4 1
Air Valve Piston Shaft
5 1
O-Ring
7 1
O-Ring
8 1
Pliable Packing Washer
61
Air Valve Seat
91
Air Valve Packing Nut
10 1
Air Cap
12 1
Air Manifold Spacer
11 1
Fluid Nozzle
13 1
Retention Screw
14 1
Paint Needle Washer
15 1
Sealing Washer
16 1
Locking Spring
17 1
O-Ring
18 1
Trigger Pin - Pivot
Ln # QtyDescription
19 1
Trigger Pin- Fluid Needle
20 1
Trigger
22 1
Lid
23 1
Cup
21 2
Retaining Ring
24 1
Fluid Filter
25 1
Fluid Inlet Fitting
27 1
Fluid Needle
26 1
Gun Body
28 1
Fluid Needle Spring
29 1
Fluid Adjustment Locking Ring
30 1
Fluid Adjustment Knob
31 1
Pattern Adjustment Valve
32 1
Air Inlet Fitting
33 1
Gun Wrench
34 1
Internal/External Hex Wrench
35 1
Brush
Ln # QtyDescription
1
33
34
35
23456789
10 11
12
13
14 16
15
17
18 19
20
21
22
23
24
25
27 28
29 30
31
32
26
Item numbers in REVERSE TYPE included in 19910 Spray Gun Rebuild Kit
Item numbers in REVERSE TYPE included in 19909 Spray Gun Rebuild Kit
