Varec 6700 - Page 12

Liquid Level Indicator
4 Installation and Operations Manual

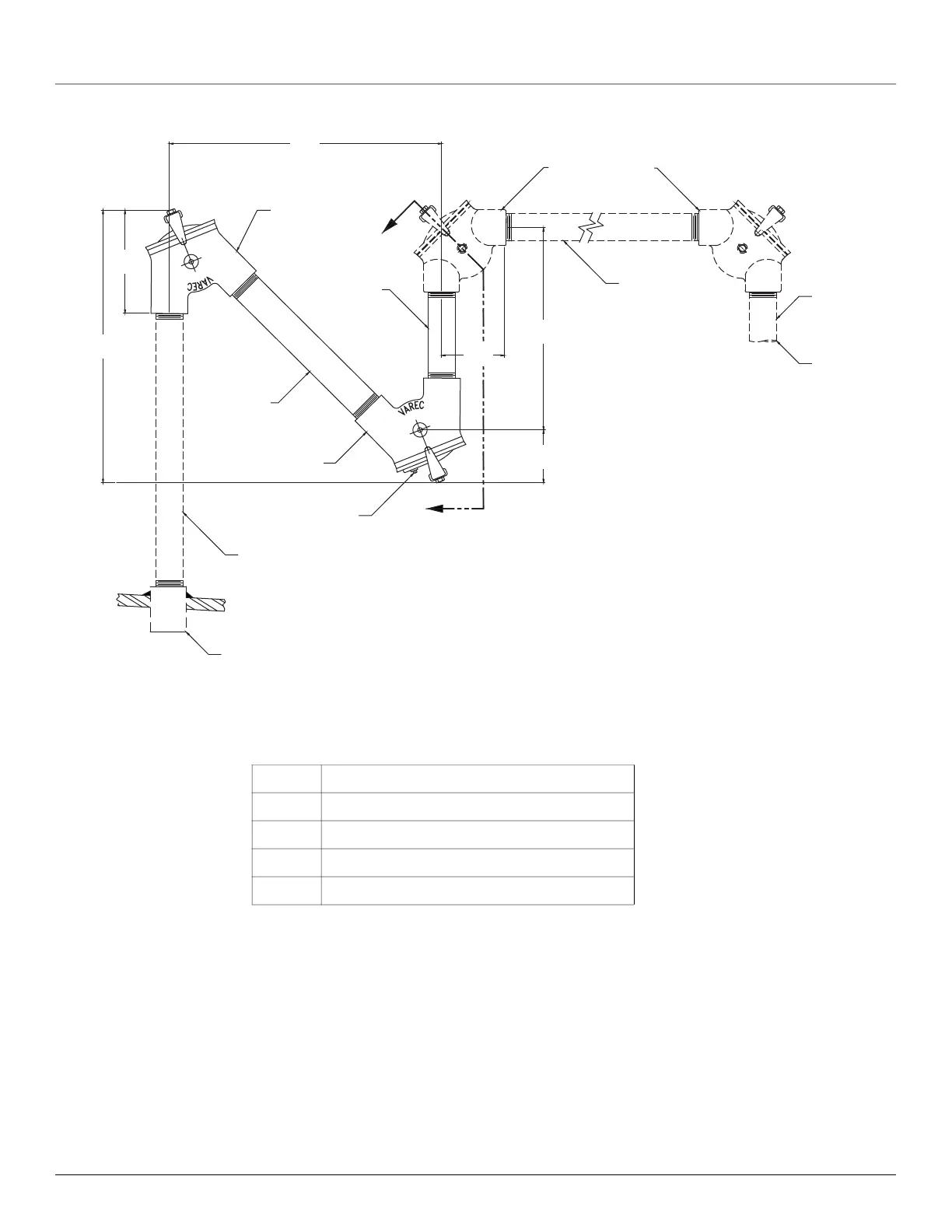

Figure 2: Oil Seal, 8.5-inch Water Column Operating Pressure Model
1
4
3
2
A
A
90° ELBOW FURNISHED
WITH LEVEL INDICATOR KIT
7.70
[196]
20.56
[522]
19.69
[500]
13.69
[346]
4.50
[114]
4.06
[103]
1-1/2 PIPE NPT BOTH ENDS
(BY CUSTOMER)
1/2 NPT DRAIN PLUG
1-1/2 NPT COUPLING
(BY CUSTOMER)
1-1/2 NPT PIPE
(BY CUSTOMER)
TO GAUGEBOARD
OR GAUGEHEAD
1-1/2 NPT PIPE
(BY CUSTOMER)
1
2
3
4
Table 2: Parts for Oil Seal, 8.5-inch Water Column
Item No. Description
1 Pipe, 1-1/2" x 15.50 [394], NPT Ends (Long)
2 Pipe, 1-1/2" x 7.25 [184], NPT Ends (Short)
3 135
° Sheave Elbow
4 135
° Sheave Elbow with Drain
