Vari Lite VL6 Series - Zoom Optic Motor Assembly VL6 B;VL6 C

ILLUSTRATED PARTS BREAKDOWN : HEAD
3
02.9638.0010 25-July-01 125
confidential
Zoom Optic Motor Assembly VL6B/VL6C
21.9660.0272
Refer to Figure 3-35.

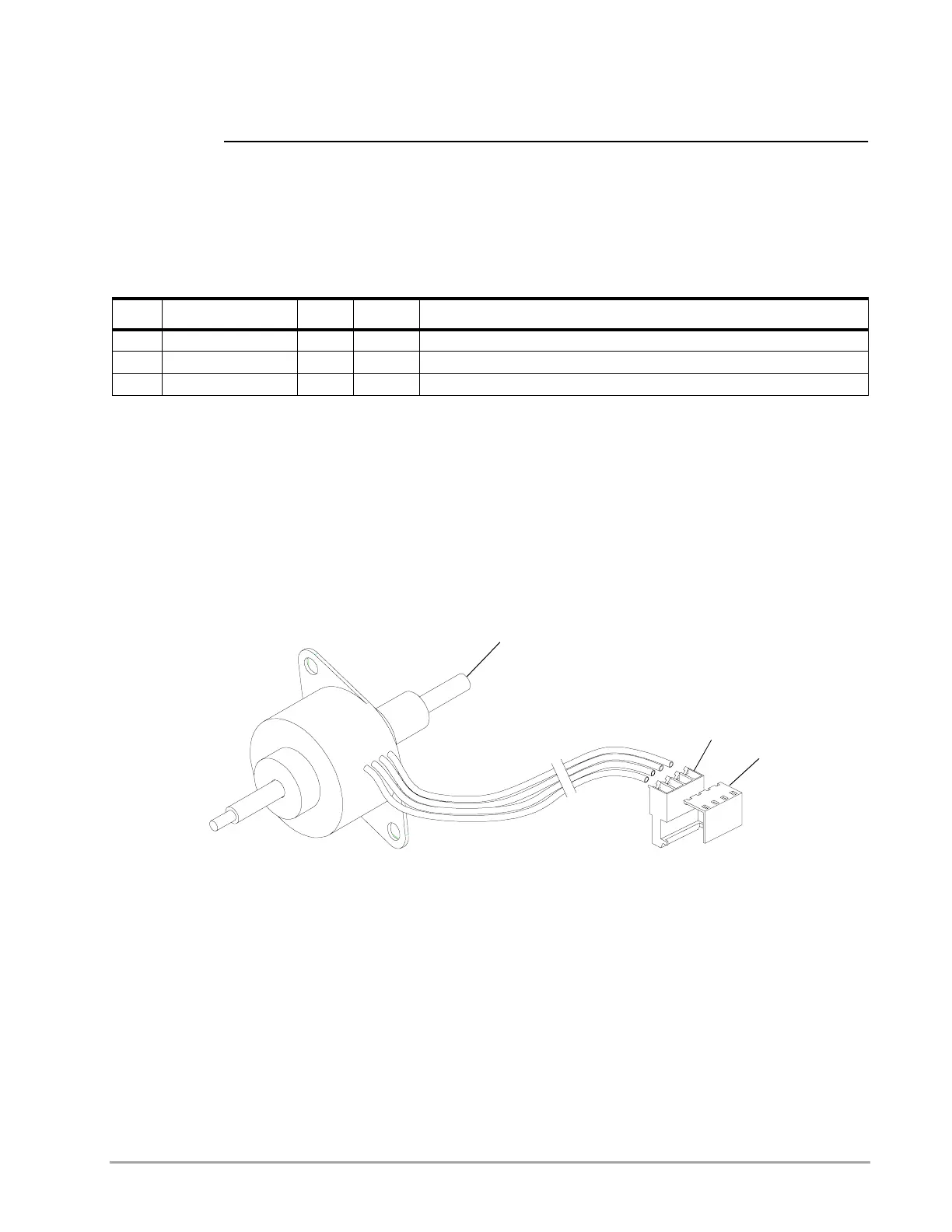

Figure 3-35: VL6B/VL6C Zoom Optics Motor Assembly
No. Item Qty UM Description
1 44.9660.0262 1 EA MOTOR, 1" LINEAR - ZOOM
2 52.6396.2804 1 EA RECEPT, 4-POS MTA100 W/POL TAB GREEN CLSD END
3 52.6424.0004 1 EA COVER, 4-POS CLOSED END STRAIN RELIEF - MTA
1
2
3
