Varian ProStar - Page 32

INJECT
ADVANCE
PEAK
A-GND
ANALOG
RACK
EVT MARK
+13VDC
GND
CHASSIS
OUTPUTS INPUTS
12345

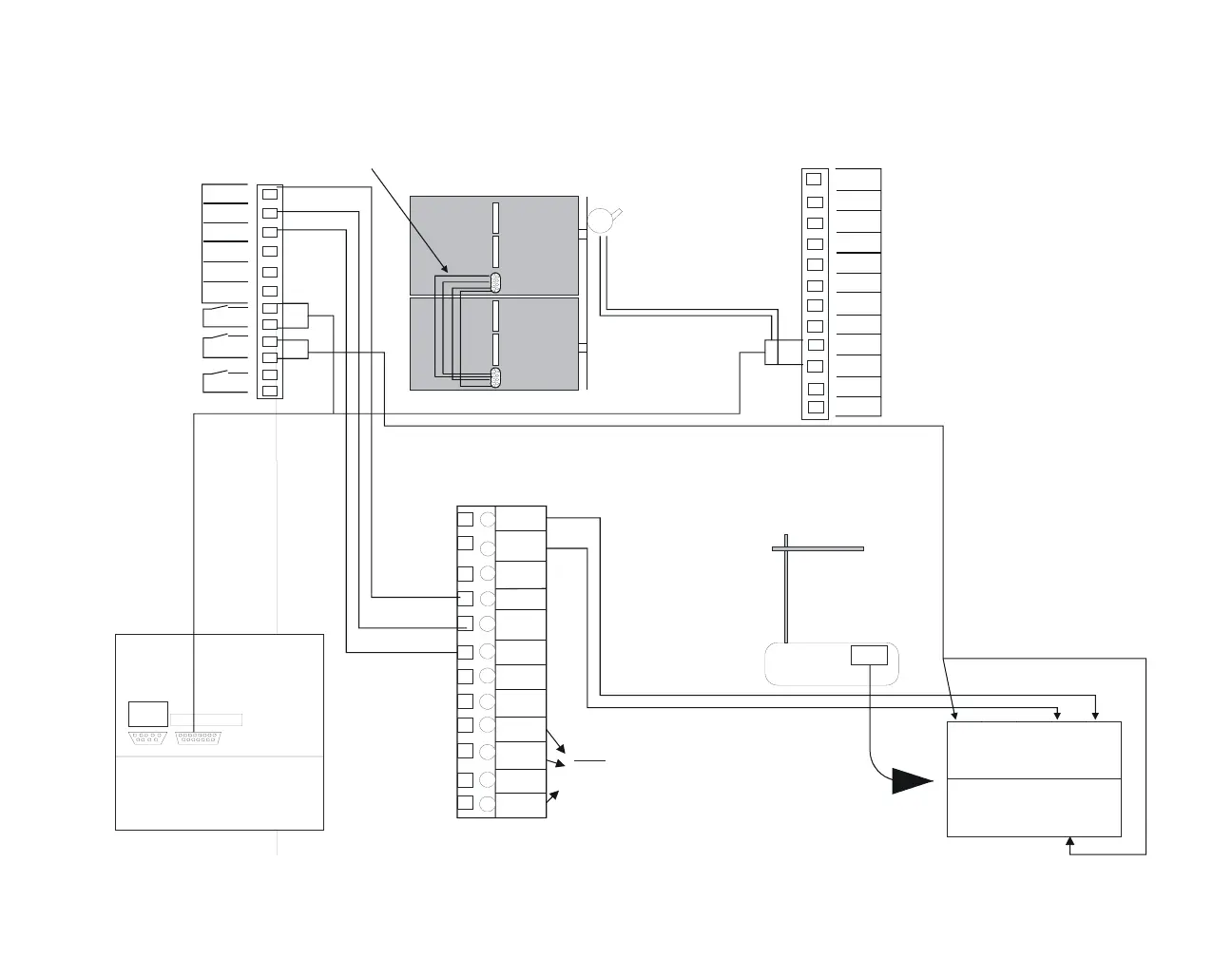

210/215/218 Pump (Master), 320 UV
Detector, and 400 AutoSampler
ProStar 701
Position sensing
switch of Rheodyne
manual injector is
connected to Start In
210/215/218 Pump
Sync cable for
ProStar 400
AutoSamplers
0393516201
ProStar 320 UV-Detector
ProStar 400 AutoSampler
3
1
2
ANALOG
OUT GRD
INTGR 1
HI
INTGR 1
LOW
INTGR 1
GRD
CHASSIS
GRD
ANALOG
OUT
AUX
+5V
AUX
GND
STOP
D GRD
HOLD
D GRD
TRANSFER
D GRD
INJECT
D
GRD
MARK
D GRD
Shielded cable
R007200141
Extension cable
R000815107
Shielded cable
R007200141
REC HI
REC
LOW
REC
GRD
INT HI
INIT
LOW
INIT
GRD
EXT
WAVE HI
EXT WAVE
LOW
LAMP
ON/OFF
AUTO
ZERO
D GRD
EVENT
MARK
Shielded cable
R007200141
CONTROL I/O
COMM
PORT
NOTE : Lamp ON/OFF,
autozero can be connected to
Relay 2 & 3 respectively of the
ProStar 220/230/240 pump
using the cable 02-001594-00.
Detail
32
