Varian ProStar - Page 41

INJECT
ADVANCE
PEAK
A-GND
ANALOG
RACK
EVT MARK
+13VDC
GND
CHASSIS
OUTPUTS INPUTS
12345

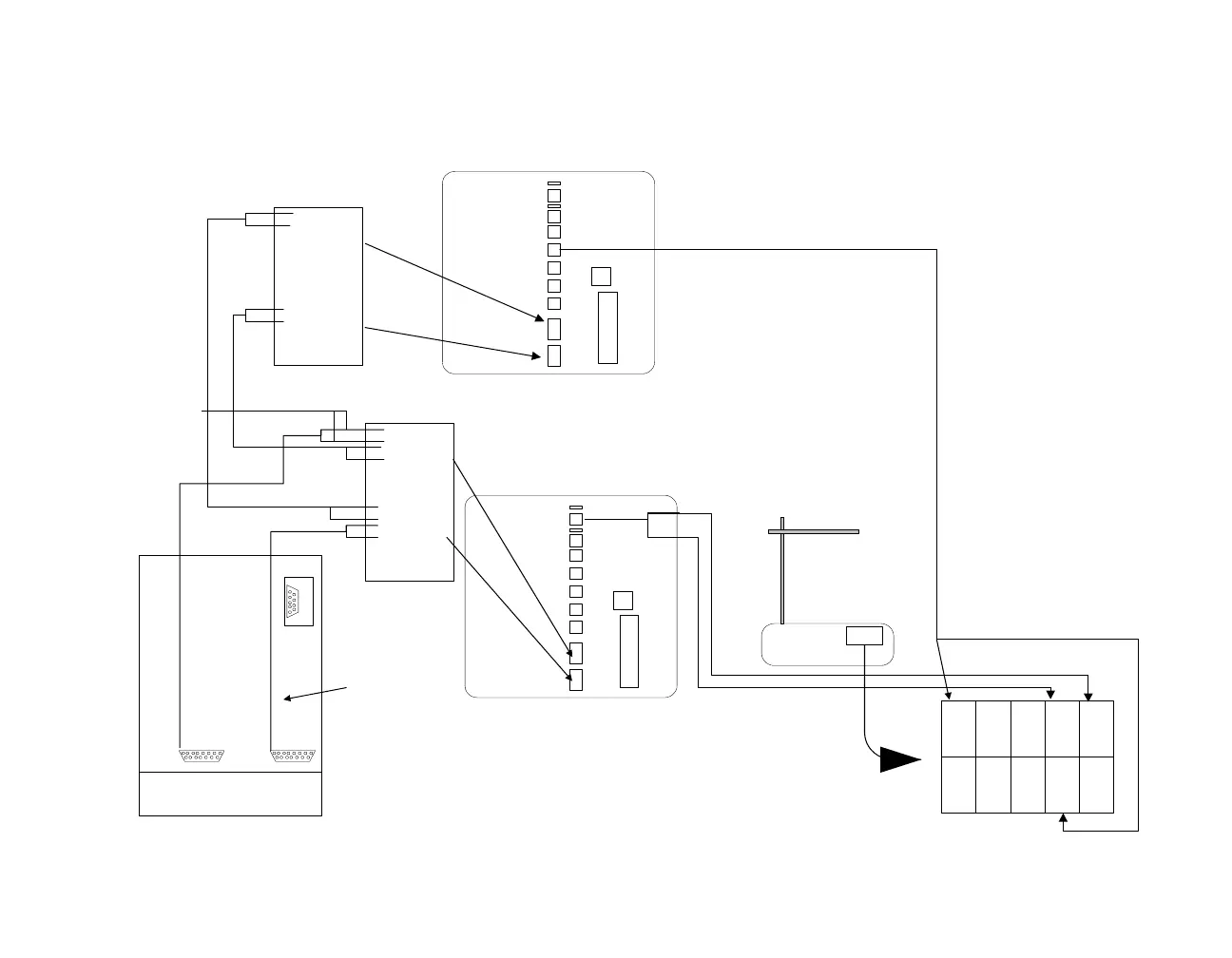

ProStar 220/230/240 Pump (Master),
310 UV Detector, and 420/430
AutoSampler
ProStar 701
Start In -
Start In +
Ready In -
Ready In +
Fault In -
Fault In +
Gnd
Gnd
J9
Start Out -
Start Out +
Ready Out -
Ready Out +
Fault Out -
Fault Out +
Ready In enable
+5V
J10
Signal Cable
02-001954-00Position sensing
switch of
Rheodyne
manual injector is
connected to
Start In
ProStar 220/230/240 Pump
1v 10V (switch)
1mV 10mV (switch)
Data system
output 2AUFS
Chart recorder
Output
Peak sensing relay
Device Address
Relay 1
Relay 2
Relay 3
Relay 4
J9
J10
Syn Signal
Sync cable for
ProStar 420/430
AutoSampler
0393516101
Start In -
Start In +
Ready In -
Ready In +
Fault In -
Fault In +
Gnd
Gnd
J9
Start Out -
Start Out +
Ready Out -
Ready Out +
Fault Out -
Fault Out +
Ready In enable
+5V
J10
1v
10V (switch)
1mV
10mV (switch)
Data system
output 2AUFS
Chart recorder
Output
Peak sensing relay
Device Address
Relay 1
Relay 2
Relay 3
Relay 4
J9
J10
Syn Signal
Sync Cable Kit
03-91994890
ProStar 310 UV-Detector
P4
MARKER
RELAY
P6
INPUTS
COM
POR
T
ProStar 420/430 AutoSampler
Clear +ve
Black -ve
Detail
