Assembly
Front
Section
Drive
Section
4) Turn the conveyor right side up. Install the chain guard with the
(2) black #8 machine screws. See Maintenance section for chain
adjustment
Belt

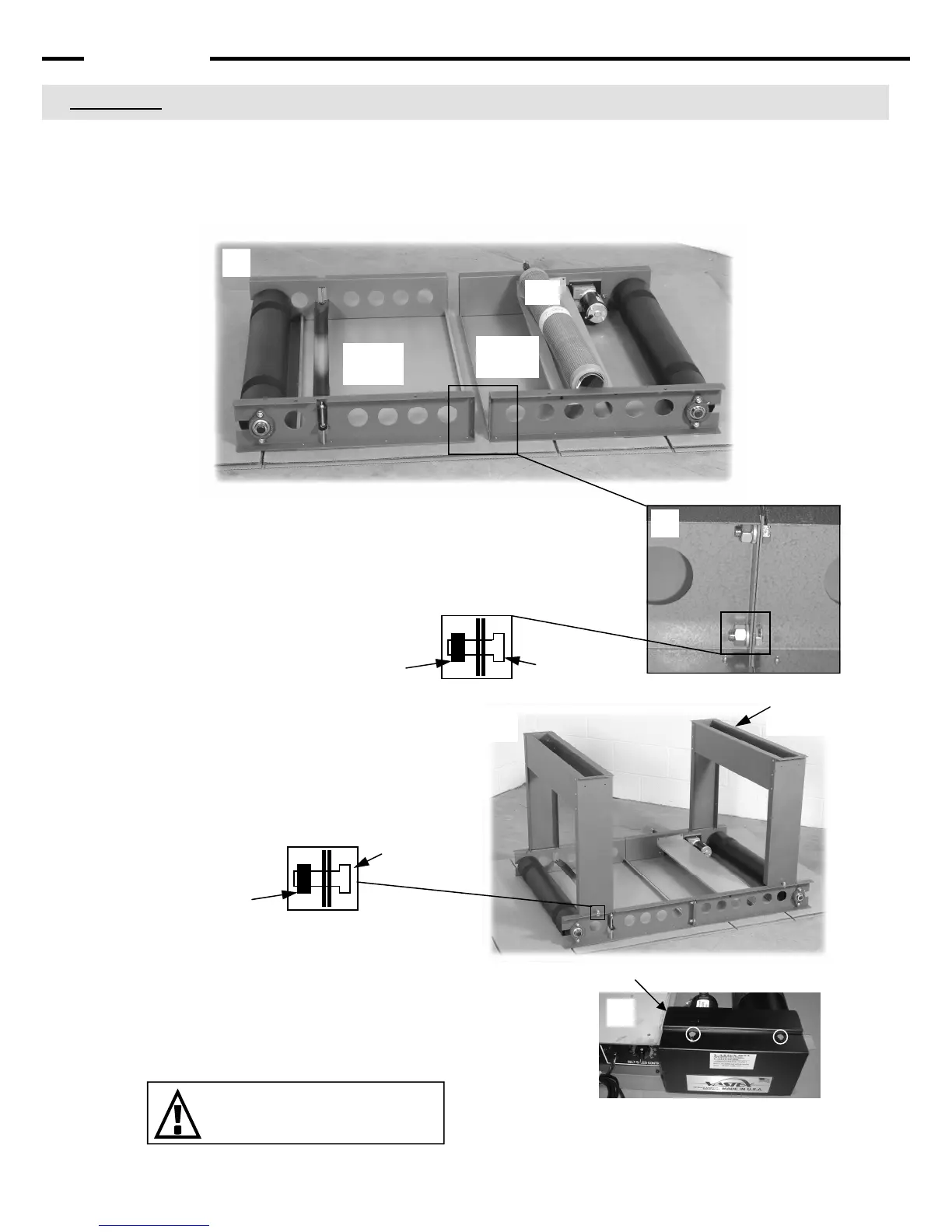

1) The conveyors are assembled in the same way for all DB-Series dryers. The DB-30 is being used for
the pictures. Remove the conveyor parts from skid and lay out on a large table or the floor as shown.
2) Bolt together all sections of the conveyor. Each section is bolted to the
next using (2) 3/8”x 3/4” bolts, serrated locknuts. Photo on right.
1
3) Install the (Optional) leg assemblies using
(2) 3/8” x 3/4” bolts and serrated locknuts
on each leg assembly.
Leg Assembly
(optional)
2
3
4
Tools Needed: (2) 9/16” open end wrenches, (1) 7/16” open end wrench or socket, (1) 1/4” nut driver OR flat blade screw driver
3/8” x 3/4” bolt
3/8” Serrated Locknut
Chain Guard
Do not operate with Chain Guard
removed. Serious Injury may result!
3/8” x 3/4” bolt
3/8” Serrated Locknut
To Next Page
