Vehicle care 161

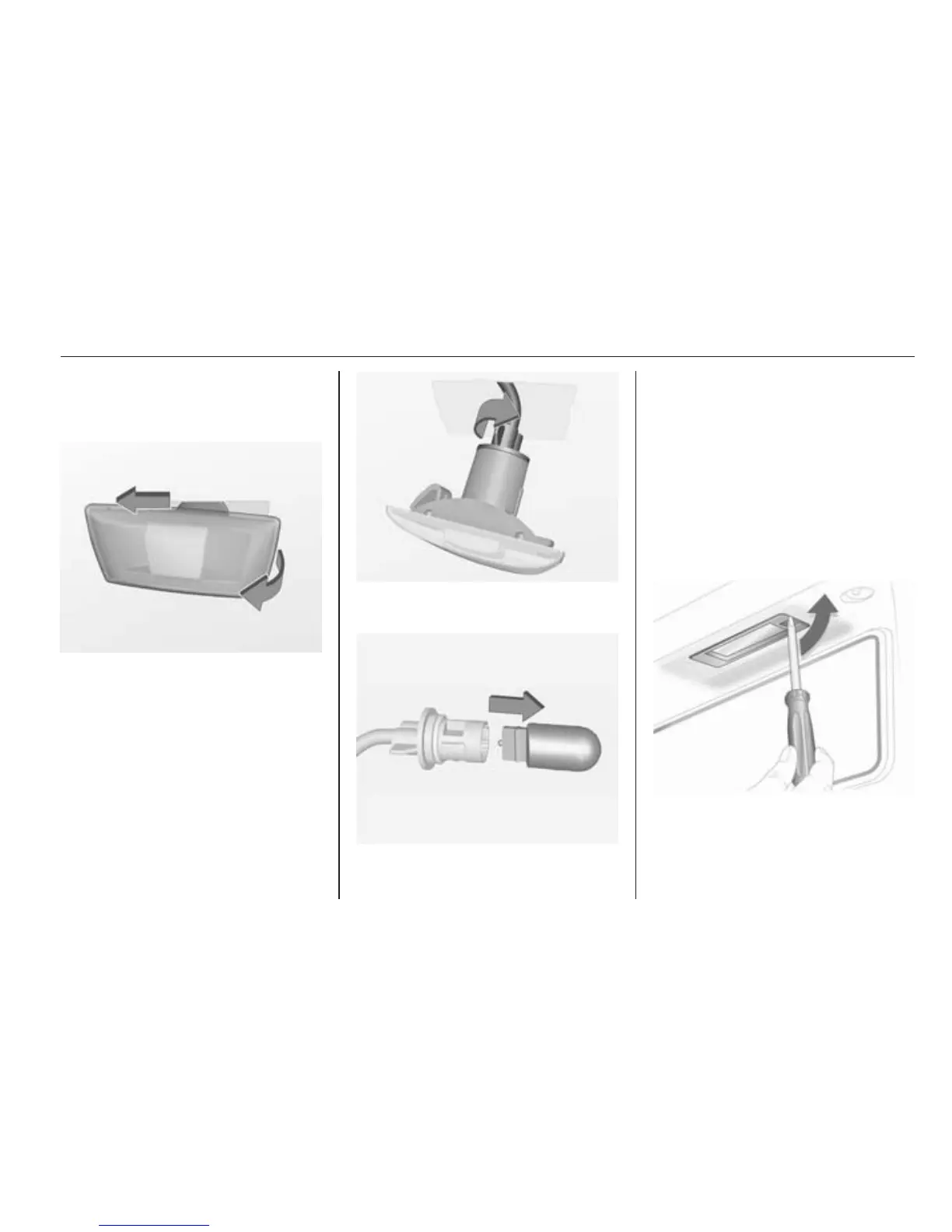

Side turn signal lights
To replace bulb, remove lamp
housing:
1. On left vehicle side, slide lamp to
the front and remove it out of the
fender with the rear end.
On right vehicle side, slide lamp to
the rear and remove it out of the
fender with the front end.
2. Turn bulb holder anticlockwise
and remove from housing.
3. Pull bulb from bulb holder and
replace it.
4. Insert bulb holder and turn
clockwise.
5. On left side: insert front end into
fender, slide forward and insert
rear end.
On right side: insert rear end into
fender, slide rearward and insert
front end.
Number plate light
1. Insert screwdriver in recess of the
cover, press to the side and
release spring.
