Vax Air Lift Steerable Advance - Brushbar and Belt Maintenance

16
MAINTENANCE & CLEANING

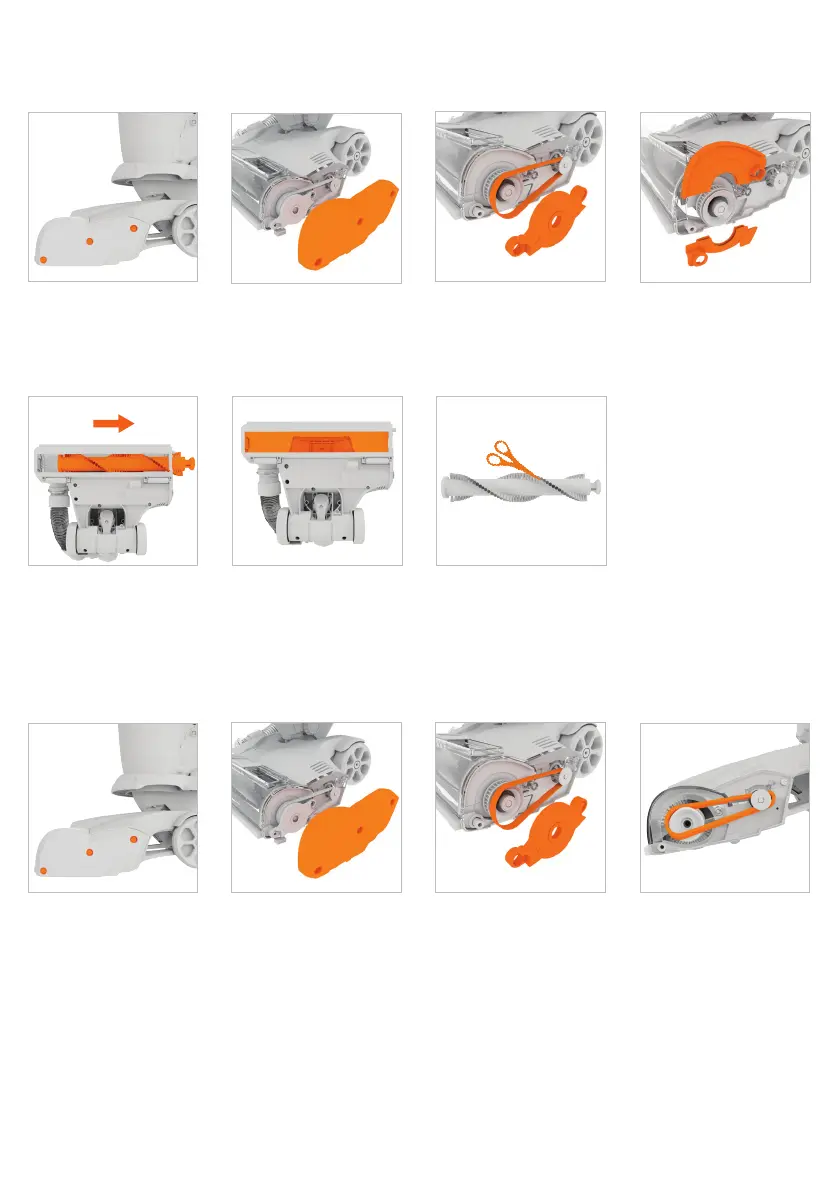

Cleaning the brushbar
Clear any dirt/debris inside
the brushbar housing.
Using a pair of scissors
remove any threads or
hair caught around the
brushbar and end caps
before refitting.
Using a crosshead
screwdriver, remove the 3
screws from the belt cover
on the side of the floorhead.
Pull to remove the
brushbar location plate.
Remove the belt.
Changing the belt
Using a crosshead
screwdriver, remove the 3
screws from the belt cover
on the side of the floorhead.
To replace the belt firstly
hook the belt over the
small cog. Slide the belt
over the top of the large
cog and rotate the belt
and cog anticlockwise.
During rotation the belt
will slide onto the cog.
Lift and separate the
brushbar side cover.
Pull the brushbar through
the side cover to remove.
Pull to remove the belt
cover.
Pull to remove the belt
cover.
Pull to remove the
brushbar location plate.
Remove the belt. Clean any
debris from the cogs.
