Operation
4
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
W90-RU & W89-RU Series User Guide v1.3.qxd:User guide 1/2/11 12:41 Page 4

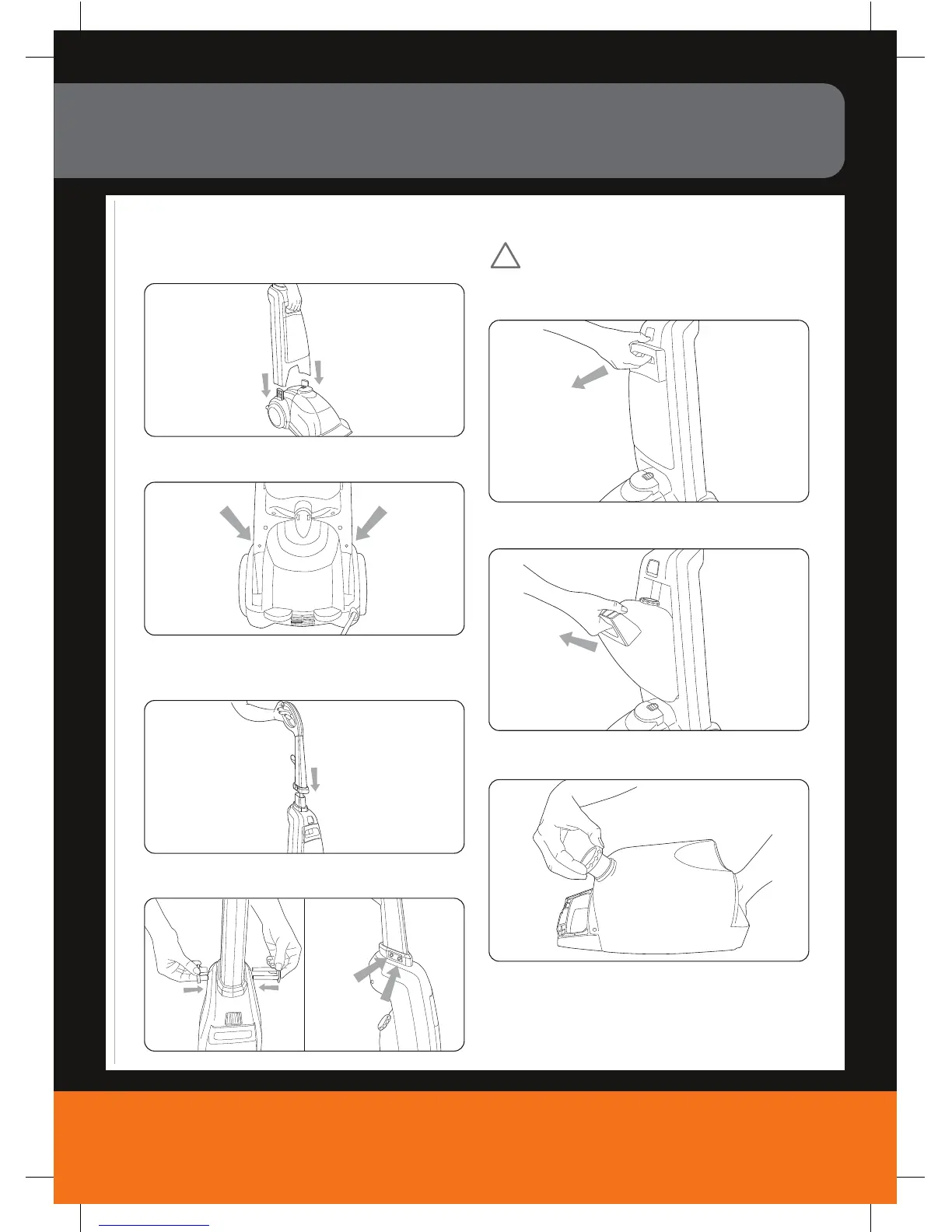

Insert middle frame to machine base (Fig 3/1).
Insert one screw on either side of middle frame to secure
(Fig 3/2).
Slide the upper handle down onto the unit. The handle
will click and lock in place. Run the mains wire above the
upper cord hook and secure with the cord clip (Fig 3/3).
Insert locking pins into either side of handle (Fig 3/4).
Screw locking pins into handle (Fig 3/5).
Grasp the solution res
ervoir under the handle and press
the handle release lever in (Fig 4/1).
Tilt the solution reservoir away from the cleaner and
remove (Fig 4/2).
Unscrew the cap from the back of the solution reservoir
(Fig 4/3).
Pour the correct amount of Vax Solution as directed on
the solution label into the clean water tank.
Fig.3/3
Fig.4/1
Fig.4/2
Fig.4/3
!
Fig.3/2
Fig.3/1
Fig.3/4 Fig.3/5
Assembly: Putting your
cleaner together
Operation
IMPORTANT: Turn off when emptying and filling
the tanks and performing any maintenance.
