6. Brushbar and Belt
Replacement
Put the cleaner in the upright position, switch it off and
unplug from the mains supply. Flip the cleaner to expose
base of vacuuming head. To remove head guard, use a
Phillips screwdriver to remove the 4 screws as indicated
(Fig.6/1).
Lift vacuuming head guard off.
NOTE: The guard can only be removed / attached when
the cleaner is in upright position, but once it has been
removed, the cleaner can be laid flat for ease.
Lift and remove brushbar (Fig.6/2). Slide belt off motor
shaft and dispose.
Slide new belt onto motor shaft (Fig.6/3). Place new belt
in ar
ea o
f brushbar without bris
tles (Fig.6/4). Slide
brushbar back into the slots and re-attach vacuuming
head guar
d, making sur
e to replace all 4 screws.

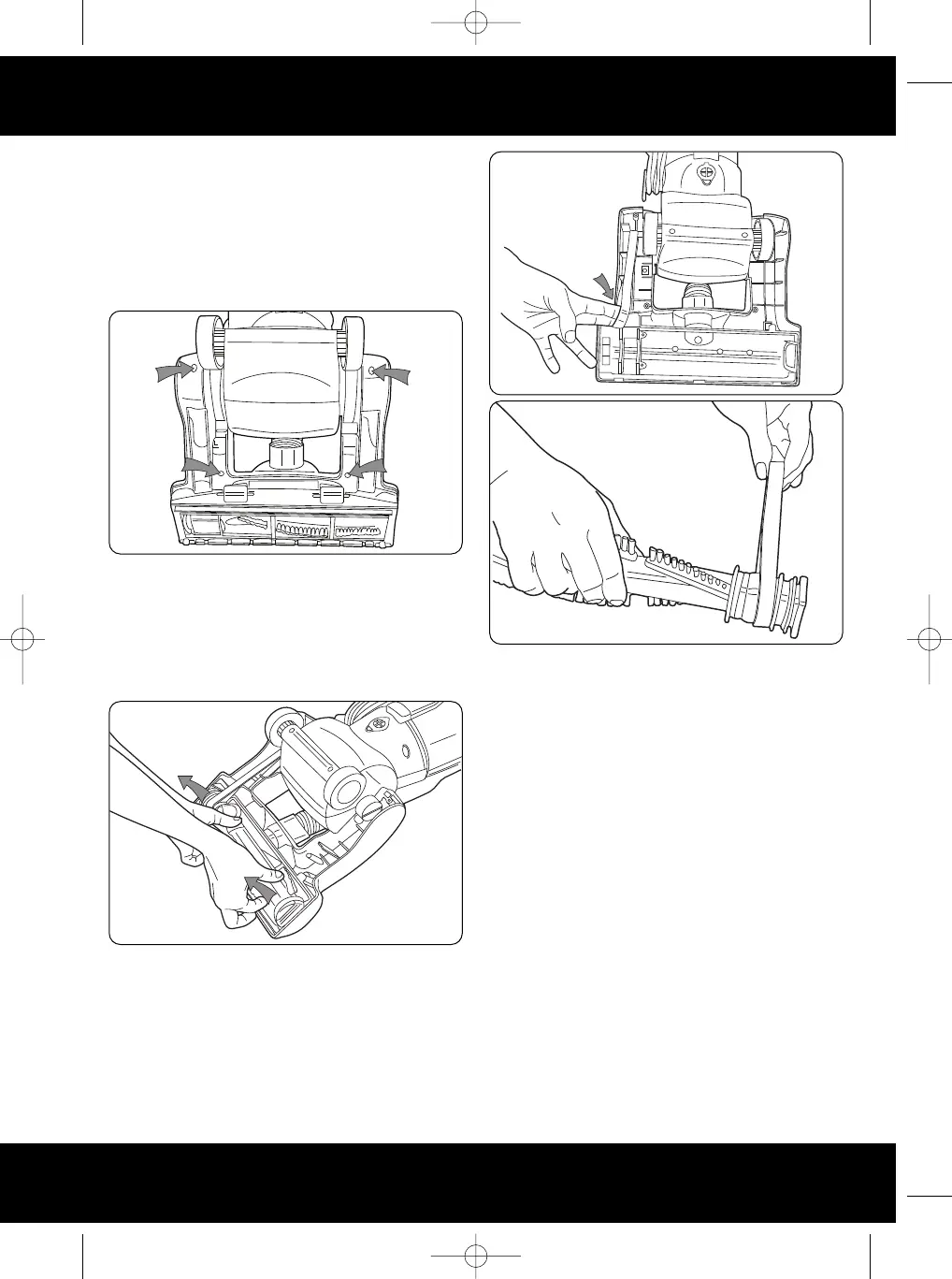

Fig.6/1
