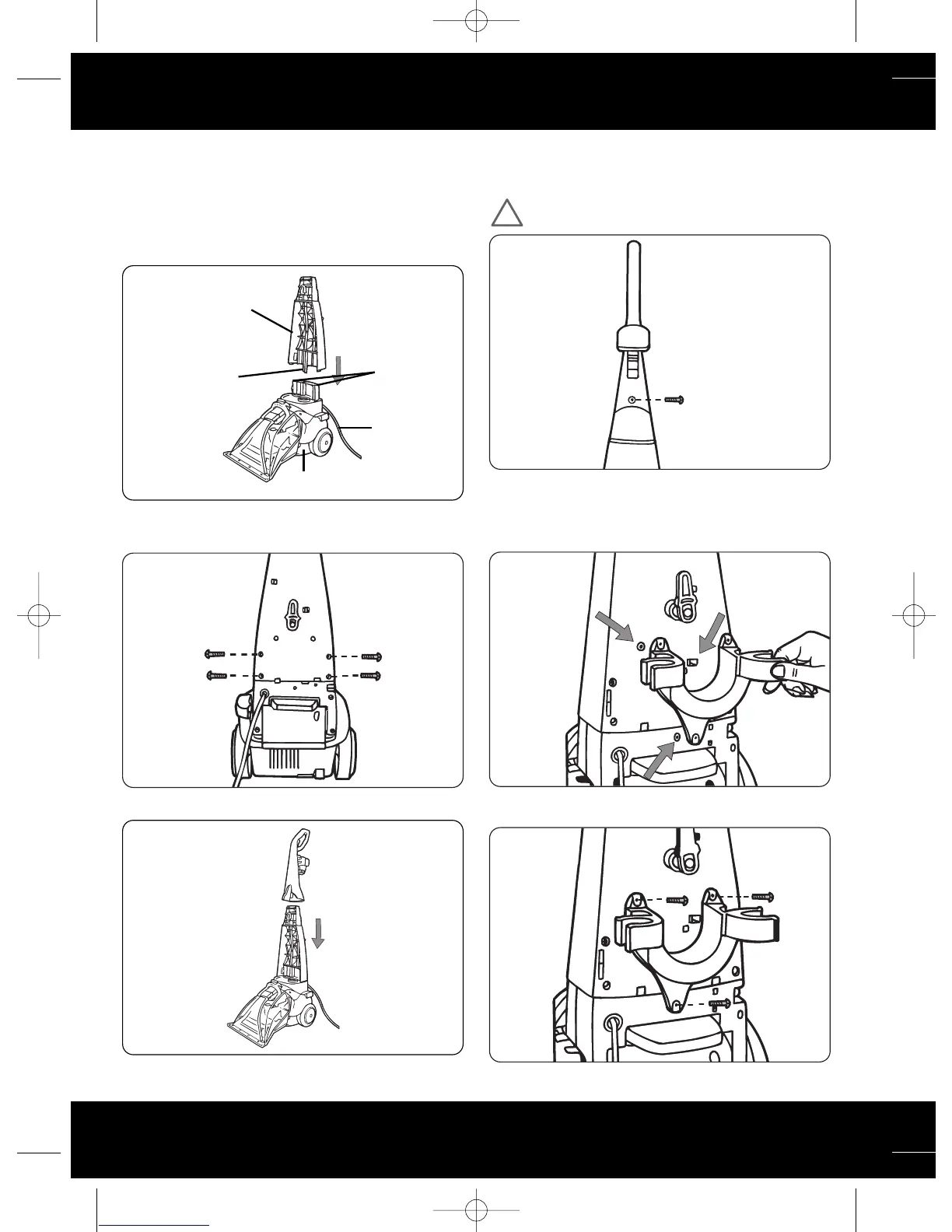

3. Preparing the Machine
Assembling the carpet washer
Stand base in upright position. Push mid-section onto base by
aligning tabs on inside of mid-section with the pockets on the
base (Fig.3/1).
Insert 4 lower handle/tool caddy screws and tighten until
secure (Fig.3/2).
Slide upper handle down onto unit (Fig.3/3).
Insert the upper handle screw (as shown) and tighten
until secure (Fig.3/4).
NOTE: Make sure the power cord is out of the
way to avoid pinching.
Caddy Assembly
Align tool caddy with screw holes on mid-section
and base (Fig.3/5).
Insert the three (3) tool caddy screws (as shown) and
tighten until secure (Fig.3/6).
Fig.3/1
Fig.3/2
