assembly
5. Assembly

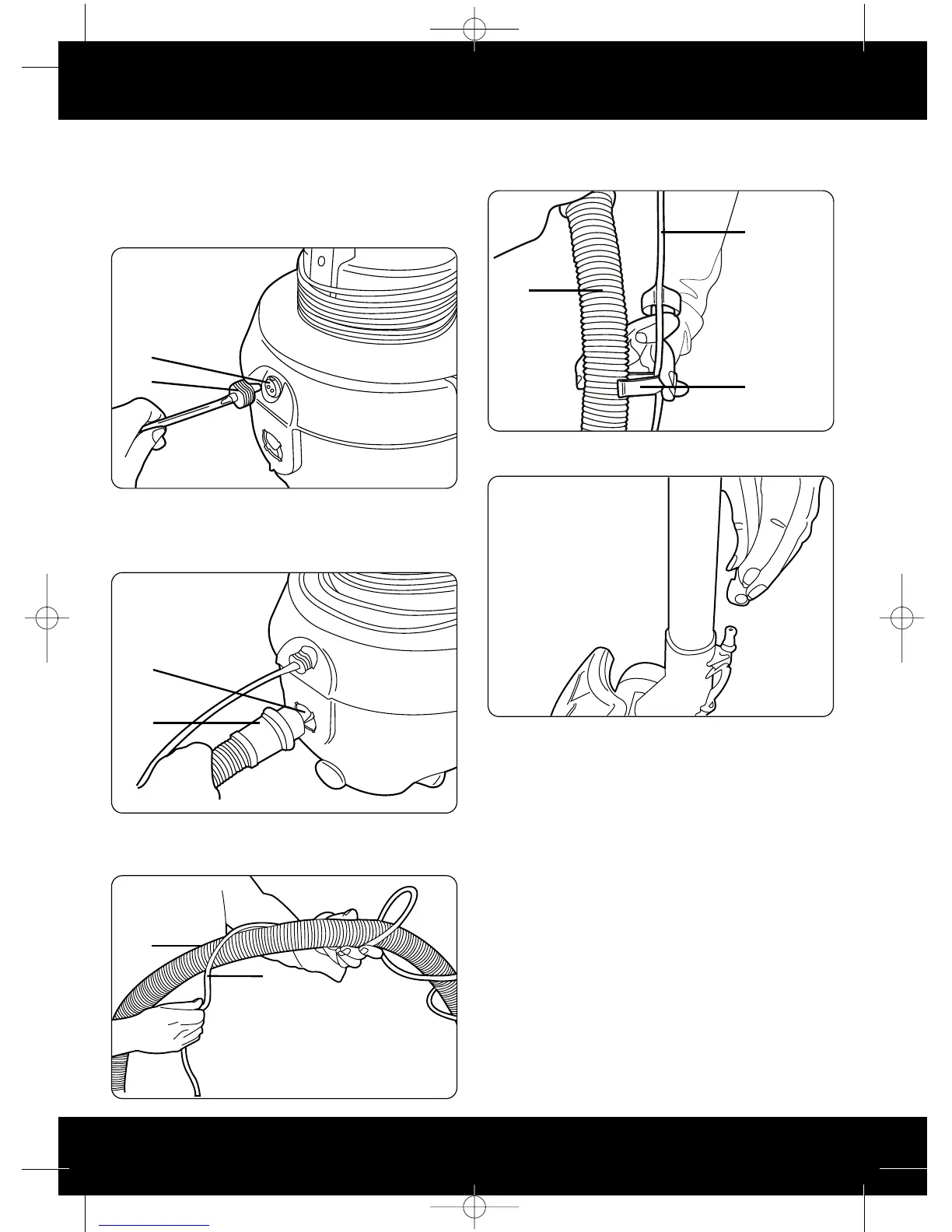

Push Solution Tube Cylinder Connector (A) firmly into
Solution Port (A1).
Twist Solution Tube Cylinder Connector (A1) a quarter
turn to the right to lock into place (Fig.5/1).
Push Hose Cylinder Connector (B) firmly into Hose
Connection Port (B1).
Twist to the right until Hose Cylinder Connector Locks
into place (Fig.5/2).
Wrap Solution Tube (A) around Hose (B). Ensure that
the solution tube is wrapped loosely enough to allow
the solution to flow freely through the tube (Fig.5/3).
After wrapping the tube around the hose, affix Solution
Tube (A) to Hose (B) using Clips provided (C) to hold it in
place (Fig.5/4).
Push end of Solution Tube onto connective valve
on the Wash Head / Upholstery Tool (Fig.5/5).
Fig.5/4
A
B
C
Fig.5/5
Fig.5/3
A
B
sembly
Fig.5/1
A
A1
Fig.5/2
B1
B
