Vaz VAZ-21213 - Water Pump Belt Tension Adjustment

36
Fig.2-61. Checking the water pump belt tension
Fig.2-63. Removing the impeller:
1 - puller; 2 - impeller

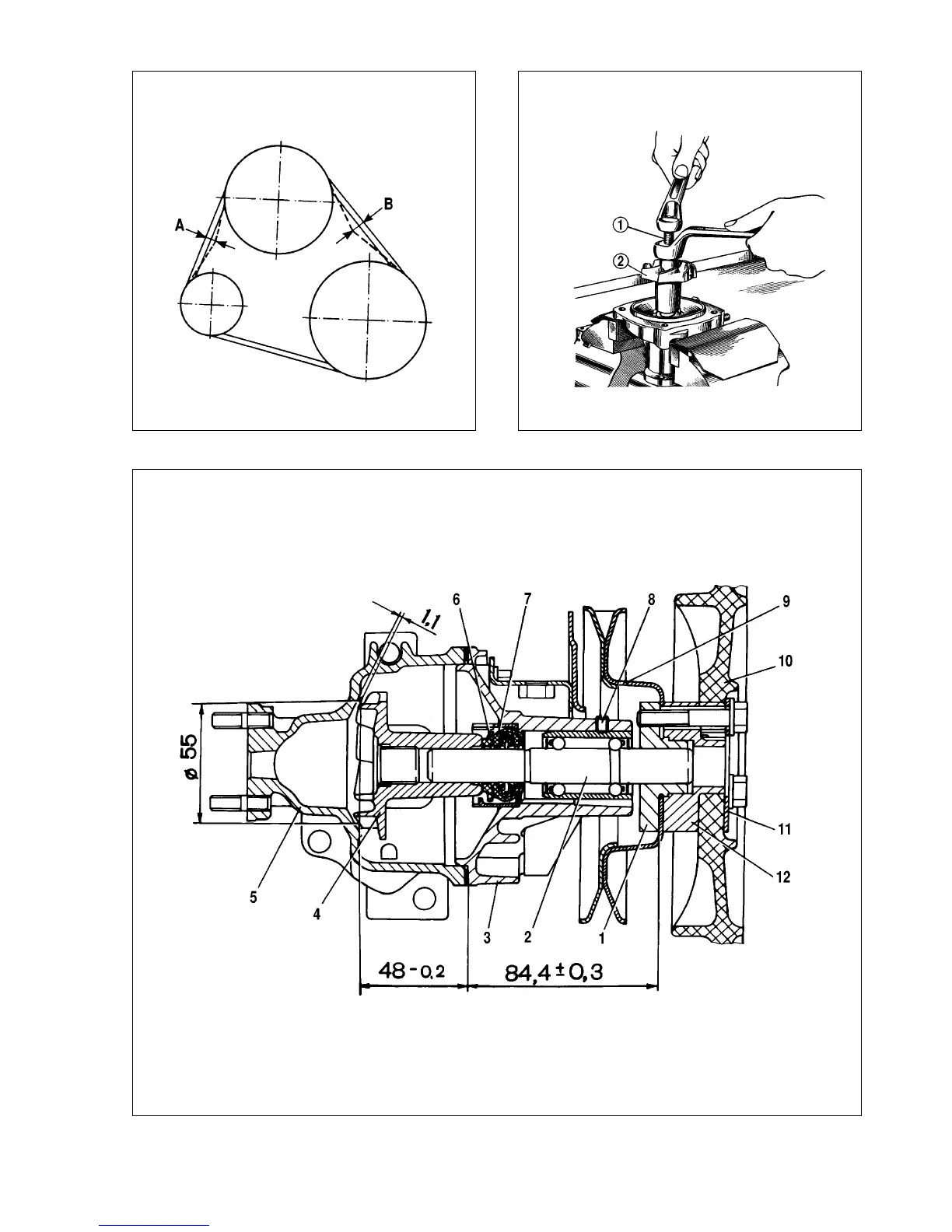

Fig.2-62. Sectional view of the coolant pump:
1 - pulley hub; 2 - shaft; 3 - cover; 4 - impeller; 5 - housing; 6 - thrust ring; 7 - oil seal; 8 - bearing stop screw; 9 - pulley; 10 - blower fan; 11 - cover plate; 12 - fan hub
