FC 3500 DC Fan Control
Document no.:150304 Version: 1.2
Page 3 of 23
1 Introduction
This document describes the working and control of the Heinen & Hopman FC 3500 DC.
The system can consist of the following parts:
1) FC 3500 DC: Main Panel
2) FC 3500 BP: Display-unit several types (Four button control)
3) FC500-sens: Temperature sensors (Water- Air- en Outside-sensor)
4) RH95-2: Humidity sensor (For Humidity control see Parm.35).

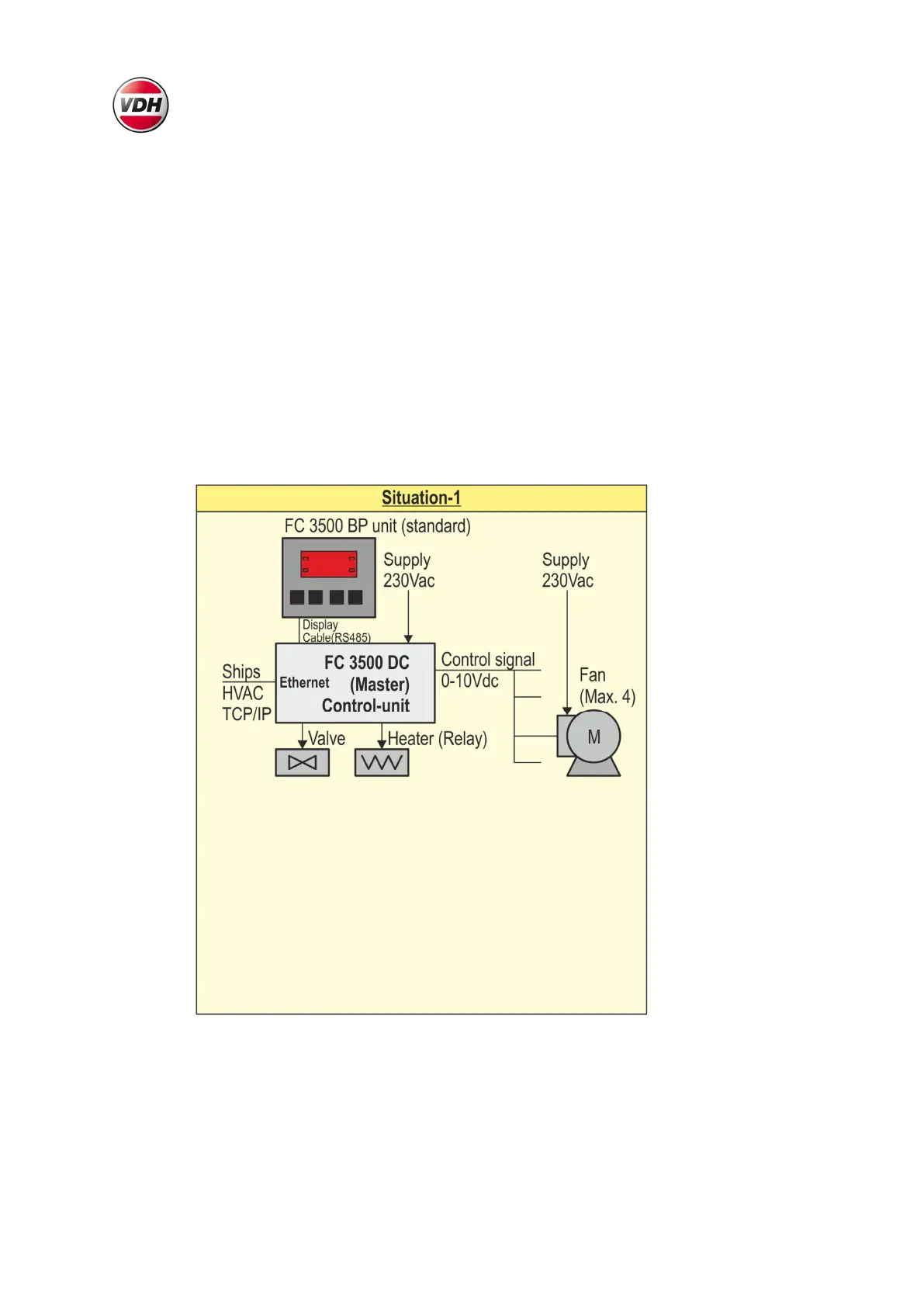

1.1 Overview FC 3500 DC System
