16 CD9303UB-CV RDS / MP3-CD / USB / AUX

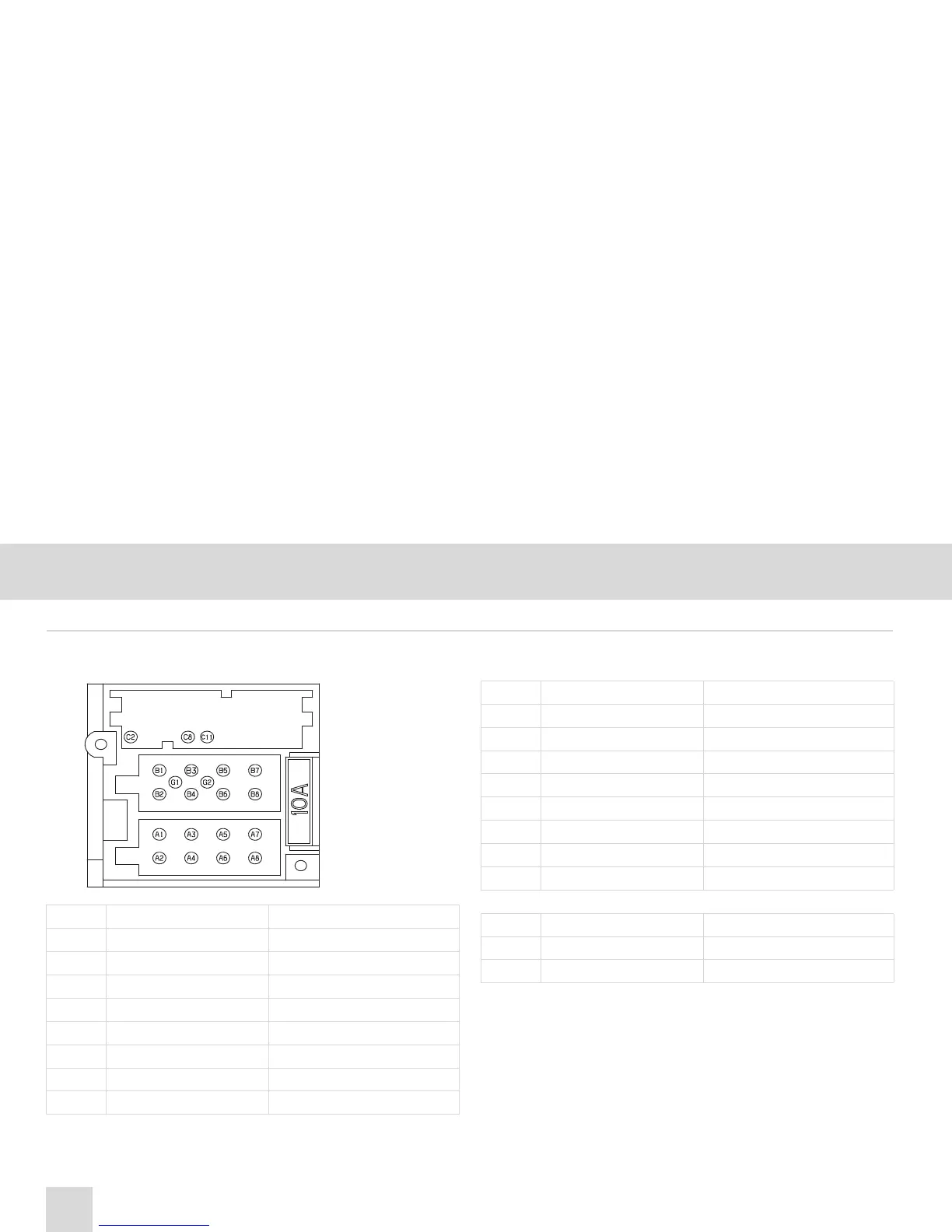

Wiring connection
쮿 Wiring connection
Pin No. Function Wire color
A1 N. C. -
A2 N. C. -
A3 Tel Mute Low Pink
A4 Ignition +12V Red
A5 Antenna Remote Blue
A6 Illumination + Orange
A7 Battery +12V Yellow
A8 Negative Ground Black
B1 Speaker Rear Right + Violet
B2 Speaker Rear Right - Violet Black Line
B3 Speaker Front Right + Gray
B4 Speaker Front Right - Gray Black Line
B5 Speaker Front Left + White
B6 Speaker Front Left - White Black Line
B7 Speaker Rear Left + Green
B8 Speaker Rear Left - Green Black Line
C2 Tel Mute High Pink Black Line
C8 Steering Remote + White Black Line
C11 Steering Remote - Blue Black Line
Pin No. Function Wire color
