VDO COMPASS - Installation of the VDO Compass; Installation of the Indicating Instrument

35
INSTALLATION
Installation of the VDO Compass
Please read the safety instructions on pages 25 and 26
before starting the installation.
Installation of the indicating instrument
- Make a hole, diameter 86 mm, at an adequate location.
- Clean the surroundings and remove the chips before inserting the
indicating instrument.
- Pass the cable connections to the indicating instrument through
the mounting hole and the union nut.
- Place the supplied black rubber washer on the instrument
back
- Connect the cables per wiring schematic to the indicating
instrument and insert the instrument into the mounting hole
(see „the electrical installation“).
- Fix the instrument with the union nut.

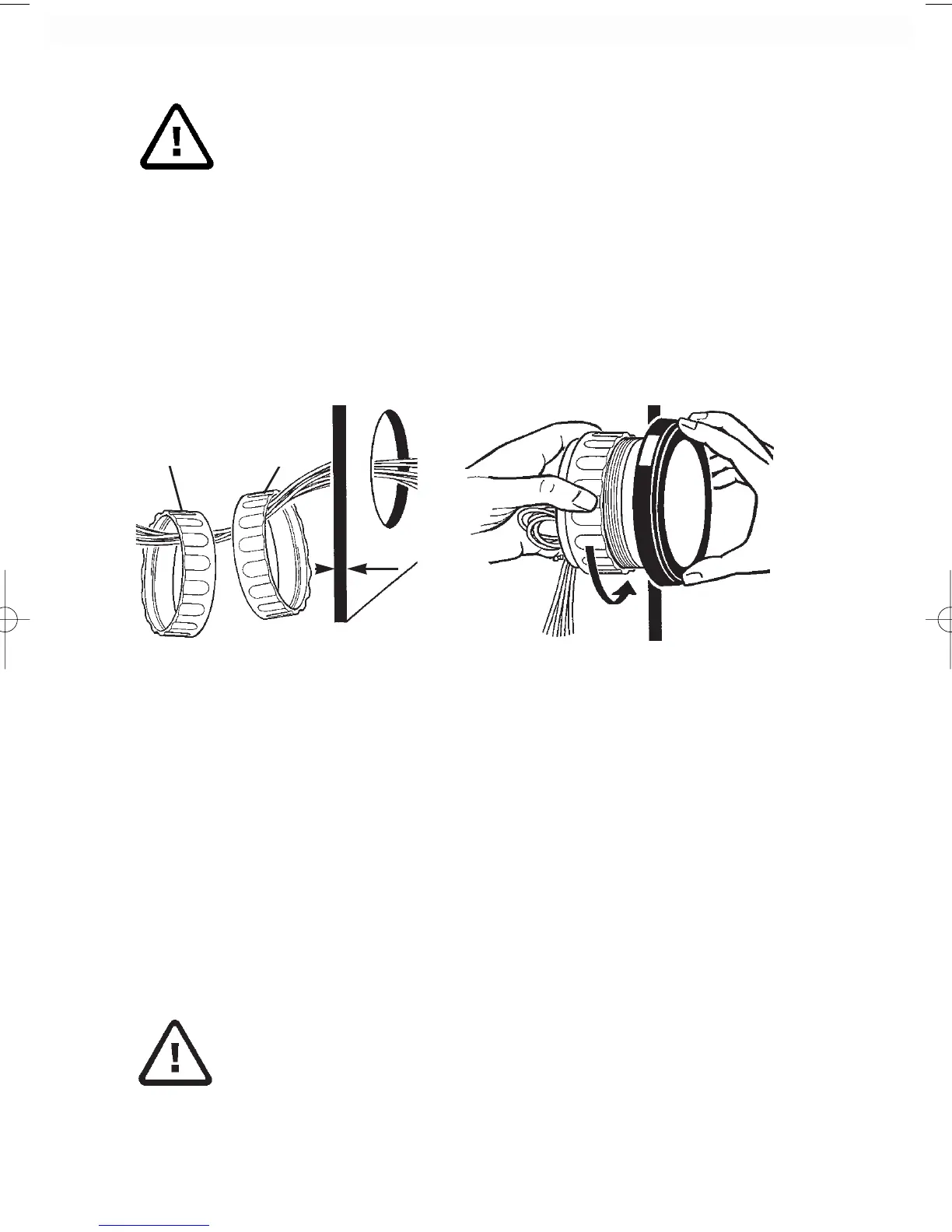

Mounting alternative A for wall thicknesses
d = 0.5 mm to 6.5 mm
Mounting alternative B for wall thicknesses
d = 6.5 mm to 16.5 mm
- Check that the union nut is only tightened hand-tight.
Mount the indicating instrument with threaded studs and
bracket (see page 36, top) if strong vibration must be expec-
ted at the location of the installation (for instance high-speed
boats).
or
A
B
d
