VDO COMPASS - System Components; Accessories; Spare Parts

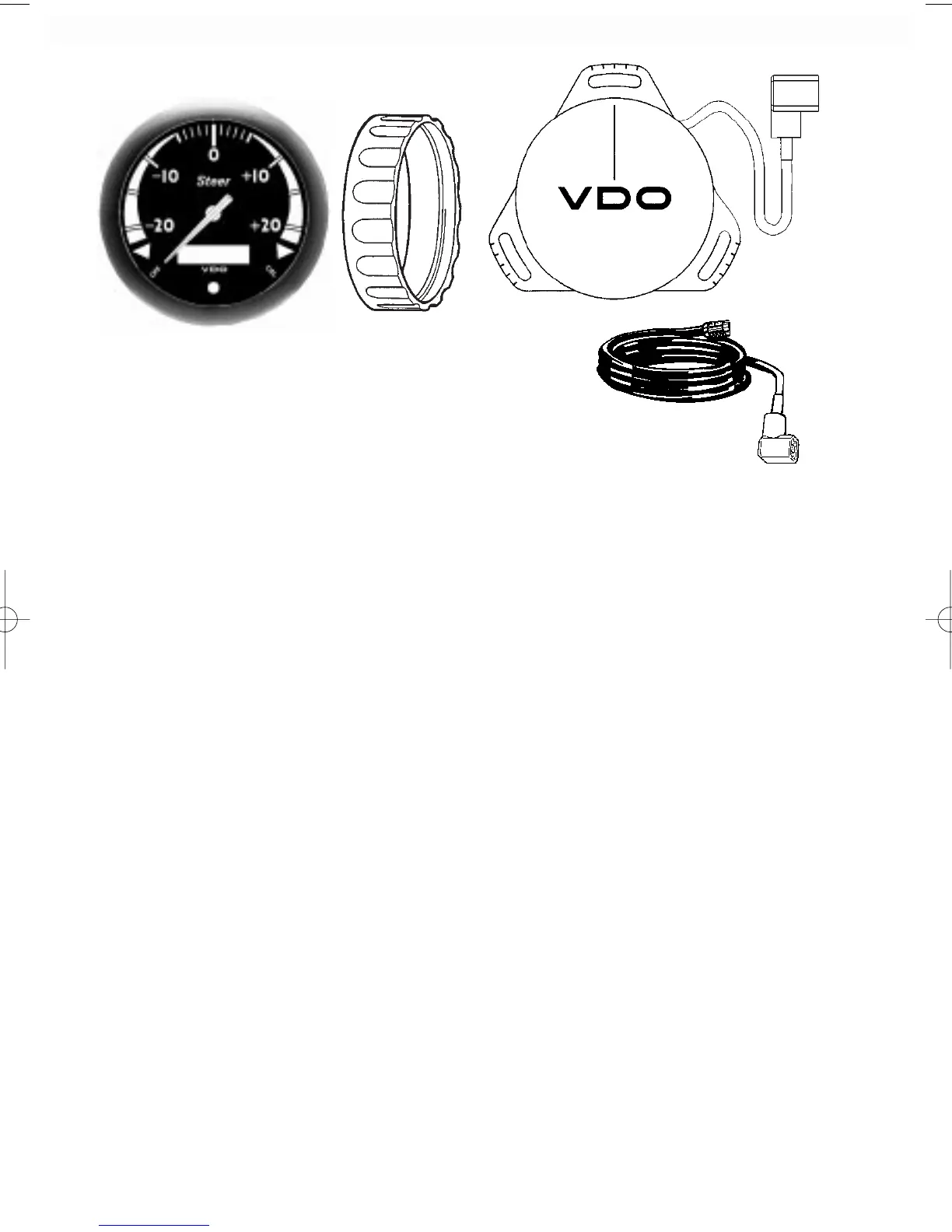

Components of the system
The supplied kit contains:
- Indicating instrument
- Union nut for instrument fixation
- Fluxgate compass sensor with connecting cable, length 1 m
- Warning label
- Red connecting cable compass sensor - indicating instrument,
length 10 m
- Installation and operation manual
Accessories (must be ordered separately):
- Fixation kit (bracket) N05 800 792
- Lighting kit (24 V / 1.2 W) N05 800 550
- 2nd indicating instrument VDO Compass N01 512 002
Spare parts:
- Lighting kit (12 V / 1.2 W) N05 800 552
- Fluxgate compass sensor N01 530 302
Other spare parts are available on request.
