INSTALLATION

Connection of a secondary indicating instrument

Install the power supply to the second instrument in the same way as for

the first one (see page 38). The power supply of both indicating instru-

ments must be switched on at

the same time.

The sensor can be connected

to any of both indicating instru-

ments

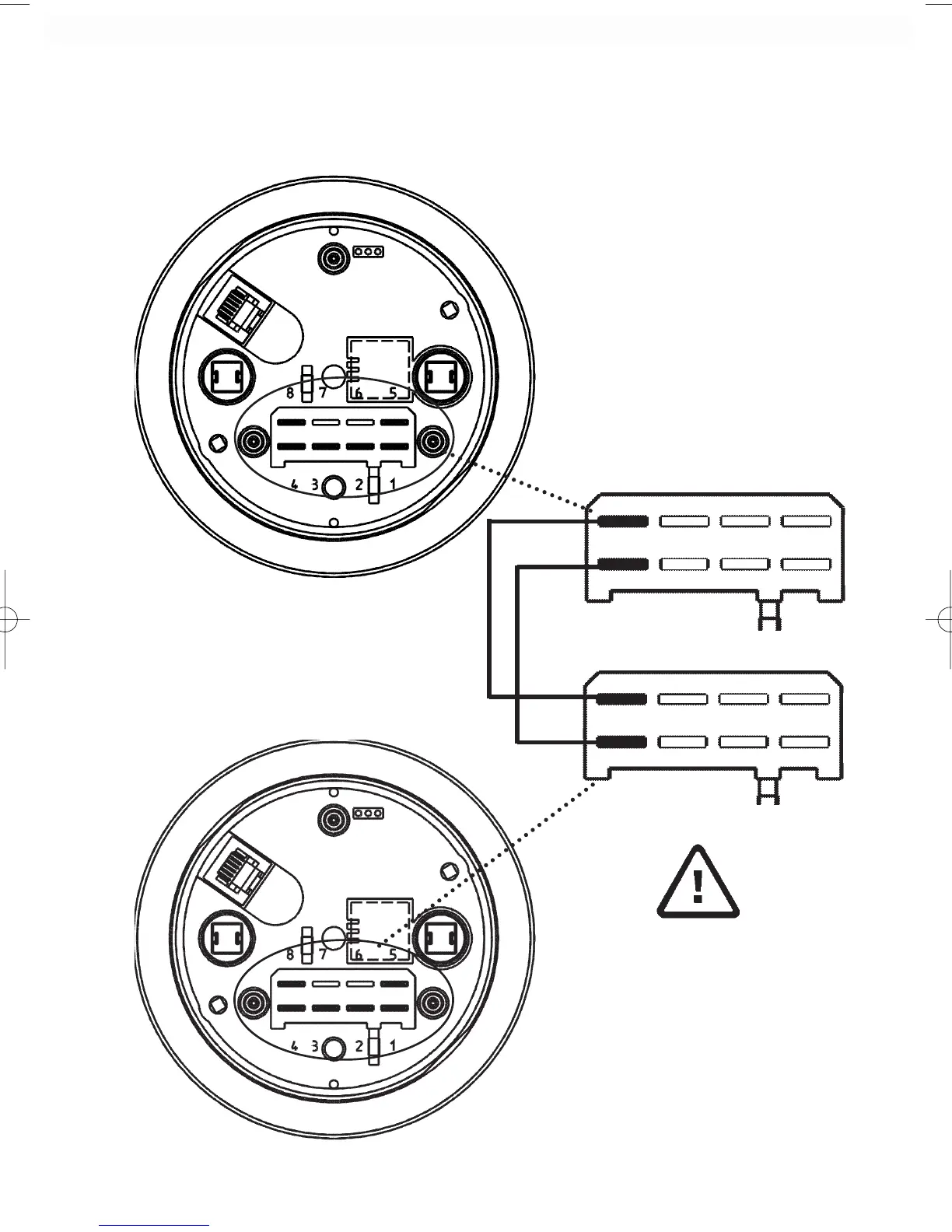

The connection between main

indicator and secondary indi-

cator is made as shown be-

low.

Main indicating instrument

Secondary indicating instrument

Perform the automatic com-

pensation „CAL“ on one indi-

cating instrument only.

This also applies for later in-

stallation of a second or a third

instrument.
