INSTALLATION
Temporarily install the sensor and make the first compensation run. A
different location must be selected If several trials are not successful.
After finding an adequate location fix the sensor with three brass or
stainless steel screws to allow a rotation of the sensor for adjustment at
a later time (see page 33).
Mark the location of the sensor with the supplied warning label.
Never use steel screws for the installation (magnetism).
The sensor must be installed on a horizontal surface in hori-
zontal position.
The marking bar must be parallel to the ship axis, directed to
the bow.
The automatic compensation must be repeated after chan-
ging the cargo.
bow
Max. dia. 120 mm
Hole circle dia. 105 mm
Max. height 40 mm
Max. dia. 90 mm

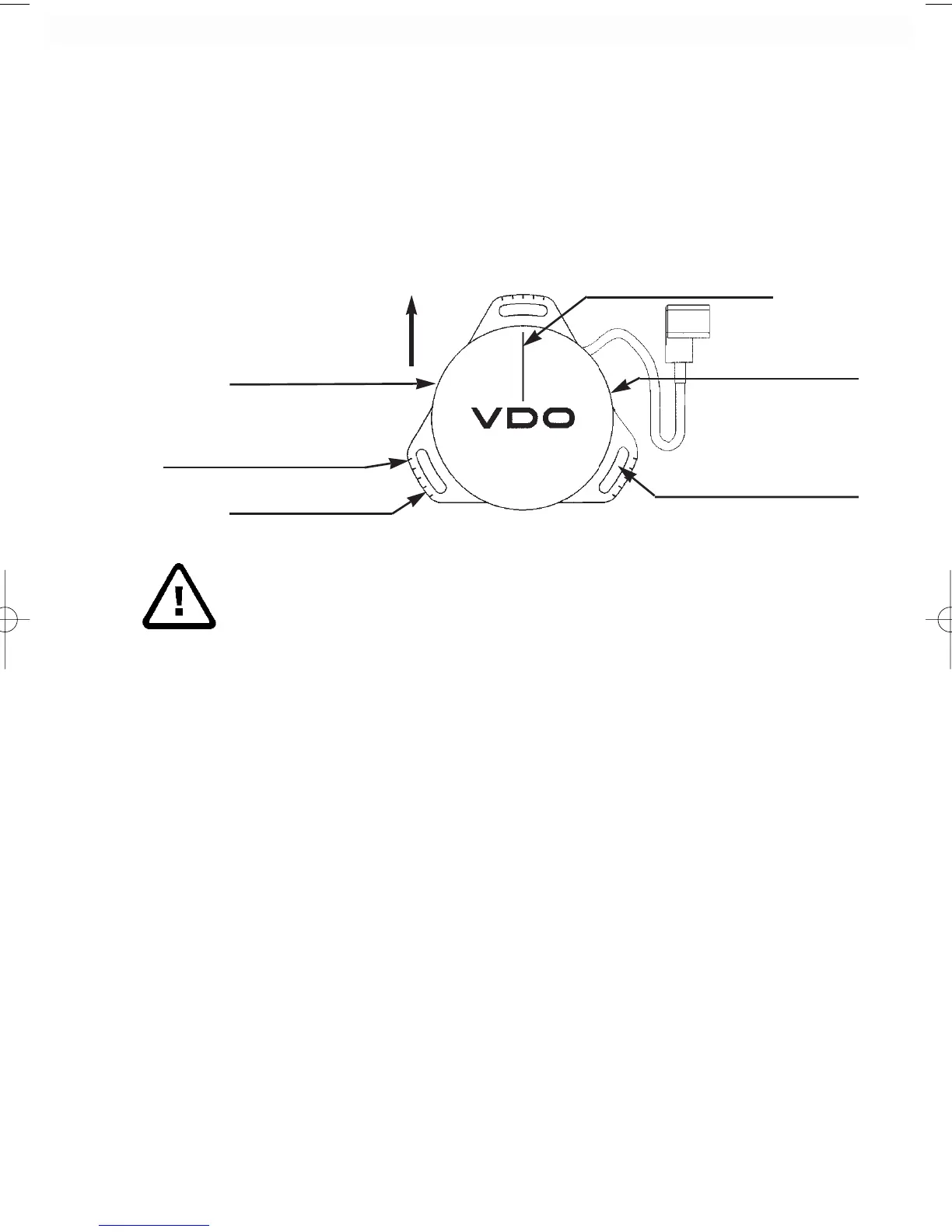

View from above:
Angle marks for sensor
positioning (5°)
Marking bar ship axis
