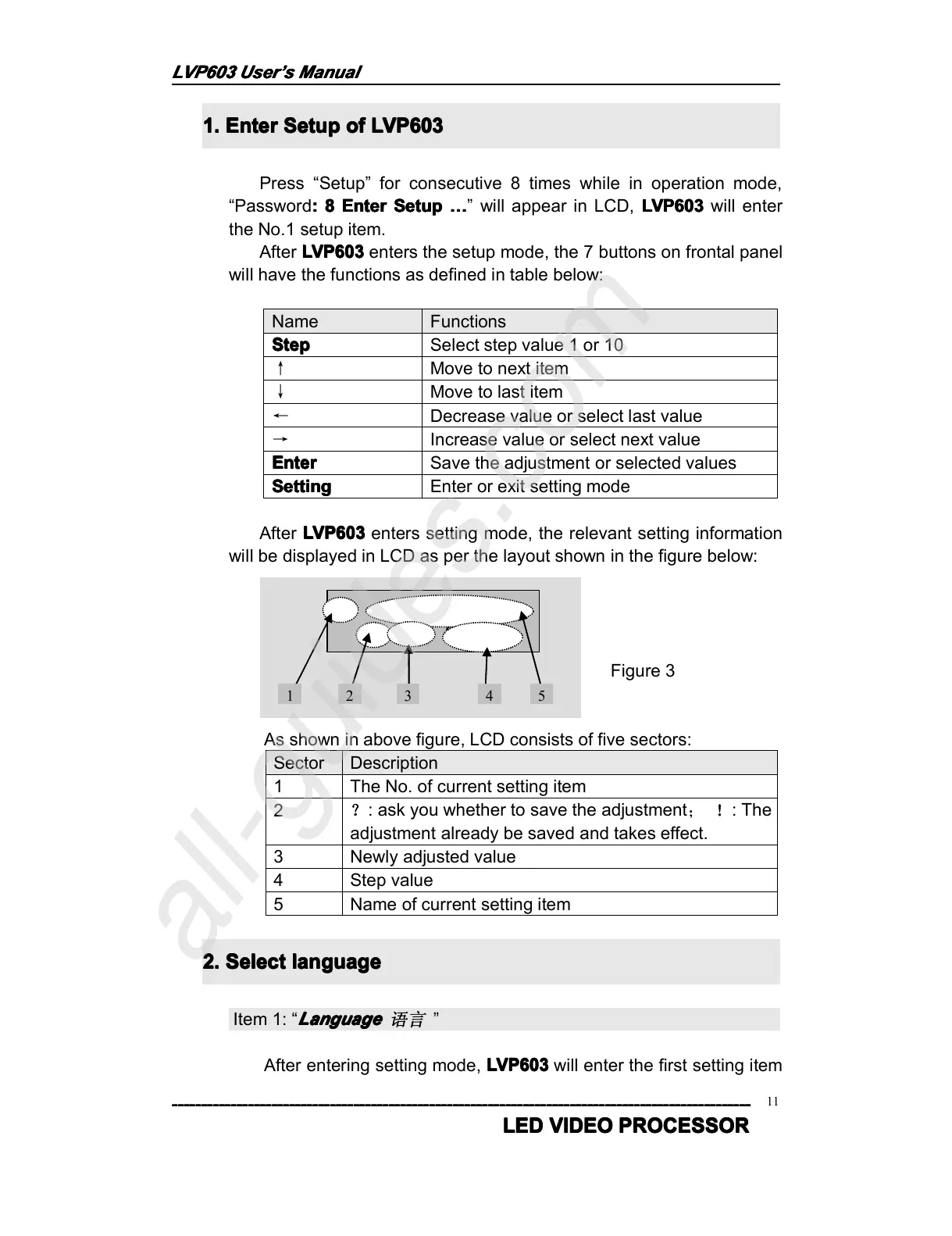

Press “ Setup ” for consecutive 8 times while in operation mode,
“ Password :
:
:
: 8
8
8
8 Enter
Enter
Enter
Enter Set
Set
Set
Set up
up
up
up …
…
…
… ” will appear in LCD, LVP603
LVP603
LVP603
LVP603 will enter
the No.1 setup item.
After LVP603
LVP603
LVP603
LVP603 enters the setup mode, the 7 buttons on frontal panel
will have the functions as defined in table below:
Name Functions
Step
Step
Step
Step Select step value 1 or 10
↑ Move to next item
↓ Move to last item
← Decrease value or select last value
→ Increase value or select next value
Enter
Enter
Enter
Enter Save the adjustment or selected values
Setting
Setting
Setting
Setting Enter or exit setting mode
After LVP603
LVP603
LVP603
LVP603 enters setting mode, the relevant setting information
will be displayed in LCD as per the layout shown in the figure below:
Figure 3
As shown in above figure, LCD consists of five sectors:
Sector Description
1 The No. of current setting item
2 ？
: ask you whether to save the adjustment
； ！
: The
adjustment already be saved and takes effect.
3 Newly adjusted value
4 Step value
5 Name of current setting item
2.
2.
2.
2. Select
Select
Select
Select language
language
language
language
Item 1: “ Language
Language
Language
Language 语言 ”
After entering setting mode, LVP603
LVP603
LVP603
LVP603 will enter the first setting item
2 : Hori_Start
？ 200 Stp=10
1 2 3 54
