Vdwall LVP - Specifications; Inputs; Outputs; Others

LVP603
LVP603
LVP603
LVP603 User
User
User
User ’
’
’
’ s
s
s
s Manual
Manual
Manual
Manual
---------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------
LED
LED
LED
LED VIDEO
VIDEO
VIDEO
VIDEO PROCESSOR
PROCESSOR
PROCESSOR
PROCESSOR
22
V.
V.
V.

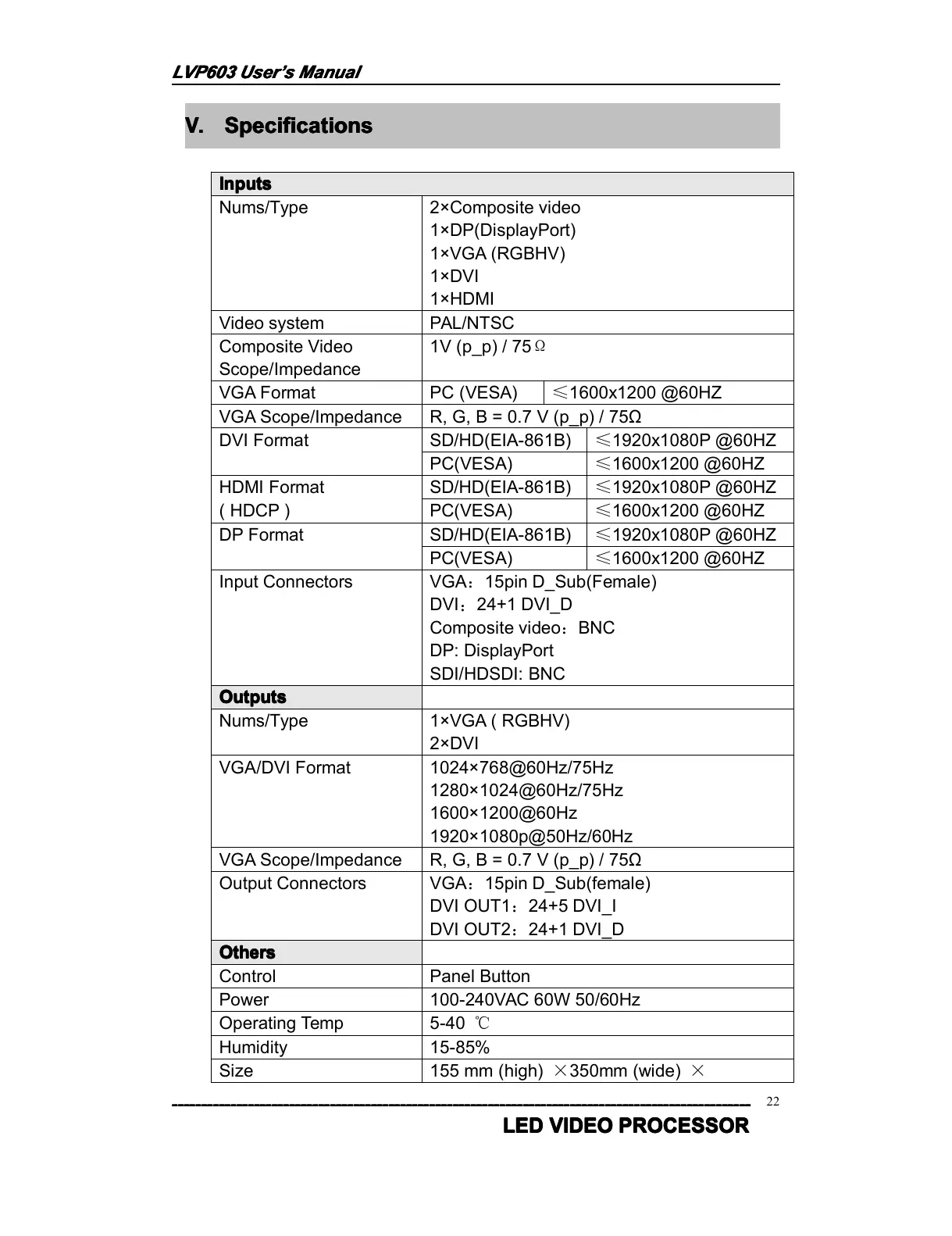

V. Specifications
Specifications
Specifications
Specifications
Inputs
Inputs
Inputs
Inputs
Nums/Type 2 × Composite video
1 × DP(DisplayPort)
1 × VGA ( RGBHV )
1 × DVI
1 × HDMI
Video system PAL/NTSC
Composite Video
Scope/ Impedance
1V (p_p) / 75 Ω
VGA Format PC (VESA) ≤ 1600x1200 @60HZ
VGA Scope/ Impedance R, G, B = 0.7 V (p_p) / 75 Ω
DVI Format SD/HD(EIA-861B) ≤ 1920x1080P @60HZ
PC(VESA) ≤ 1600x1200 @60HZ
HDMI Format
( HDCP )
SD/HD(EIA-861B) ≤ 1920x1080P @60HZ
PC(VESA) ≤ 1600x1200 @60HZ
DP Format SD/HD(EIA-861B) ≤ 1920x1080P @60HZ
PC(VESA) ≤ 1600x1200 @60HZ
Input Connectors
VGA
：
15pin D_Sub(Female)
DVI
：
24+1 DVI_D
Composite video
：
BNC
DP: DisplayPort
SDI/HDSDI: BNC
Outputs
Outputs
Outputs
Outputs
Nums/Type 1 × VGA ( RGBHV)
2 × DVI
VGA /DVI Format 1024 × 768@60Hz/75Hz
1280 × 1024@60Hz/75Hz
1600 × 1200@60Hz
1920 × 1080p@50Hz/60Hz
VGA Scope/Impedance R, G, B = 0.7 V (p_p) / 75 Ω
Output Connectors VGA ： 15pin D_Sub( female )
DVI OUT1 ： 24+ 5 DVI_ I
DVI OUT2 ： 24+ 1 DVI_ D
Others
Others
Others
Others
Control Panel Button
Power 100-240VAC 60W 50/60Hz
Operating Temp 5 - 40 ℃
Humidity 15-85%
Size
155 mm (high)
×
350mm (wide)
×
