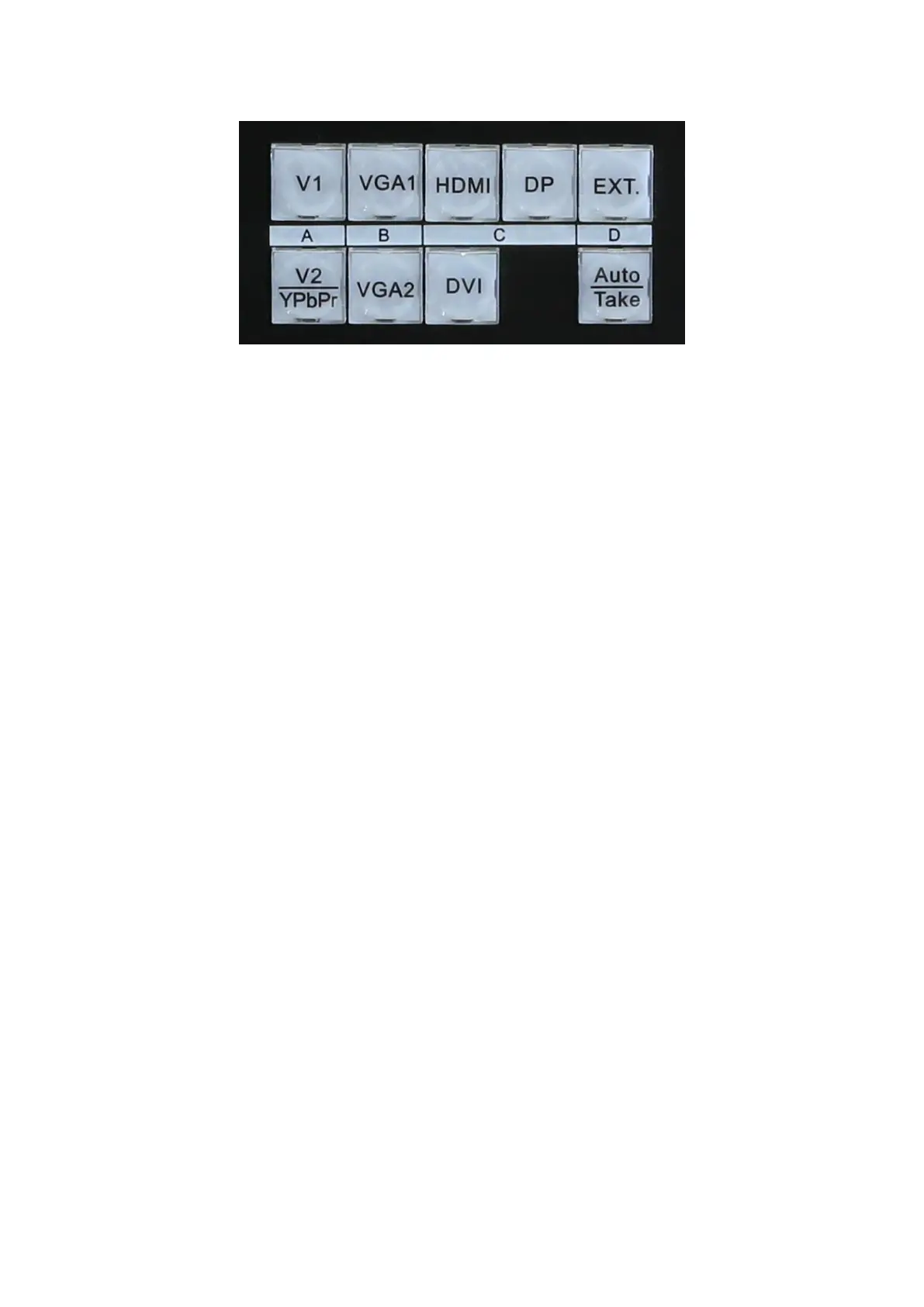

1.1 LVP615 has 9 channels input ports, V1, VGA1, VGA2,HDMI, DP, V2 / YPbPr, DVI
and EXT, if you want LVP615 outputs which vide source press relative signal key;
1.2 These input ports be divided to 4 groups A B C D (the source from same
group can’t select as PIP source, and don’t have seamless and fade in / out switch
function);
A group: V1 and V2 / YPbPr;
B group: VGGA1 and VGA2;
C group: HDMI, DP and DVI;
D group: EXT;
1.3 V2 / YPbPr means V2 and YPbPr share the same input port, when you want to use
which one, you can configure which one first in user setup menu;
1.4 EXT is extended input port, which can be Video, SDI or DVI input port, ( LVP615 is
Video port, LVP615S is SDI port, LVP615D is DVI port);
1.5 Auto / Take is quick switch and Auto adjustment button, ( when you open
Preselect Take switch function the button is available for quick switch; Auto
when you connect VGA video source then the video on LED screen not in the
