1.2 ARTICLE DESCRIPTION AND PARTS LIST
1.1 SAFETY WARNING
1.Do not (dis)assemble or modify the device yourself.
2.The installation uses fuses of 3.15A / 250V.
3.This appliance can be used by children aged from 10 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
potential hazards. Children must not play with the appliance. Cleaning and user maintenance
shall not be made by children.
4.Do not use the appliance if the cord, cable or plug is damaged or if the appliance has been
dropped or damaged in any way. The device should then be returned to the importer or
manufacturer for a comprehensive examination, repair or adjustment.
5.Switch off the appliance before cleaning and for normal maintenance.
6.Connect the appliance to a 220V mains socket with earthing. The contact must not show any
defects or damage and must be earthed. The appliance must be installed in accordance with the
wiring regulations. Unplug the power cord if you notice any strange noises or smells.
7.Do not insert objects such as sticks or fingers into the openings.
This air conditioner is designed and built to be installed in vehicles such as motorhomes and
caravans to optimize the indoor temperature. In hot weather, the device supplies cool and
dehumidified air; in cold weather, warm air is supplied. The temperature is adjustable in both
applications.The type number and batch code are printed on the outside of the device.

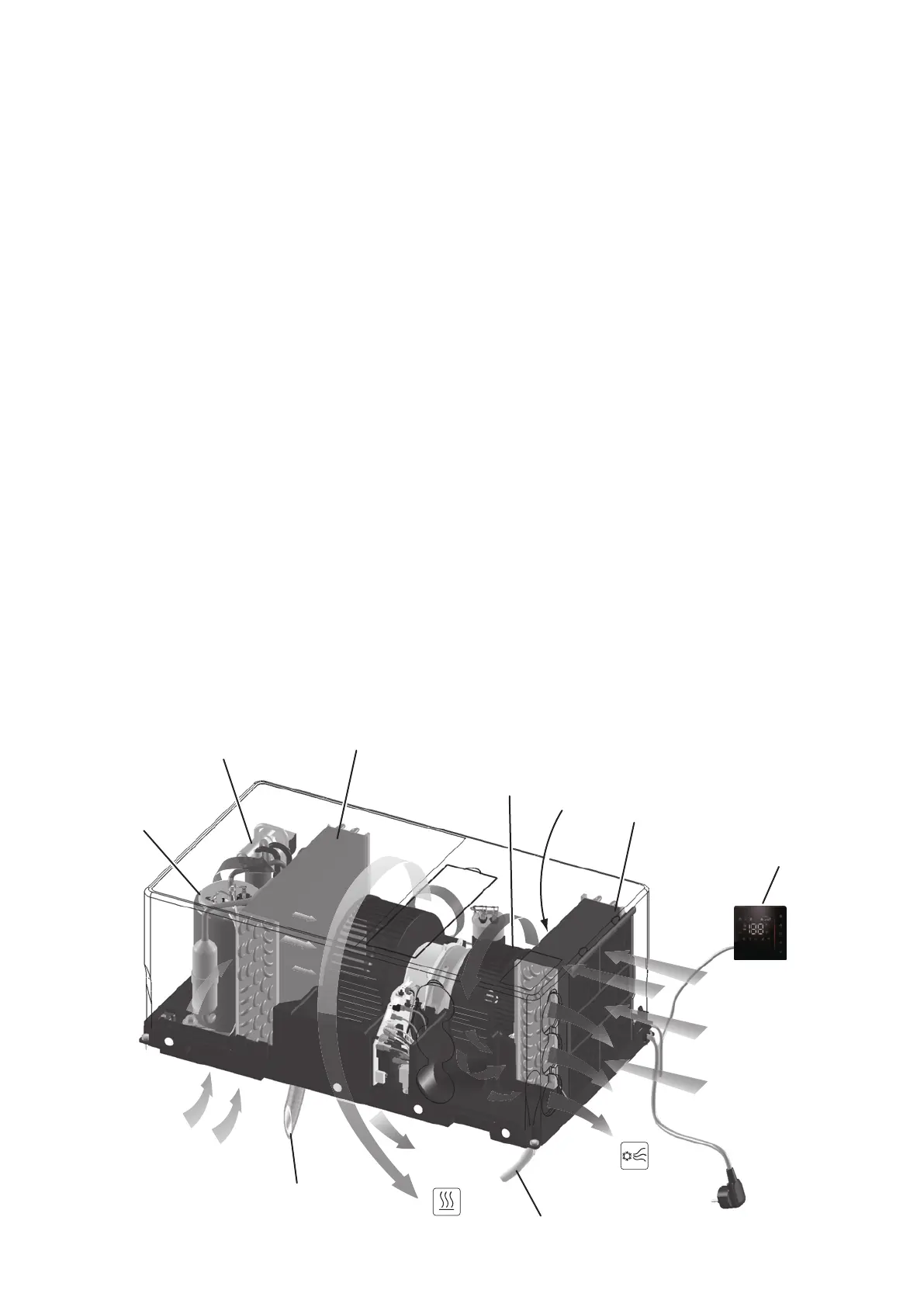

Parts list:
Fan blower(C)
Flow of air introduced from the outside
hot air
expelled
treated air
reintroduced
inside the vehicle
flow of air
drawn from
inside the
vehicle
condensation drain
in heat pump
condensation drain
Wall pad
Evaporator (D)
Heating element (E)
Condenser (B)
Compressor (A)
4-way
valve (F)
To Next Page
