Thank you for selecting the Vechline 1012/2024 series for PWM solar charge controller. Please
read this manual carefully before using the product and pay attention to the safety information
1.GENERAL INFORMATION
LS series solar charge controller adopts the most advanced digital technique and operates fully
automatically. It is ideal for extreme environments with corrosion, dust, water etc and has various
unique functions：
Electronic protection: Over charging, over discharging, overload, short circuit and reverse
protection of solar module
High efficient Series PWM charging, increase the battery life time and improve the solar
system performance
Widely used, automatically recognize day/night
Battery LED indicate battery status
Industrial design, wide application range
Digital tube menu, only one key solve all setting simply
Intelligent timer function with 1～13 hours option
IP67 protection

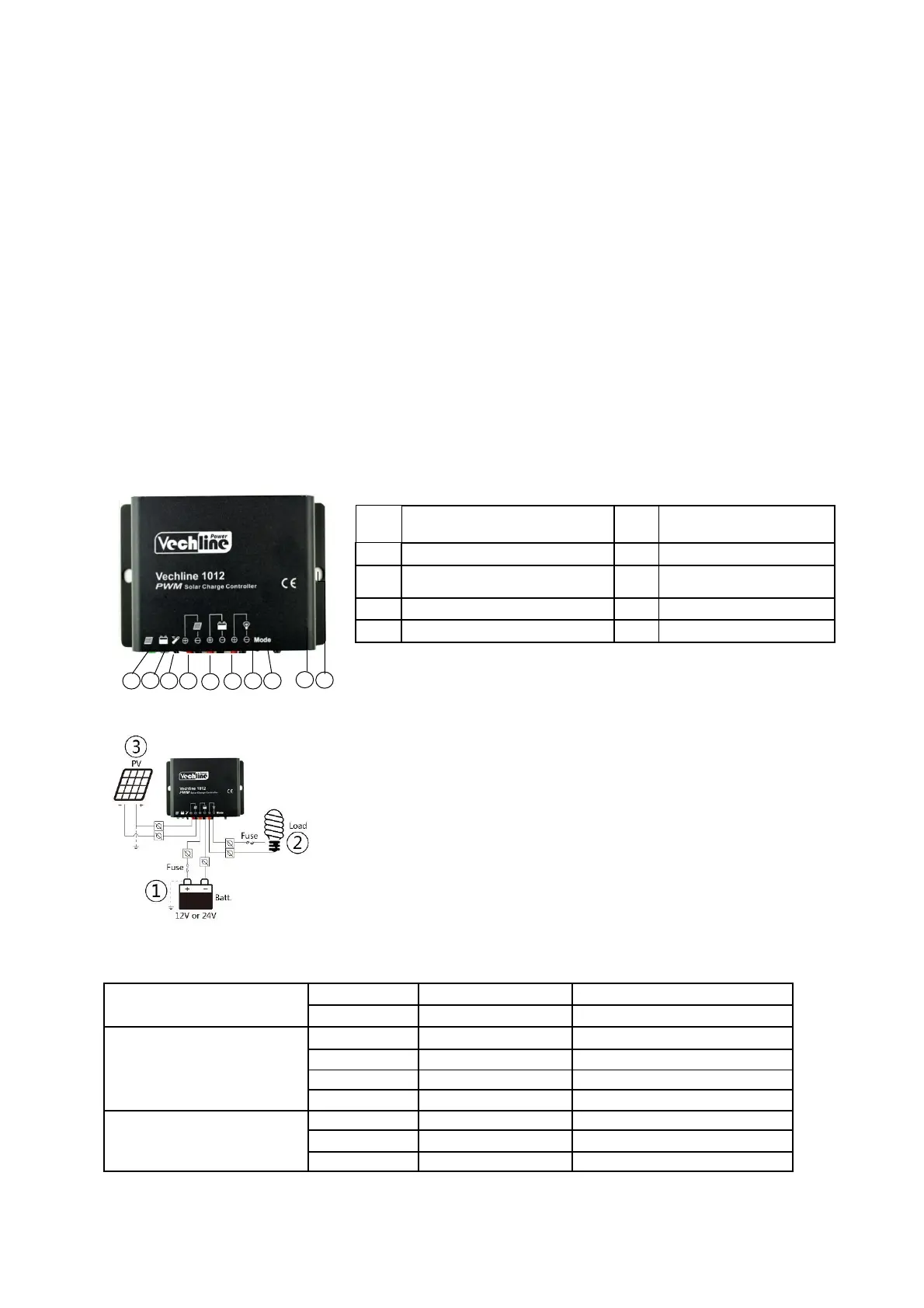

2. FEATURES AND MOUNTING
Mounting
3. INDICATORS, DESCRIPTIONS AND OPERATIONS
Indicator status and description.
Charging Status LED
indicator
Battery Status LED
indicator
Radix Point of Digital tube
1) Connect components to the charge controller in the sequence as
shown above picture and pay much attention to the “+” and “-”.
Always power the battery firstly.
2) After power the battery, check the battery indicator on the
controller, it will be green. If it’s not green, please refer to chapter 4.
3) The battery fuse should be installed as close to battery as
possible. The suggested distance is within 150mm.
Charging Status LED
indicator
Battery Status LED indicator
