Installation Guide Mag Sump Sensor Installations - Dispenser Pan Sump
21

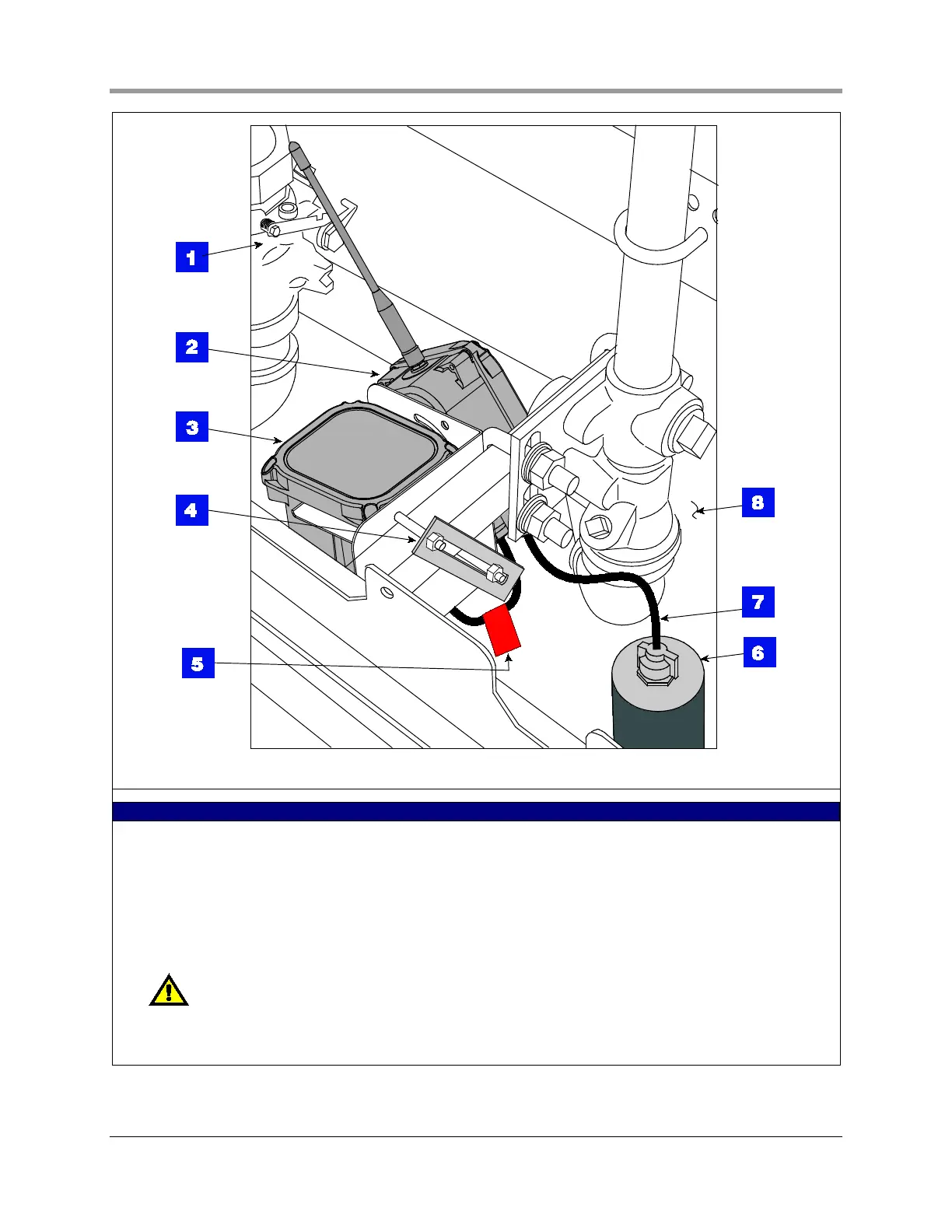

Figure 20. Example transmitter installation in dispenser sump (in operational configuration)
LEGEND FOR NUMBERED BOXES IN FIGURE 20
1. Shear valve
2. Transmitter
3. Battery pack
4. Using 1 x 6 slotted flat bar and two ¼ x 3 bolts from kit, clamp battery support bracket to square tubing support.
5. Battery caution label attached to battery cable (2 places)
6. Dispenser mag sump sensor
7. Sensor cable
NOTE: Intrinsically safe wiring shall be installed in accordance with Article 504-20 of the NEC,
ANSI/NFPA 70.
8. Dispenser sump
