POS App Guide DIM Installation Examples

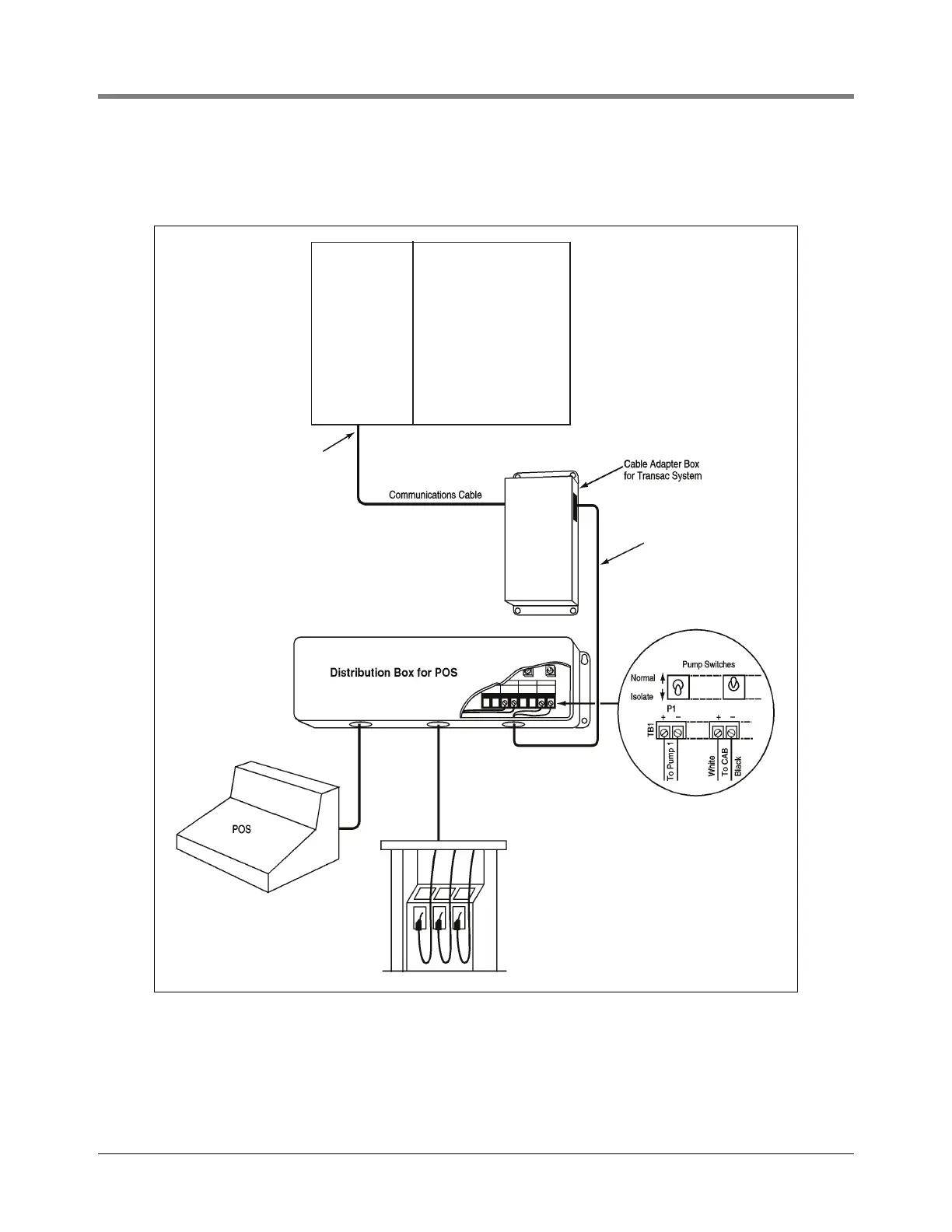

WIRING DIAGRAM FOR A TRANSAC CURRENT LOOP INTERFACE

A PA0133 distribution box is shown in Figure 3 below. Other box models are slightly different.

Figure 3. Transac Series Current Loop Interface

Shielded 2 Wire

Flying Lead Cable

Connects to

CDIM

TLS Console

401-8.eps
