POS App Guide DIM Installation Examples
24

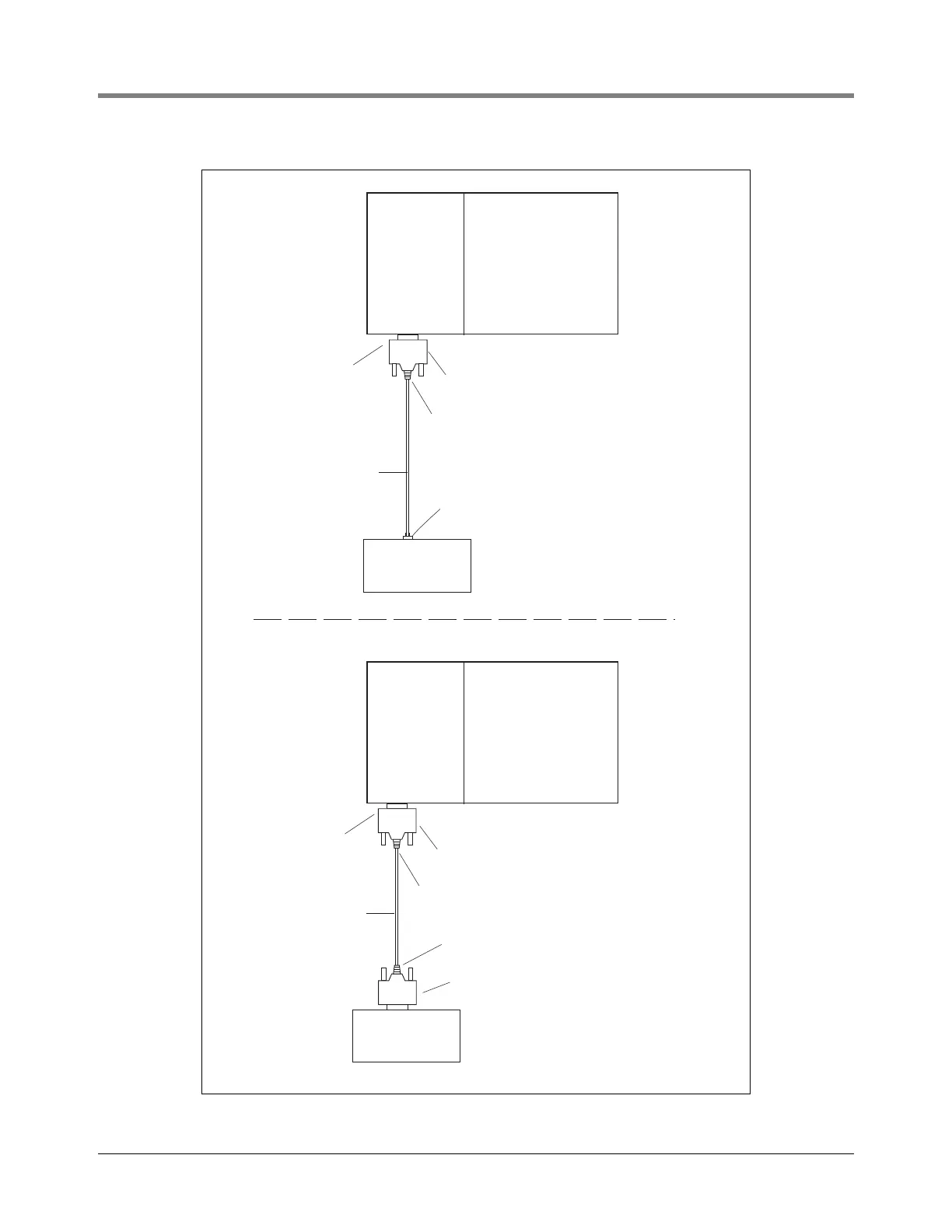

Figure 6. Example G-Site Installations
Tank
Gauge
25 pin D / RJ-45 Adapter
(Q13180-03/331138-001)
PC G-SITE
RJ45 Modular Cable
Connects
to EDIM
Connects
to EDIM
25 pin D / RJ-45 Adapter
(Q13180-03/331138-001)
G-Site
C-2 G-SITE
Tank
Gauge
Connect RJ-45 plug into
25 pin D / RJ-45 Adapter (331138-002)
Connect RJ-45 plug into
25 pin D / RJ-45 Adapter (331138-001)
Connect RJ-45 plug into
25 pin D / RJ-45 Adapter (331138-001)
Connect 25 pin D / RJ-45 Adapter (331138-002)
to Tank Guage port
RJ45 Modular Cable
Diagram A
Diagram B
Connect RJ-45 plug
directly to Tank Mon port
TLS Console
TLS Console
401-11.eps
