Veeder-Root TLS-450PLUS - Page 46

POS App Guide DIM Installation Examples
41

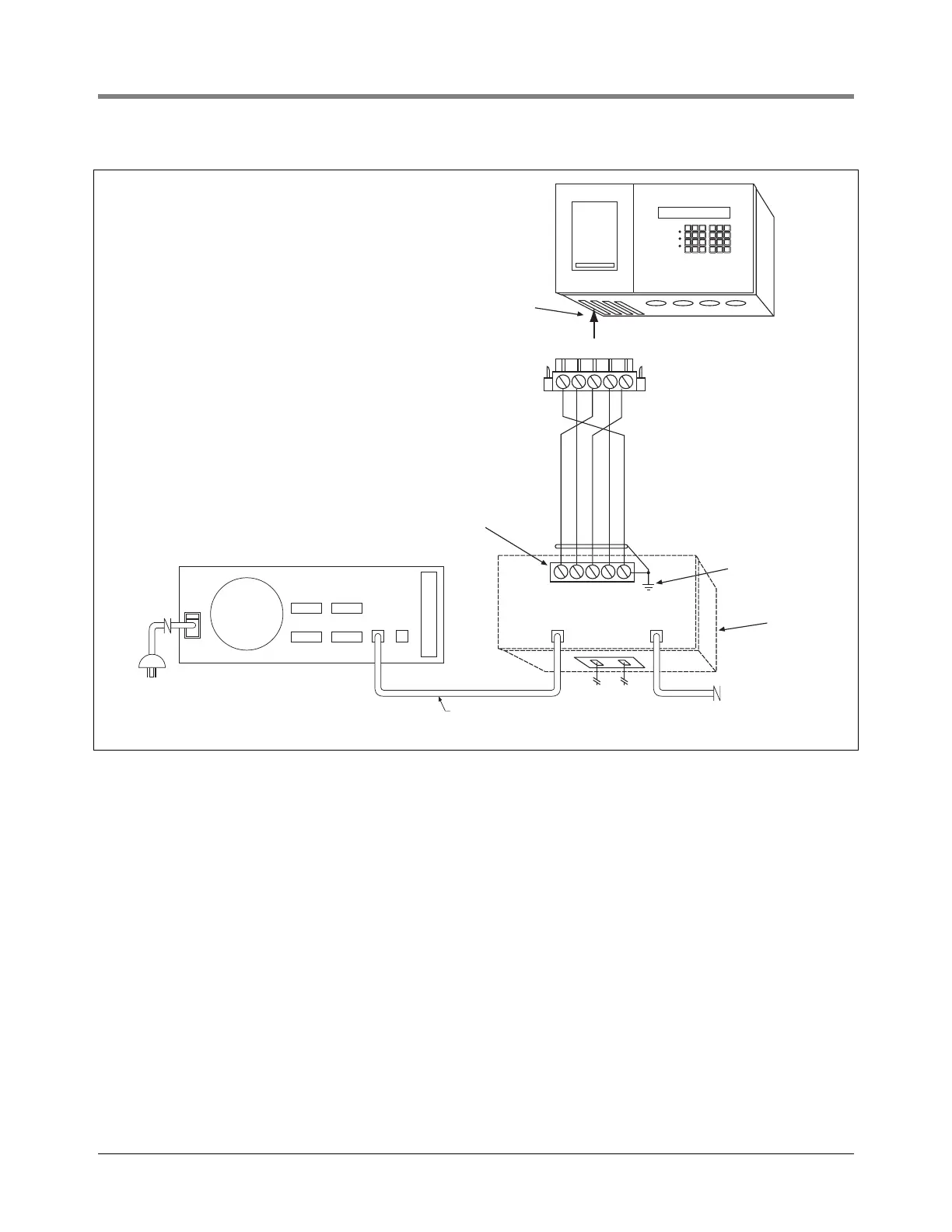

Figure 23. Gasboy Console Loop Connection
To Regulated
Outlet
Port 1
Port 0
Port 3
Port 2
Cons
Island
AC
Ground
8-foot RS-422 Phone Cable
(Supplied by Gasboy)
SITE CONTROLLER II
To Console or other
Junction Boxes
ALARM
WARNING
POWER
GND BLUE/WHITE STRIPE WHITE/BLUE STRIPE ORANGE/WHITE STRIPE WHITE/ORANGE STRIPE
401-27.eps
To Plug-In Connector
on LDIM
123 45
TX+
GND TX- TX+ RX- RX+
123 45
TX- RX+ RX- GND
Terminal block inside
RS-422 junction box
Gasboy P/N C05020
Cable shield
C05020
Junction Box
TLS-350R Console
