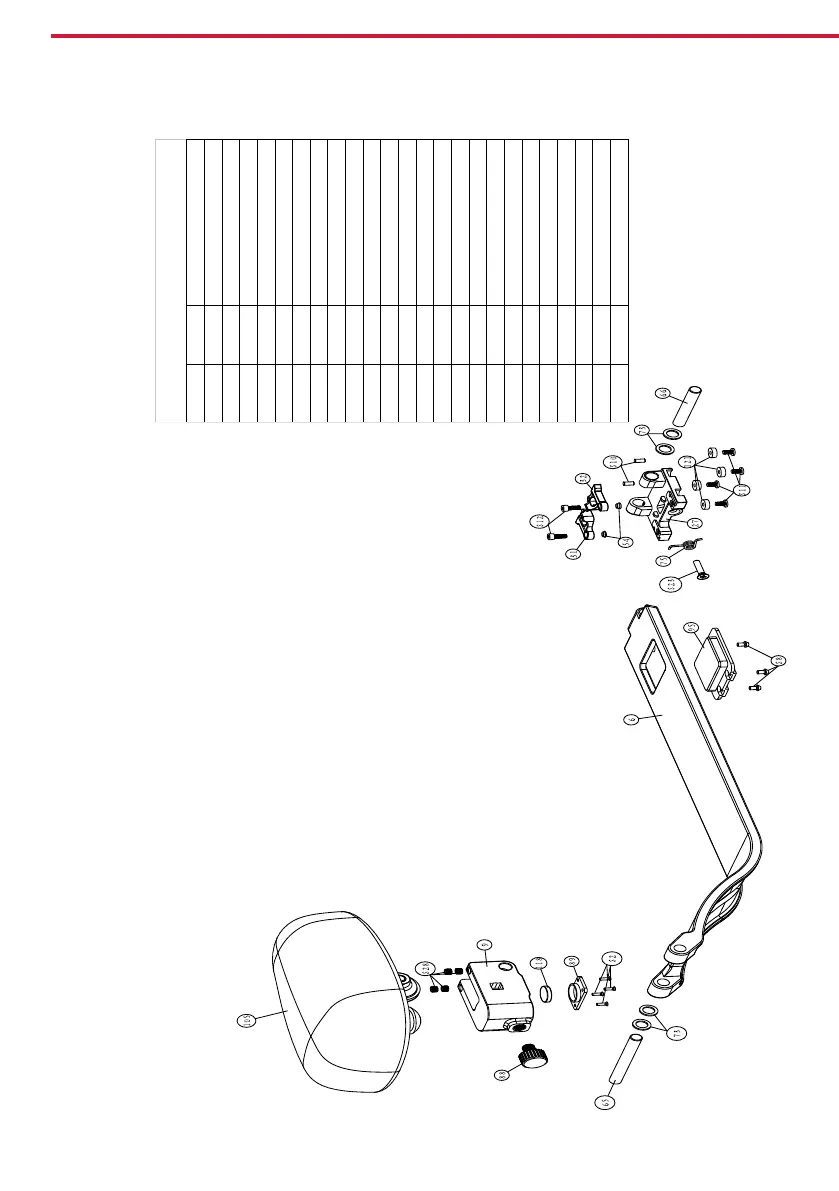

17. DRAWING PARTS AND LIST OF ARTICLE NUMBERS
* For the Saddle sets , all part # will be added "S" in front of the icon code .
Saddle sets
No.
Part#
Part name
1
S6
Saddle Supporting
2
S95
Rubber cover
3
S66
Slider axis
4
S73
POM axis base
5
S27
Saddle Slider
6
SS12
Screw
7
S31
Slider limiting block-Left
8
S32
Slider limiting block-right
9
SS12
Screw
10
SS11
Screw
11
S121
Slider Bearing
12
S75
Spring
13
SS23
Screw
14
S65
Axis
15
S105
Saddle set
16
S9
Saddle fixing base
17
S88
Fixing knob
18
SS28
Fixing screw
19
S118
Magnet
20
S89
Magnet base
21
SS2
Screw
22
S54
Screw seelve
23
SS8
Screw
24
S10
Screw
L
*For the Saddle sets, all the pare # will added “S“ in front the Icon code
