M4
M2

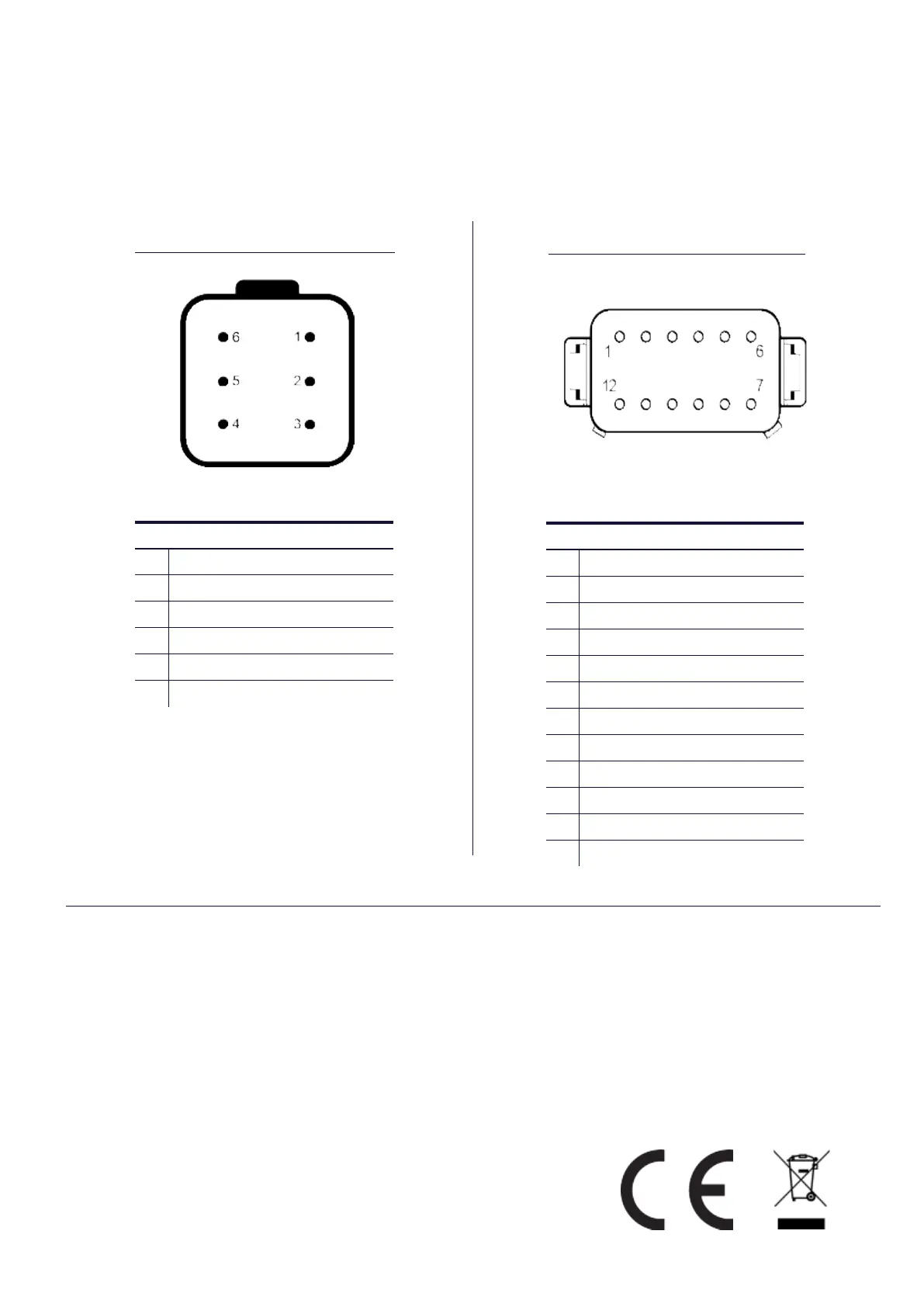

CONNECTOR
1 Ground
2 Power
3 CAN - H
4 CAN - L
5 Relay / Digital - OUT
6 Analogue - IN
CONNECTOR
1 Power -ve
2 Power +ve
3 RS232 TX (+)
4 RS232 TX (-)
5 RS232 RX (-)
6 RS232 RX (+)
7 CAN LO
8 CAN HI
9 J1708 / J1587A
10 J1708 / J1587A
11 Switched Output (261 only)
12 Not used
Important safety information and legal information
Under no circumstances shall Veethree or any of its subsidiary companies accept
liability for any loss of data, income, incidental damage or consequential losses
incurred as a result of the use of the product, howsoever caused.
Veethree operates a policy of continuous improvement. Veethree reserves the right
to alter and improve the Displays and software without prior notice.
CE EMC Directive 2004/108/EC
This product has been designed to be compliant with this directive. Compliance can
only be ensured by correct installation.
5. Safety information
