Veethree T Series User Manual

8 Installation Manual

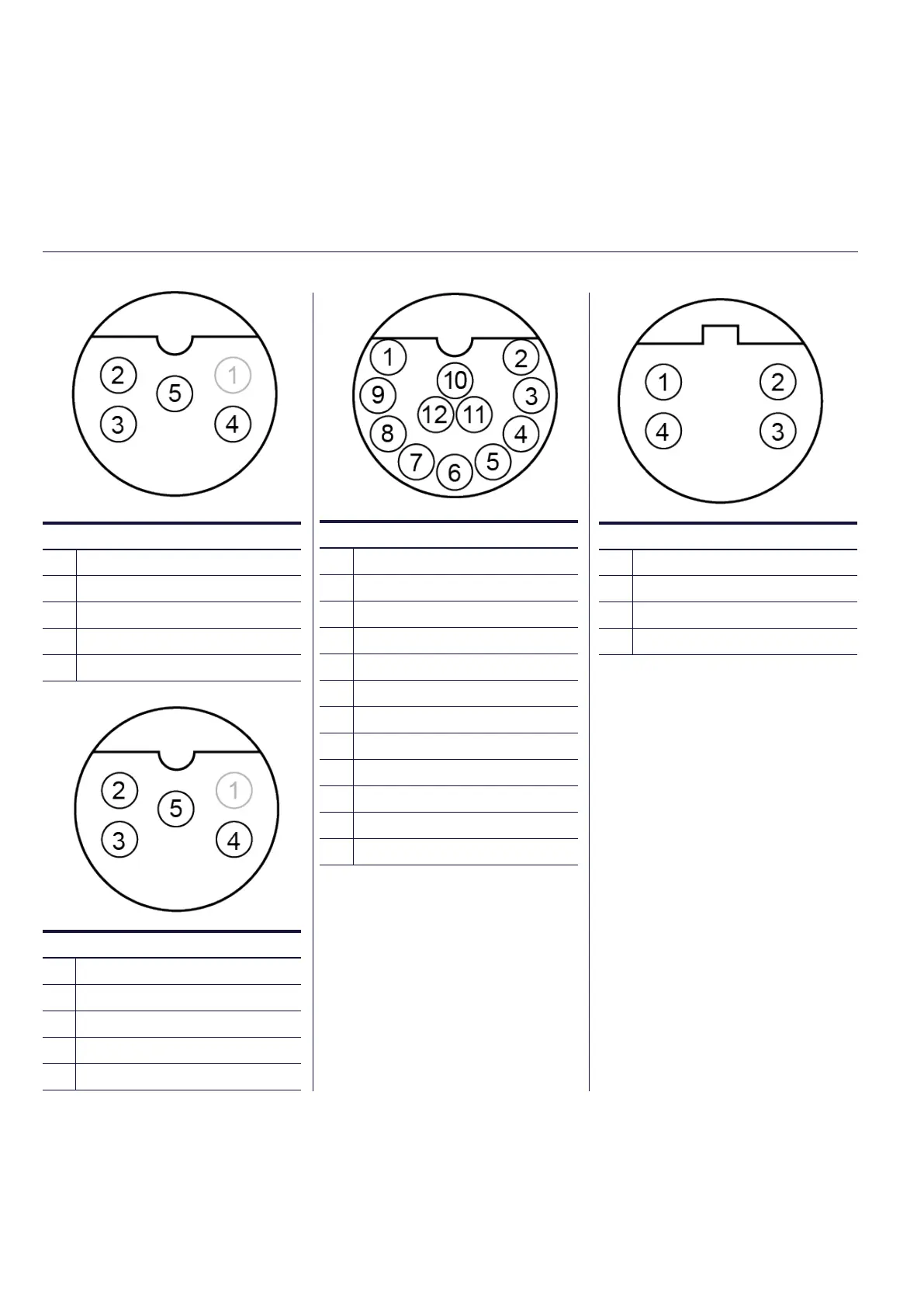

4. Connectors
CAN1
1 No Connection
2 Positive DC Supply
3 Ground
4 CAN Data H
5 CAN Data L
T7i
CAN2
1 No Connection
2 Isolated Volts Positive
3 Isolated Volts Negative
4 Isolated CAN Data H
5 Isolated CAN Data L
ETHERNET
1 White/Orange +TK
2 White/Green +RX
3 Orange - TX
4 Green
EXTERNAL USB IO
1 USB Volts Positive
2 USB Data Negative (DM)
3 USB Data Positive (DP)
4 No Connection
5 USB Volts Negative
6 RS422/485 Tx+*
7 RS422/485 Tx-*
8 RS422/485 Rx+*
9 RS422/485 Rx-*
10 Digital Input
11 Analogue Input
12 Relay Output
*RS422 and RS485 options
configured as a build option
