10 Installation Manual

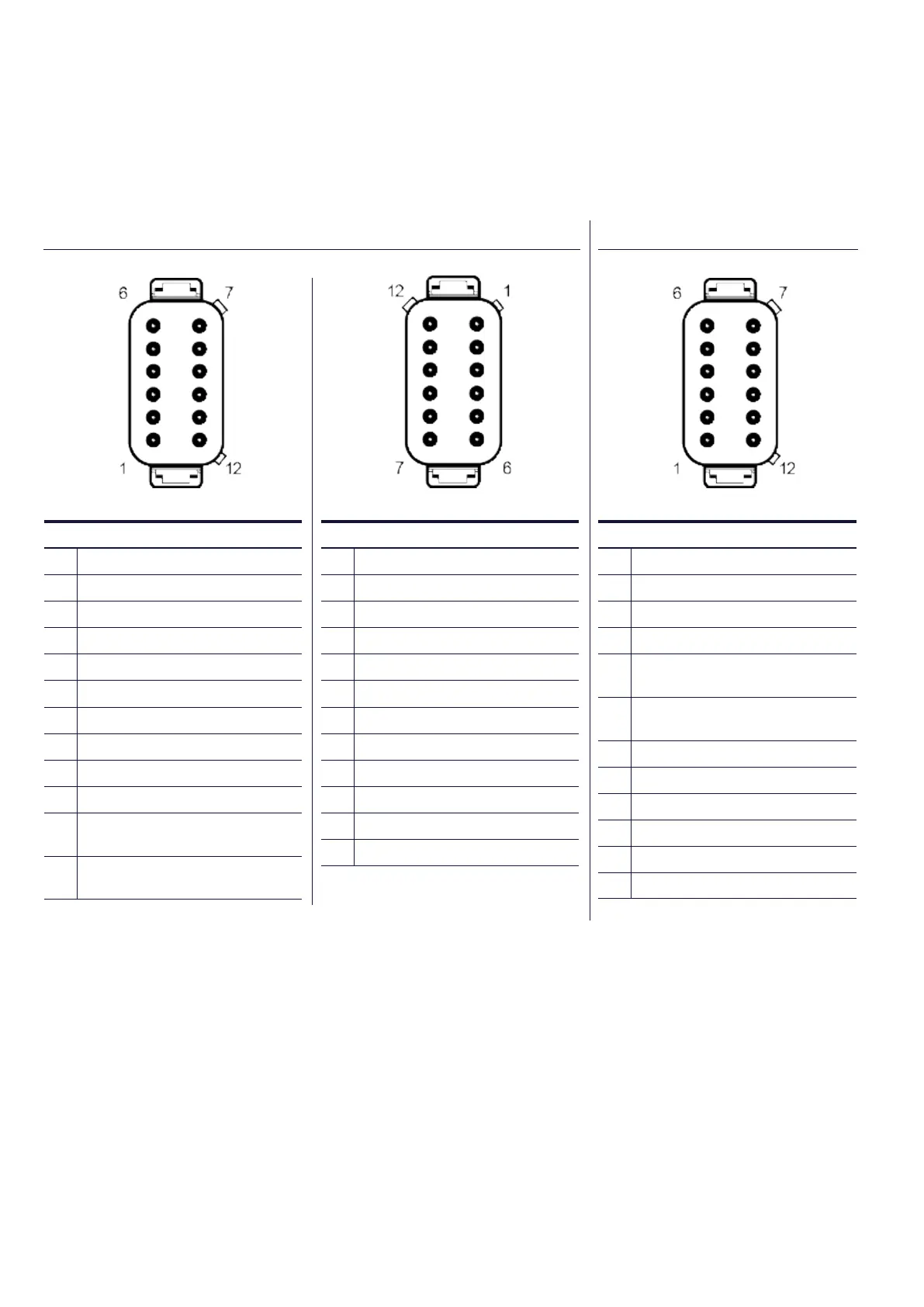

PRIMARY CONNECTOR
1 Ground
2 Power Input
3 Dimmer Input
4 Analogue in 1
5 CAN Ground
6 CAN Power
7 NMEA 2000 / J1939 - CAN H
8 NMEA 2000 / J1939 - CAN L
9 NMEA 0183+ (Differential)
10 NMEA 0183- (Differential)
11
Power Supply (Output for
GPS)
12
Ground Supply (Output for
GPS)
R3
SECONDARY CONNECTOR
1 Analogue - Ground
2 Digital Out 1 (Relay / Buzzer)
3 Analogue in 2
4 Analogue in 3
5 Analogue in 4
6 Analogue in 5
7 Analogue in 6
8 Digital Input 1
9 Digital Input 2
10 Digital Input 3
11 Digital Input 4
12
Frequency Input
PRIMARY CONNECTOR
1 Ground
2 Power Input
3 Relay Output 1
4 Relay Output 2
5
CAN Ground - isolated CAN
Supply (-)
6
CAN Power - isolated CAN
supply (+)
7 CAN H - isolated CAN Data H
8 CAN L - isolated CAN Data C
9 Relay Output 3
10 Relay Output 4
11 Primary CAN Data L
12
Primary CAN Data H
R3s
