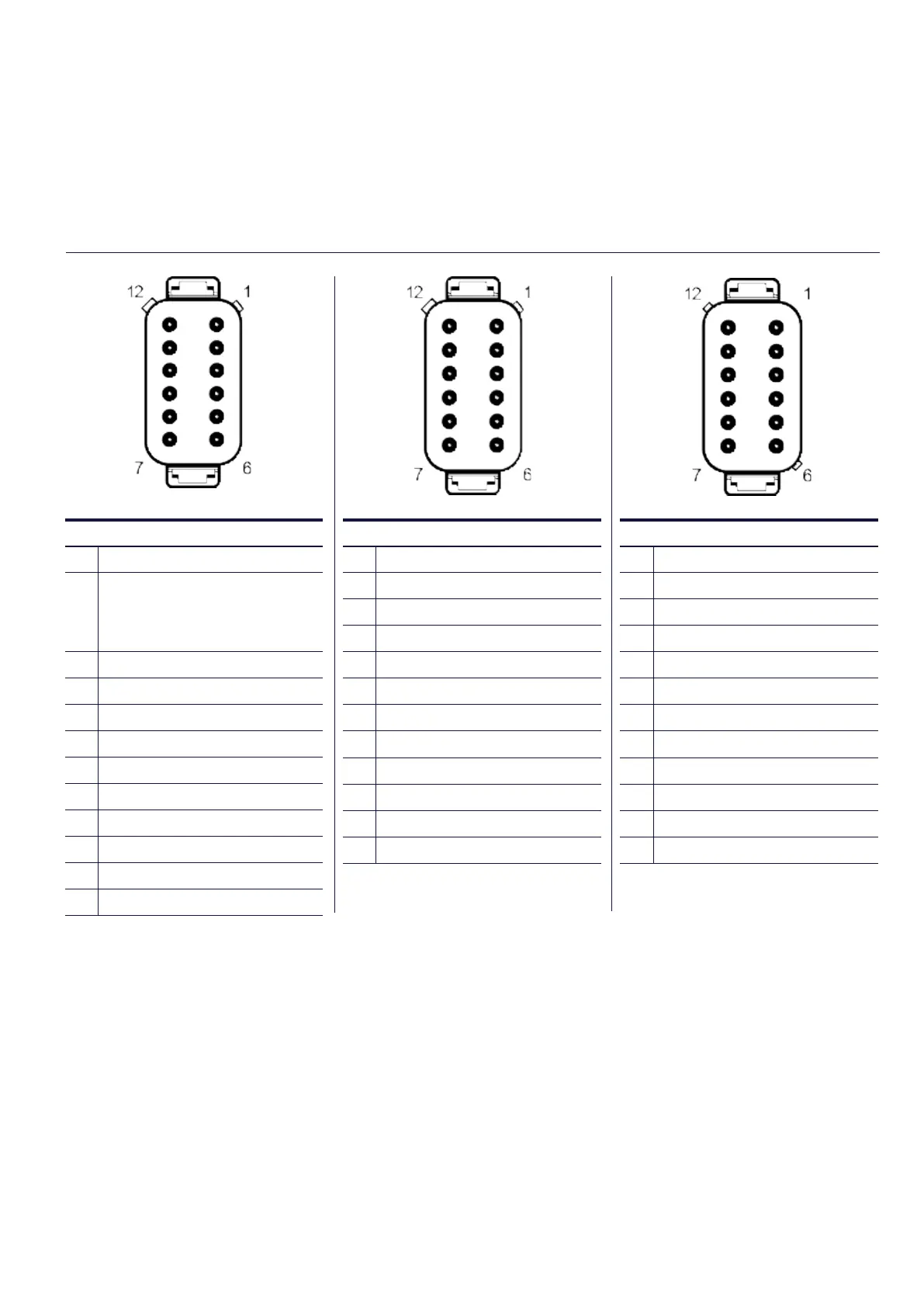

Veethree T7i - C7 Display Connectors

11veethree.com/support/templates/
SECONDARY CONNECTOR
1 Sensor 1 Analogue Input
2 Sensor 2 Analogue Input
3 Sensor 3 Analogue Input
4 Sensor 4 Analogue Input
5 Sensor 5 Analogue Input
6 Sensor 6 Analogue Input
7 Sensor 7 Analogue Input
8 Digital Input / Flow Sensor 1
9 Digital Input / Flow Sensor 2
10 Tachometer Input
11 RS232 Reciever
12 RS232 Transmit
TERTIARY CONNECTOR
1 Sensor 8 Analogue Input
2 Sensor 9 Analogue Input
3 Sensor 10 Analogue Input
4 Sensor 11Analogue Input
5 Sensor 12 Analogue Input
6 Sensor 13 Analogue Input
7 Sensor 14 Analogue Input
8 Digital Input / Flow Sensor 3
9 Relay / Solenoid Output 5
10 Relay / Solenoid Output 6
11 Relay / Solenoid Output 7
12 Relay / Solenoid Output 8
C7
PRIMARY CONNECTOR
1 Ground
2
Power (10-32V DC) Supply
should be protected by
500mA - rated circuit breaker
/ fuse
3 Relay / Solenoid Output 1
4 Relay / Solenoid Output 2
5 Isolated CAN Supply (-)
6 Isolated CAN Supply (+)
7 Isolated CAN Data H
8 Isolated CAN Data L
9 Relay / Solenoid Output 3
10 Relay / Solenoid Output 4
11 Primary CAN Data L
12 Primary CAN Data H
