Vega SP1180 User Manual

P.2

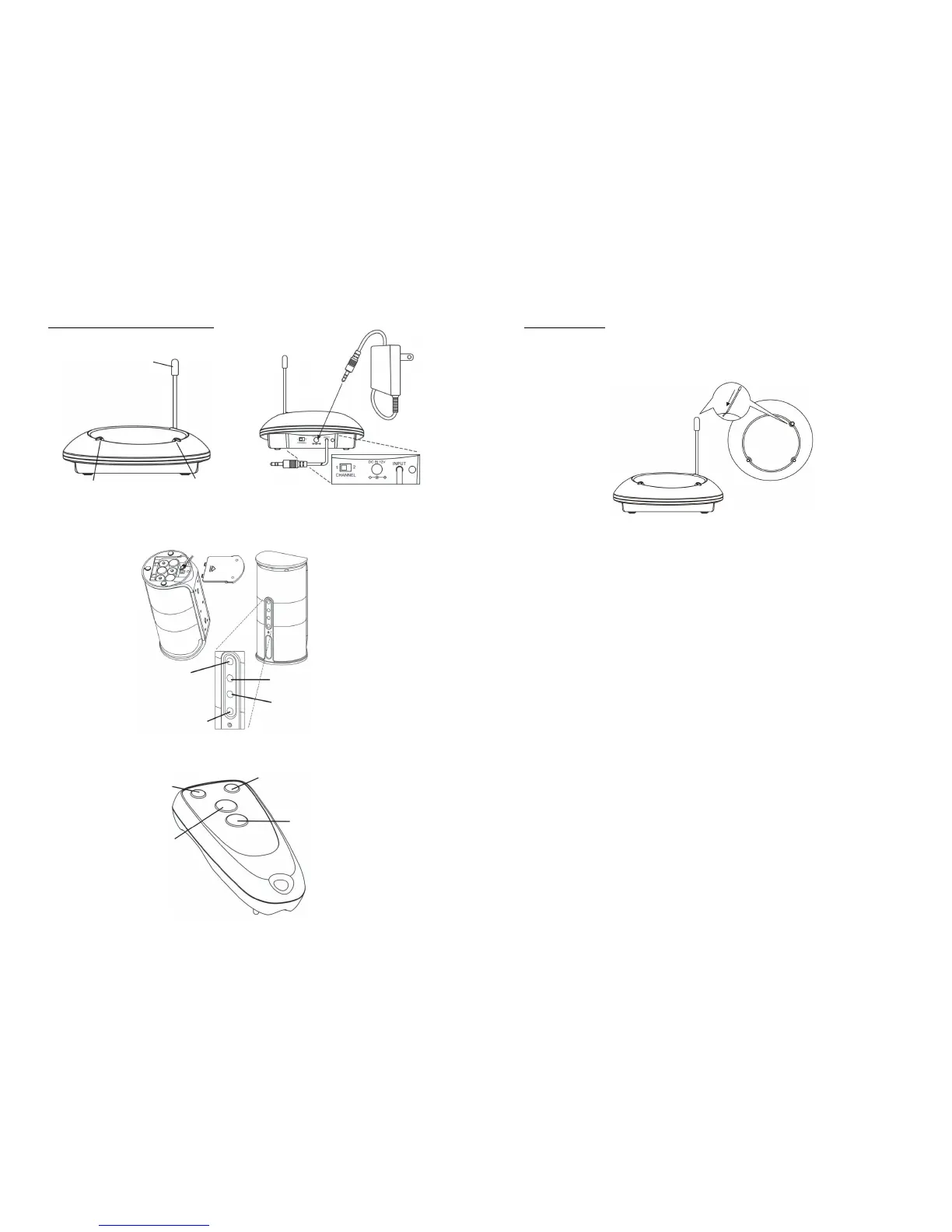

COMPONENT IDENTIFICATION
TRANSMITTER
SPEAKER RECEIVERS
REMOTE CONTROL
VOLUME UP
Signal On Indicator (blue)
Power On Indicator (red)
Antenna
AUTO TUNE
POWER ON/ OFF
VOLUME UP
VOLUME DOWN
AUTO TUNE
VOLUME DOWN
POWER ON/ OFF
VOLUME UP
P.3
INSTALLATION
TRANSMITTER
1. Insert the antenna tube into the antenna wire.
2. Connect the supplied AC/DC power adaptor to an electrical wall outlet.
3. Plug the AC/DC power adaptor in the DC jack located on the rear of the
transmitter.
4. When the AC adapter is plugged in, the red POWER LED illuminates. If the red
POWER LED does not illuminate, make sure the adapter is plugged in.
5. The rear of the transmitter has one audio cord that can be connected to audio
output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or
to headphone/earphone jack with the connector provided.
When the transmitter received an audio signal, the blue SIGNAL LED and the red
POWER LED will illuminate together. If the blue SIGNAL LED does not illuminate,
ensure the audio source is turned on.
SPEAKER RECEIVERS
1. Insert 6 pieces ‘C’ size ALKALINE battery into the battery compartment with
correct polarity at the bottom of each speaker (batteries not included in the
package) or connect the 9V power adaptor to the DC input jack on the bottom of
each speaker, then plug it to the wall AC outlet.

Vega SP1180 Specifications

Transmission

transmission mode	UHF
carrier frequency	863 MHz Digital Hybrid

Power

operation voltage (transmitter)	DC 12.5V 150mA
speakers power source	6 X ‘C’ size Alkaline batteries or DC 9V 1.5A adaptor
remote control unit power source	2 X ‘AAA’ size batteries

Audio

frequency response	40Hz – 12KHz
distortion	1%
S/N ratio	65dB (typical)

Performance

operation distance	Up to 100 meters
speakers	2-way
output power	2 x 5 Watts
