Veho VMS-001 User Manual

How to use measurement & calibration function
1 Point the microscope onto a target object e.g. a ruler; rotate the focus
wheel to get a clear focus.
2 When the focus at the clearest point, take a snapshot

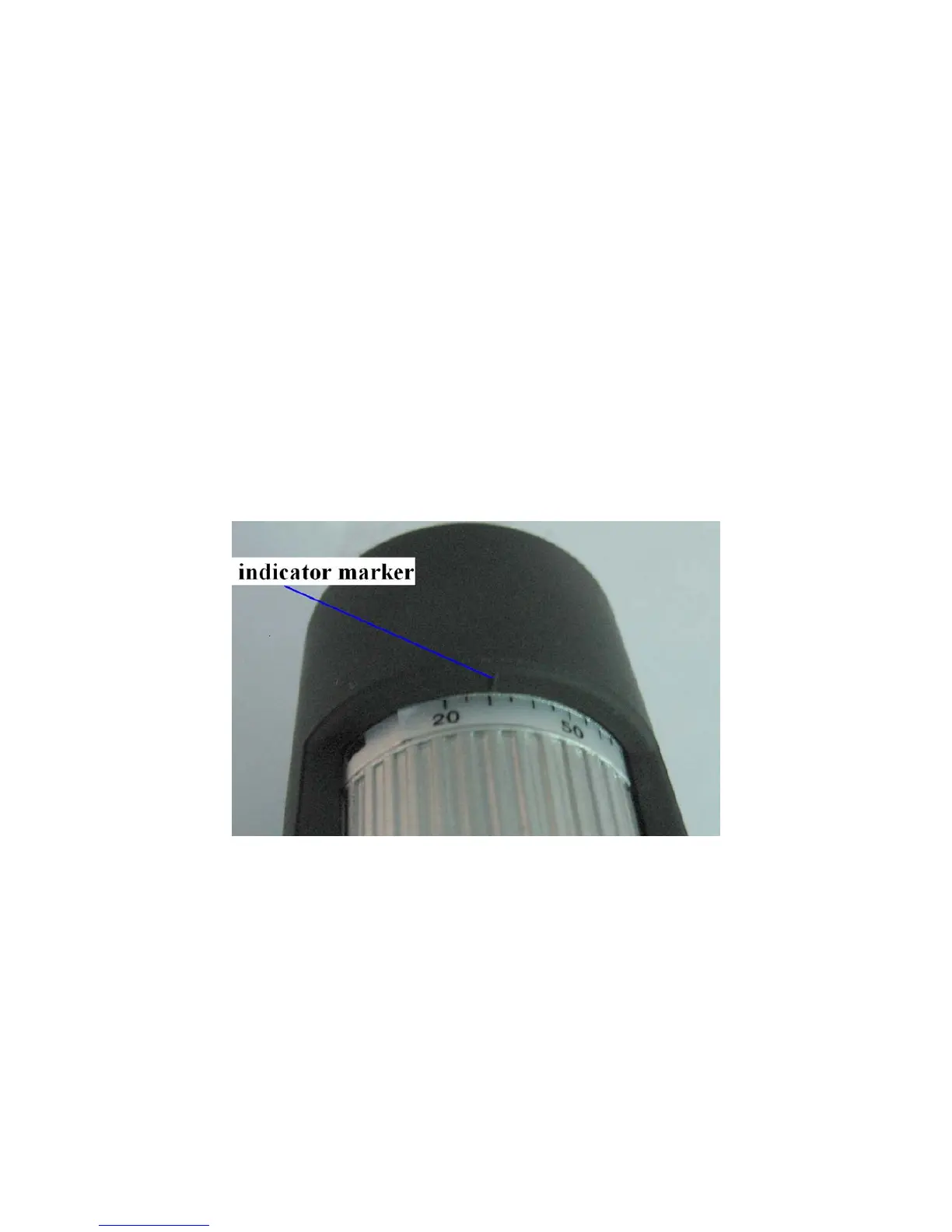

3 Watch the calibration at the lower-end of the focus wheel; note down
the magnification value that corresponds to the indicator marker on
the microscope body as shown below. That value is the magnification
at which the focus was set and the image taken. (This is very
important, since only with the magnification ratio noted down can the
object size be worked out at later steps!!)
4 Open the captured photo double clicking on the thumbnail. A preview
window will open

Veho VMS-001 Specifications

General

Product color	Black
Microscope type	Digital microscope
Maximum magnification	200 x
Megapixel	1.3 MP
Interface	USB 2.0
Compatible operating systems	Windows 2000, XP, Vista 32bit and 64bit , Windows 7, Windows 8, Mac OS X 10.5+
Power source	USB
